Marshall V-R231P-AFHD 23 inch High Res Rack Mount LCD Monitor with Pixel to Pixel Native Resolution

Item Currently Unavailable

Back to Marshall Rack Mount LCD Monitors

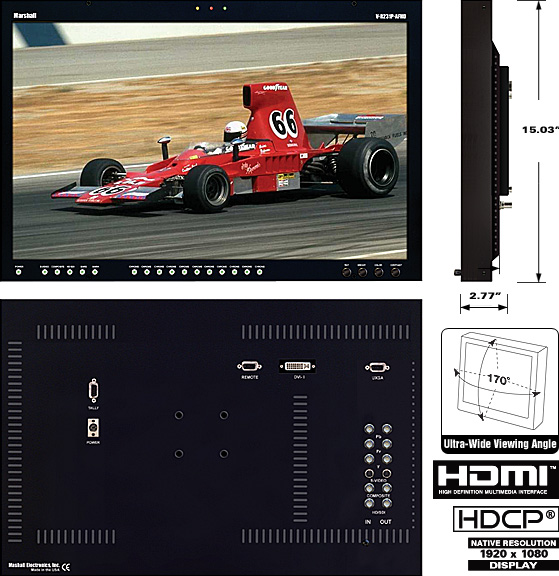

Click For Larger Image

OVERVIEW - Marshall vr231pafhd 23 inch High Res Rack Mount LCD Monitor with Pixel to Pixel Native Resolution:

The Marshall V-R231P-HD includes our universal input configuration and does not require any adapter boxes or expensive options. Standard inputs include active loop through on each connection for HDSDI/SDI, Y/C, and composite video with PAL/NTSC automatic recognition. There is also a multiformat connector for HD or SD analog component signals in addition to DVI-I.

If you have computer graphic applications, this unit also has a scaleable WUXGA input. Additional features include, remote control, setup memory, Zoom function, 6 Frame Marker Overlays and direct 1.85 : 1 2 : 1 2.35 : 1 access for adjustment and selection functions.

FEATURES - Marshall VR231PAFHD 23 inch Rack Mount LCD Monitor with Pixel to Pixel Native Resolution:

• Totally Digital WUGA 6.9 Megapixel 1920 x 1200 display
• Custom LSI and ASIC technology with RISC processor
• Native HD/SD screen formats (640, 720, 1080 vertical lines) in TFT Pixel-to-Pixel mode
• WUXGA native resolution for computer graphics applications
• 16.7 million colors
• CRT style viewing radius - 176° in any direction provides superior visibility when the viewer is not directly in front of the screen
• Brightness of 250 candelas per square meter (cd/m²) luminance produces enhanced image quality
• 500:1 contrast ratio with response rates less than 15 ms results in excellent quality for moving images
• 4:3 and 16:9 screen aspect ratios for DTV applications in HD and SD formats Pixel-to-Pixel mode
• Standard Multiformat inputs: HDSDI (all formats) SDI (ITU-R BT601 format) Component Analog HD/SD Composite Video PAL/NTSC WUXGA Computer DVI-I (Analog or Digital)
• Cable compensation for analog signals with AGC
• All analog signals internally converted to 24 bit component digital (ITU-R BT656) with 5 line adaptive filter
• Advanced scaling of all formats using 4 x 4 pixel interpolation with Gamma Correction
• Mono display (Black and White)
• Blue Screen for color bar adjustment
• 6 Frame Marker Overlays with Center Mark

SPECIFICATIONS - MARSHALL V-R231P-AFHD RACK MOUNT LCD MONITOR:

• Display (Viewing Area) 23” (13.30” x 10.63”)
• Resolution (Pixels) 1920 H x RGB x 1200 V
• Dot Pitch 0.258 mm square
• Brightness (in cd/m²) 250 cd/m²
• System NTSC/PAL auto rec
• Inputs HD-15 (VGA, SVGA, XGA, SXGA, RGBHV, YUV, Y-Pr-Pb) 75Ù, BNC for HDSDI/SDI (PAL/NTSC) 75Ù BNC for Composite Video (PAL/NTSC) 75Ù with GC, 4 Pin Mini Din for S-Video (Y/C), 27 Pin DVI-I Single link, HDMI
• Dimensions 20.88”W x 15.03”H x 2.77”D
• Approx. Weight 15 lbs
• Power Consumption 24VDC/70Watt, 5.0Amps max - UL Class 2 Supply included

Manufacturer Homepage: www.lcdracks.com
