Marshall V-R25P-SDI Ten 2.5 inch LCD Screen Rack Mount Panel with SDI Input

Our Price $3449.99 Including 3 - 5 Day Shipping

Back to Marshall Rack Mount LCD Monitors

Click For Larger Image

OVERVIEW - Marshall vr25psdi Ten 2.5 inch LCD Screen Rack Mount Panel with SDI Input:

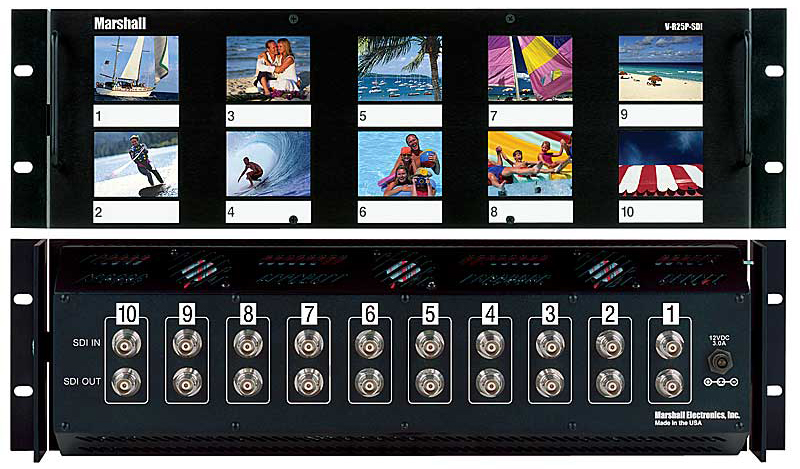

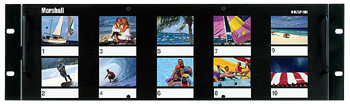

The Marshall V-R25P-SDI is a rack mountable unit that has ten 2.5” active matrix LCD panels with SDI input and active reclocked loop through capability. These 2.5” panels have 480 x 234 pixels producing a true high resolution image. This unit, as well as all Marshall rack mounted panels has a unique feature that allows the unit to tilt up or down for optimum viewing angle. The unit fits into an EIA standard 19” rack, 3U high.

Each screen has NTSC/PAL auto-signal recognition. If there is no video signal present, a blue screen will appear. Unit is turned on and off by using the small toggle switch located on the side of the unit and is accessed by tilting the unit down. The unit includes power supply, instructions and dry erase marker for labeling screens.

FEATURES - Marshall VR25PSDI Ten 2.5 inch Rack Mount Lcd Panel with SDI Input:

• High Resolution, 480 × 234 pixels, 112,320 total pixels
• Ten SDI Inputs with reclocked loop through feature
• Automatic NTSC/PAL Video Signal Detection, screen will turn blue with the absence of input signal
• Unique 180 degree tilt adjustment while mounted in rack
• Small and lightweight: 3U high, only 6.7cm deep and weighted 2.27kg
• Dry Erase Marker for EZ Identifying of screens is included

SPECIFICATIONS - MARSHALL V-R25P-SDI RACK MOUNT LCD PANEL:

• Display (Viewing Area) 2.5" (1.97" × 1.48")
• Resolution (Pixels) 480 H × 234 V
• Dot Pitch 0.105mm × 0.16mm
• Brightness (in cd/m²) 250 cd/m²
• System NTSC/PAL auto recognition
• Inputs per panel (total) 1(10) SDI with reclocked loop through
• Dimensions 19.12"W × 5.14"H × 2.65"D
• Approx. Weight 5 lbs
• Power Consumption 2VDC, 5.0 Amps

Manufacturer Homepage: www.lcdracks.com
