Marshall VR-28P-SDI 2 inch 8 LCD Screen Rack Mount Panel with Automatic NTSC / PAL Signal Detection

Our Price $2673.99 Including Shipping

Back to Marshall Rack Mount LCD Monitors

KEY POINTS - Marshall vr28psdi 2 inch 8 lcd screen rack mount panel with automatic NTSC / pal signal detection:

Eight displays in 1U - small footprint

High Resolution, 480 x 240 dots, or RGB pixels

Automatic NTSC/PAL Signal Detection for each display

Each display accepts an SDI-4:2:2 signal with re-clocked outputs

90 degree tilt provides excellent viewing characteristics

All inputs automatically terminate

Includes V-PS12-5V-1 Universal voltage power supply

SUMMARY - Marshall vr28psdi 2 inch 8 LCD Screen Rack Mount Panel with Automatic NTSC / PAL Signal Detection:

The Marshall V-R28P-SDI includes all hardware for rack mount applications and features eight 2 inch TFT active matrix LCD displays that accept composite inputs. Each display is a matrix of 480 x 240 dots and produces true high-resolution images. The V-R28P-SDI also has the ability to tilt up or down for optimum viewing angle and installs into a EIA standard 19 inch rack, like all Marshall rack mounted displays. Each display features automatic recognition of NTSC/PAL signals and signals may be interspersed on the eight screens. A blue screen will be displayed indicating signal loss. The power on/off toggle switch is located on the rear of the unit. Power supply, and manual are included.

DETAILED SPECS - MARSHALL V-R28P-SDI 2 INCH 8 LCD SCREEN RACK MOUNT PANEL WITH AUTOMATIC NTSC / PAL SIGNAL DETECTION:

SPECIFICATIONS
Display (Viewing Area)	2.0" (1.62"W x 1.24"H) (41.1mm x 31.5mm) (4:3 Aspect Ratio)
Resolution (Dots)	480H x 240W
Dot Pitch	0.083 x 0.1245 mm
Number of Colors	65,000
Brightness (in cd/m²)	250
Contrast Ratio	250 : 1
System	NTSC/PAL auto detect
Inputs	1 per display (V-R28P Composite)
Outputs (Loop Through)	1 Active Per display
Dimensions	19.12"W x 1.64"H x 2.5"D (48.56cm x 4.16cm x 63.50cm)
Approx. Weight	6 lbs (2.7kg)
Power Consumption	12VDC, 3.0Amps peak

Manufacturer Page: www.lcdracks.com

marshall vr28psdi lcd rack display v-r28p-sdi

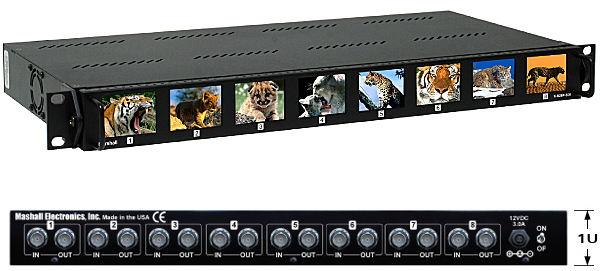

Click for Larger Image
