Marshall V-R35P-SDI 3.5 inch 10 LCD Screen Rack Mount Panel with Automatic NTSC / PAL Signal Detection

Our Price $3443.99 Including Shipping

Back to Marshall Rack Mount LCD Monitors

KEY POINTS - Marshall vr35psdi 3.5 inch 10 lcd screen rack mount panel with automatic NTSC / pal signal detection:

High Resolution 320 × 234 pixels

Self-Terminated Composite Video Inputs with active loop-through

Automatic NTSC/PAL Video Signal Detection screen

90 degree tilt adjustment while mounted in rack

Based off the successful and award-winning V-R25P LCD rack

SUMMARY - Marshall vr35psdi 3.5 inch 10 LCD Screen Rack Mount Panel with Automatic NTSC / PAL Signal Detection:

The Marshall V-R35P-SDI is a rack mounted unit that has ten 3.5 inch active matrix LCD panels and accepts SDI inputs (ITU-R601) with re-clocked loop-through capability. This unit has a unique feature that allows the unit to tilt up or down for optimum viewing angle. The unit fits in an EIA standard 19 inch rack, three rack spaces high. Each of the ten screens has auto-signal recognition and auto PAL/NTSC recognition built-in. A blue screen will appear in the event of a signal loss. The Marshall V-R35P-SDI also comes complete with a power supply.

DETAILED SPECS - MARSHALL V-R35P-SDI 3.5 INCH 10 LCD SCREEN RACK MOUNT PANEL WITH AUTOMATIC NTSC / PAL SIGNAL DETECTION:

SPECIFICATIONS
Display (Viewing Area)	3.5" (.81" × 1.56")
Resolution (Pixels)	320 H × 234 V
Dot Pitch	0.105mm × 0.161mm
Brightness (in cd/m²)	250
System	NTSC/PAL auto recognition
Inputs per panel (total)	1(10) - SDI with re-clocked loop-through
Dimensions	18.96"W × 5.2"H × 2.5"D
Approx. Weight	5 lbs
Power Consumption	12 VDC, 3.0 Amps

Manufacturer Page: www.lcdracks.com

marshall vr35psdi lcd rack display v-r35p-sdi

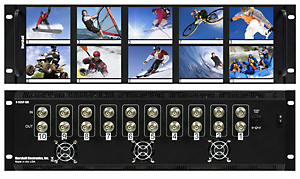

Click for Larger Image
