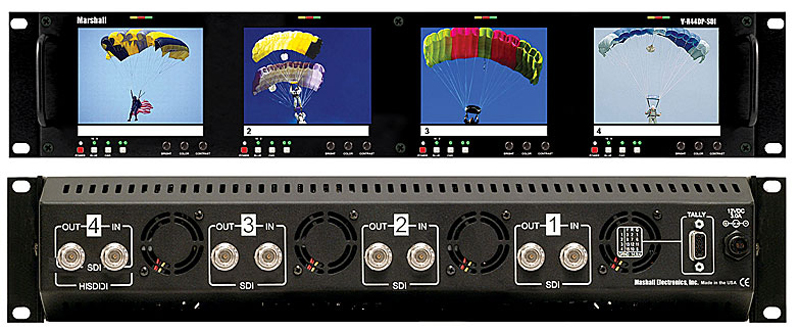

Marshall VR44DPSDI Rack Mount Lcd Monitor marshall v-r44dp-s

KEY POINTS - VR44DPSDI Marshall Four Screen SDI monitor set with advanced definition LCD displays:

Four 3.5-inch Advanced Definition 4:3 screens

100% digital processing

High resolution scaling of all images

Wide viewing radius - 130 horizontal and 120 vertical provides superior visibility when the viewer is not directly in front of the screen

380 candelas per square meter (cd/m) luminance produces enhanced image quality in varying light and viewing conditions

400:1 ratio of contrast between black and white luminance values with response rates less than 30 ms results in excellent quality for moving images

4:3 and 16:9 screen aspect ratios for DTV applications

Works with all SMPTE/ITU SDI production formats and frame rates

Blue Gun for color adjustment

Standard Digital inputs:

SDI (ITU-R BT601 format-525i, 625i

Re-clocked and shaped output of all input signals

Easy to see three color tally indicators

Ready to mount in 19 inch rack out of the box

DETAILED SPECS - MARSHALL V-R44DP-SDI FOUR SCREEN SDI MONITOR SET WITH ADVANCED DEFINITION LCD DISPLAYS:

Number of Screens: 4

Display (Viewing Area): 3.5” diagonal (2.83”H × 2.07”V) (72.0mm x 52.56mm)

Viewing Angles: 100°H x 50° V

Screen Colors (Bit Depth): 262,000 (18 Bit)

Color Gamut: SMPTE-C 72%

Screen Treatment: Anti Glare

Backlight: White LCD (10,000 hour life) (Field Replaceable)

Tally System: Separate Red, Green, Amber per display-GPI or TTL Low active

Color Temperature: D-65

Resolution (Dots): 640H × 480V (921,600 pixels RGB)

Dot Pitch: 0.1125 mm (W) x 0.1095mm (H)

Contrast Ratio: 350:1

Pixel Response: <30ms typical

Brightness (in cd/m²): 250 cd/m²

System: SDI / SMPTE259M / ITU-R BT601

Dimensions: 19.12”W x 3.5”H x 2.5”D (48.6cm x 130.5cm x 63.5cm)

Approx. Weight: 5 lbs

Power Consumption: 12VDC/10 watts. – (5.5 Amps max - UL Class 2 supply included)

Operating Temperature: 0° C to 60° C

Input/Output per screen: SDI with re-clocked output (BNC)

Marshall VR44DPSDI Four Screen SDI monitor set with advanced definition LCD displays
