Marshall V-R44P-SDI Four 4 inch LCD Screen Rack Mount Panel with SDI Input

Our Price $1749.99 Including 3 - 5 Day Shipping

Back to Marshall Rack Mount LCD Monitors

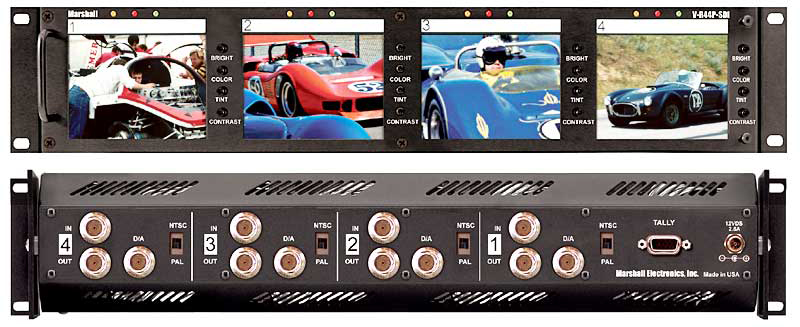

Click For Larger Image

OVERVIEW - Marshall vr44psdi Four 4 inch LCD Screen Rack Mount Panel with SDI Input:

Introducing the worlds smallest 4” quad rackmount with SDI inputs! The Marshall V-R44P-SDI is a rack mountable unit that offers four 4" high-resolution active matrix LCD panels. Each of the four 480 x 234 pixel screens has its own set of controls for color, tint, contrast, and brightness.

Each panel also has a SDI input with active loop through feature, a D/A converter, a self-powered 3 color tally system and is switchable for NTSC or PAL formats. This unit is only 2U high, and can be tilted up to 90 degrees while rack mounted, making it the smallest video monitoring system of it's kind. All V-R Series models are constructed of steel and aluminum, and include power supply and owners manual.

FEATURES - Marshall VR44PSDI Four 4 inch Rack Mount Lcd Panel:

• Ultra-compact design fits in EIA standard rack 2U high
• High Resolution, 480 x 234 pixels, 112,320 total
• Four SDI to composite video converters (one per channel) built-in
• SDI active loop through with active clock recovery and automatic 75W termination
• Ultra bright panels with 300 candle luminance each
• Switchable for NTSC/PAL formats
• Individual color, tint, brightness and contrast controls for each panel
• Three color, self-powered tally system provided for each panel
• Unique 100 degree tilt adjustment while mounted in rack
• Dry Erase Marker for EZ Identifying of screens is included

SPECIFICATIONS - MARSHALL V-R44P-SDI RACK MOUNT LCD PANEL:

• Display (Viewing Area) 4" (3.23" × 2.43")
• Resolution (Pixels) 480 H × 234 V
• Dot Pitch 0.171mm × 0.264mm
• Brightness (in cd/m²) 300 cd/m²
• System NTSC/PAL config. switch
• Inputs per panel (total) 1 (4) SDI
• Dimensions 19.125"W × 3.43"H × 1.9"D
• Approx. Weight 4 lbs
• Power Consumption 12 VDC, 3.5 Amps

Manufacturer Homepage: www.lcdracks.com
