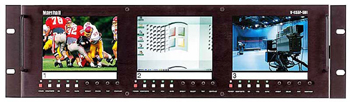

Marshall V-R53P-SDI Triple 5” Rack Mounted LCD Panel with 10-bit SDI Input

Our Price $3063.99 Including 3 - 5 Day Shipping

Back to Marshall Rack Mount LCD Monitors

Click For Larger Image

OVERVIEW - Marshall vr53psdi Triple 5” Rack Mounted LCD Panel with 10-bit SDI Input:

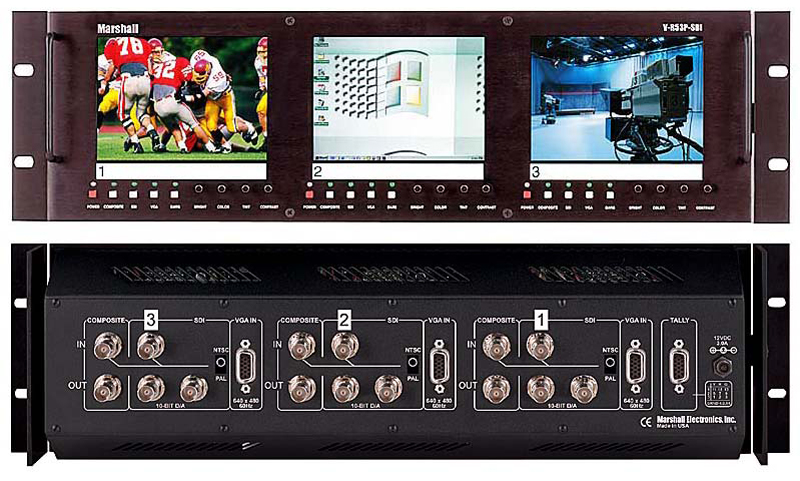

The Marshall V-R53P-SDI is a rack mountable unit that has three independently controlled 5" active matrix LCD panels with active loop through feature. These 5” panels have 960 x 234 pixels producing a true high resolution image. Each monitor has a composite video, SDI, and a VGA input.

Each of the three screens also has a built-in color bar generator, individual front mounted selector buttons with LED indicators and color, tint, brightness and contrast controls. The unit fits into a EIA standard 19" rack, 3U high. In addition to the digital and analog loop through features, this unit also has a 10-bit converted output from the digital input. The unit includes power supply and dry erase marker and is available in either NTSC or PAL format.

FEATURES - Marshall VR53PSDI Rack Mount LCD Panel:

• High Resolution, 960 × 234 pixels, 224,640 total
• 3 High Resolution 10-bit SDI to Composite Video converters (one per panel) built-in
• Three inputs per monitor: Composite Video, SDI (SMTPE 259M) and VGA (640 x 480)
• SDI active loop through has active clock recovery with automatic 75W termination
• Auto Signal Detection, blue screen appears when signal is not present
• Built-in memory saves current setup when unit is powered down
• Built-in Color Bar Generator
• Individual color, tint, brightness and contrast controls for each panel
• Unique 180 degree tilt adjustment while mounted in rack
• Dry Erase Marker for EZ Identifying of screens is included

SPECIFICATIONS - MARSHALL V-R53P-SDI RACK MOUNT LCD PANEL:

• Display (Viewing Area) 5" (4.75" × 2.95")
• Resolution (Pixels) 960 H × 234 V
• Dot Pitch 0.107mm × 0.320mm
• Brightness (in cd/m²) 350 cd/m²
• System NTSC/PAL config. switch
• Inputs per panel (total) 1 (3) Composite 1 (3) SDI 1 (3) VGA
• Dimensions 19.125"W × 5.14"H × 2.5"D
• Approx. Weight 5 lbs
• Power Consumption 12V, 2.0 Amps
