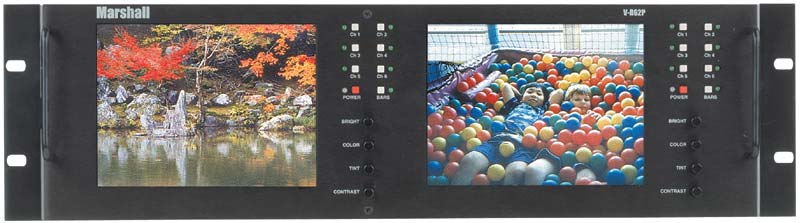

Marshall VR62P Dual 6.4 inch LCD Rack Mount Panel

• High Resolution, 960 × 234 pixels, 224,640 total
• Six channel internal router (6 × 2) and sequential switcher
• Ultra bright 210 candle luminance
• Allows 90 degrees of tilt while mounted in rack
• Built-in automatic signal recognition
• Low power consumption and heat dissipation for mobile applications
• Fits in standard 19" rack, 3 spaces high
• Program outputs on each monitor
• Individual color, tint, brightness and contrast controls
• Built-in Color Bar Generator
• Unit weighs approximately 5 lbs.

The vr62p is a rack mounted unit that has two 6.4” active matrix LCD panels. These panels have 960 × 234 pixels making them a true high resolution video Lcd panel. The unit has a 6 × 2 router and sequential switcher with loop through capability. The two program outputs route the signal appearing on the screen to another monitor. Any of the six channels can appear on one or both of the monitors simultaneously. The unit fits into an EIA standard 19” rack, three rack spaces high. Each of the screens has a built-in color bar generator, individual front mounted selector buttons with LED’s and color, tint, brightness and contrast controls. Unit comes complete with power supply and is available in either NTSC or PAL format.
