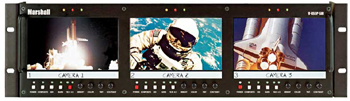

Marshall V-R63P-SDI Triple 5.8” Rack Mounted LCD Panel with 10-bit SDI Input

Our Price $2899.99 Including 3 - 5 Day Shipping

Back to Marshall Rack Mount LCD Monitors

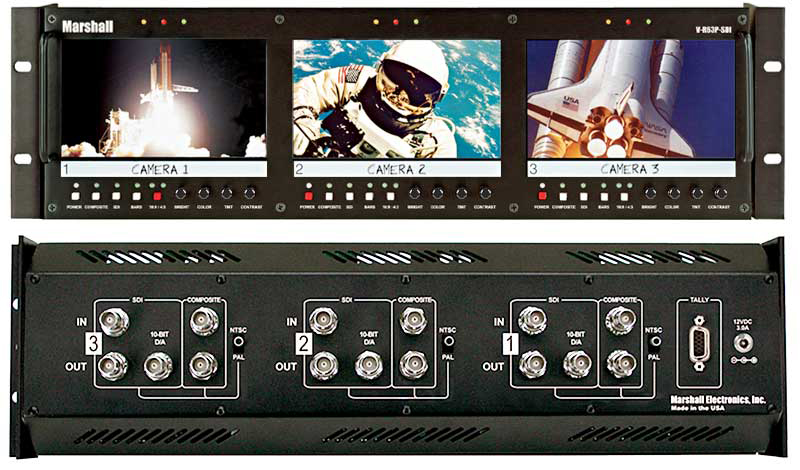

Click For Larger Image

OVERVIEW - Marshall vr63psdi Triple 5.8” Rack Mounted LCD Panel with 10-bit SDI Input:

The Marshall V-R63P-SDI is a rack mountable unit that has three independently controlled 5.8" active matrix LCD panels with active loop through feature. These 16:9 high-resolution panels have a pixel count of 1200 x 234, and are rated at a very bright 350 candle luminance. Each panel has an SDI and a composite video input with a NTSC/PAL switch on the back.

Each of the three screens has a built-in color bar generator, controls for color, tint, contrast, and brightness, and selectable aspect ratio of 16:9 or 4:3. A built-in 3 color tally system is also provided for each screen. The unit includes power supply, manual and fits into any standard EIA 19" rack, at only 3U high.

FEATURES - Marshall VR63PSDI Triple 5.8” Rack Mount LCD Panel:

• High Resolution LCD panel, 1200 × 234 pixels, 280,800 total
• Ultra bright 350 candle luminance
• Switchable 4:3 and 16:9 ratios
• Two inputs per monitor: Composite Video and SDI (SMPTE 259M)
• 3 High Resolution 10-bit SDI to composite video converters (one per channel)
• NTSC/PAL switchable via switch on rear of the unit
• SDI active loop through has active clock recovery with automatic 75 W termination
• Three color, self-powered tally system provided for each panel
• Individual color, tint, brightness and contrast controls for each panel
• Built-in memory saves current setup when unit is powered down
• Built-in Color Bar Generator
• Unique 100 degree tilt adjustment while mounted in rack

SPECIFICATIONS - MARSHALL V-R63P-SDI RACK MOUNT LCD PANEL:

• Display (Viewing Area) 5.8" (5.01" × 2.83")
• Resolution (Pixels) 1200 H × 234 V
• Dot Pitch 0.318mm × 0.307mm
• Brightness (in cd/m²) 350 cd/m²
• System NTSC/PAL config. switch
• Inputs per panel (total) 1 (3) Composite 1 (3) SDI
• Dimensions 19.125"W × 5.14"H × 2.5"D
• Approx. Weight 5 lbs
• Power Consumption 9 VDC, 3.0 Amps

Manufacturer Homepage: www.lcdracks.com
