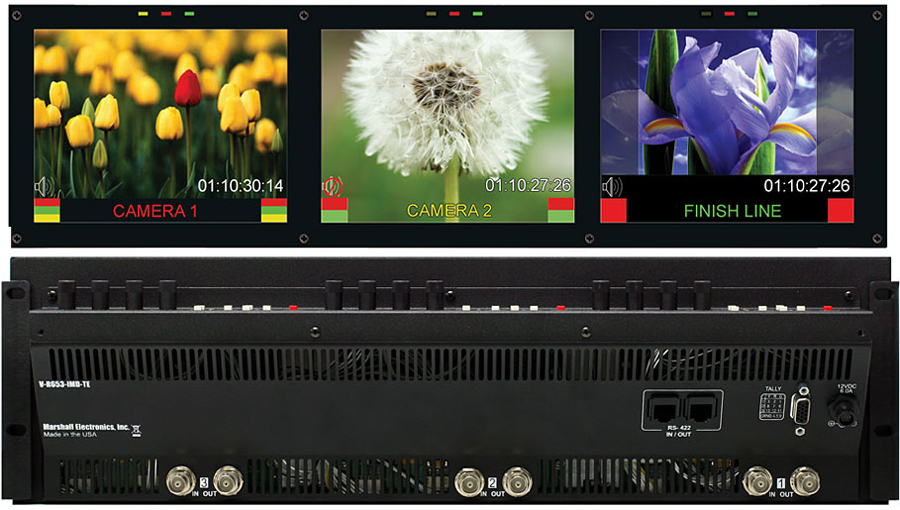

MARSHALL VR653SBIMD Triple 6.5 Inch Outdoor HD Rack Mountable LCD Monitor
KEY POINTS - VR653SBIMD Marshall Triple 6.5 Inch Outdoor HD Rack Mountable LCD Monitor:
No need for external Under Monitor Display - "all-in-one" In-Monitor Display solution without added depth
Supports the following protocols: Image Video / NVISION / TSL / MEI
High Resolution 1024 x 768 RGB Dots with 2.4 million pixels and 16.7 million colors
New unique RotoMenu™ for fast, direct, and easy menu navigation
5 Year / 50,000 hour backlight life
High resolution scaling / high quality deinterlacing
650 cd/m˛ luminance produces enhanced image quality in varying light and viewing conditions
500:1 ratio of contrast between black and white luminance values
Three-color on-screen "soft" tally indicators (Red / Green / Amber)
Three LED color tally indicators (Red / Green / Amber)
On-Screen Audio Presence Indicator and On-Screen Video Time Code
RS-422 / 485 connection with loop-through for control communication / IMD functionality
Field upgradeable firmware capability via RS-422 / 485 port
Direct access for adjustments of brightness, contrast, and color
Multiple Frame Marker Overlays with Center Mark
Pixel-to-Pixel mode / Blue Gun for color adjustment / Adjustment Settings Memory
SUMMARY - Marshall vr653sbimd Triple 6.5 Inch Outdoor HD Rack Mountable LCD Monitor:
Marshall Electronics introduces the industry's first full lineup of LCD panels with In-Monitor Display functionality. The new V-R653SB-IMD triple HD / SD 6.5 monitor set is a cost-effective "all-in-one" solution for post production houses, broadcasters, and mobile units. This fully-integrated approach eliminates the need for additional or separate Under Monitor Displays and allows UMD information and tallies to be displayed directly within a Marshall flat panel monitor, while saving precious rack space. A variety of features are readily available including on-screen Video Time Code, three-color "Soft" Tallies, and Audio Presence Indicator. This Marshall IMD display also introduces our new RotoMenu™ feature which allows fast, direct, and easy menu navigation.
DETAILED SPECS - MARSHALL VR653SBIMD TRIPLE 6.5 INCH OUTDOOR HD RACK MOUNTABLE LCD MONITOR:
