Marshall V-R682P Dual 6.8 inch LCD Rack Mount Panel

no longer available

Back to Marshall Rack Mount LCD Monitors

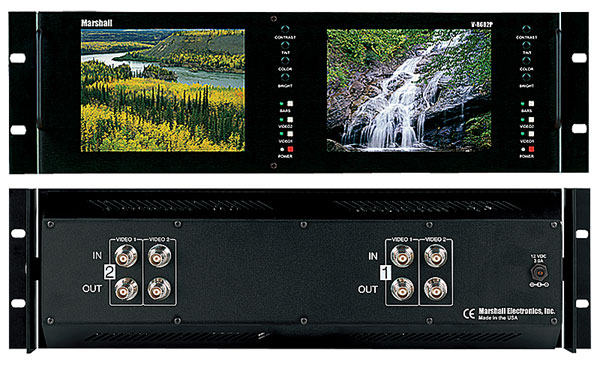

Click For Larger Image

OVERVIEW - Marshall vr682p Dual 6.8 inch LCD Rack Mount Panel:

The Marshall V-R682P is a rack-mounted unit that has two 6.8" active matrix LCD panels with 4:3 aspect ratio. The panels have 384 x 234 dots (RGB pixels) producing a true high-resolution image. There are 2 composite inputs with dedicated A/B switching per display. An active loop through feature is also provided for each input. The unit is designed to fit into an EIA standard 19" rack and occupies 3RU of space.

Each screen has a built-in color bar generator, and 3 Tally indicators. For ease of operation the V-R682P includes dedicated individual front mounted selector buttons with LED indicators plus color, tint, brightness and contrast controls. A U.L. Class 2 power supply and manual are included and the unit is factory ready for rack mount installation.

FEATURES - Marshall VR682P Dual 6.8 inch Rack Mount LCD Panel:

• High Resolution 384 x 234 Dots , 270,000 total
• Bright 300 candle luminance
• Automatic NTSC/PAL signal recognition
• Fits in standard 19 inch rack, 3U high
• Active Loop Through feature
• Individual color, tint, brightness and contrast controls for each panel
• Built-in Color Bar Generator
• Unique 180 degree tilt adjustment while mounted in rack

SPECIFICATIONS - MARSHALL V-R682P RACK MOUNT LCD PANEL:

• Display (Viewing Area) 6.8" (5.44" x 4.07")
• Resolution (Pixels) 384 H x 234 V
• Dot Pitch 0.120mm x 0.442mm
• Brightness (in cd/m²) 300 cd/m²
• System NTSC/PAL auto rec
• Inputs per panel (total) 2 Composite with active loop outputs
• Dimensions 19.125"W x 5.14"H x 2.5"D
• Approx. Weight 5 lbs
• Power Consumption 12 VDC, 3.0 Amps max
