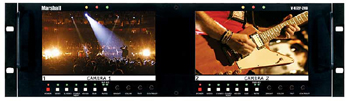

Marshall V-R72P-2HD Dual 7 inch Wide Screen Multiformat HD/SD rack unit with 1.2 Megapixel LCD Displays

Our Price $3069.99 Including 3 - 5 Day Shipping

Back to Marshall Rack Mount LCD Monitors

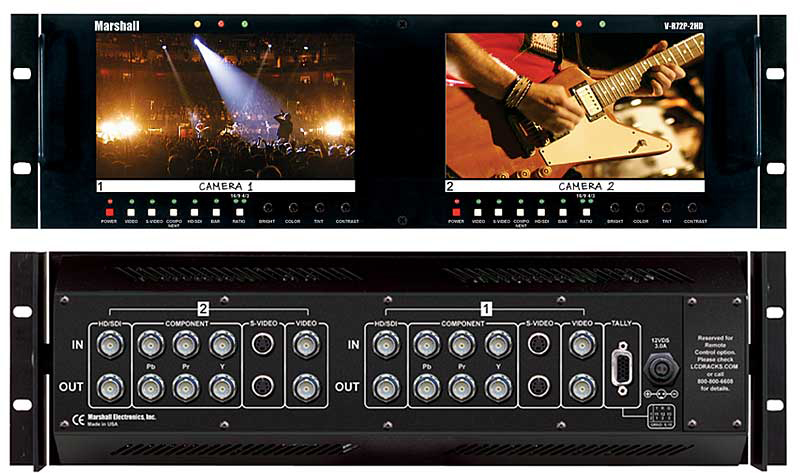

Click For Larger Image

OVERVIEW - Marshall vr72p2hd Dual 7 inch Wide Screen Multiformat HD/SD rack unit with 1.2 Megapixel LCD Displays:

The Marshall Rack mounted and tiltable V-R72P-2HD represents leading edge technology in LCD/TFT imaging for broadcast and professional video applications featuring High Resolution, megapixel, TFT screens with completely digital signal processing. All SMPTE/ITU video standards and signal types are accepted and displayed on each screen of this model.

Analog signals are digitized using an advanced 10 bit process on each signal path with 4x over sampling and adaptive 5 line comb filter with exacting color space conversion. All video formats are scaled to fit on screen in the highest resolution using a state of the art LSI that incorporates 4x4 pixel interpolations with precision Gamma correction to produce the best images available.

FEATURES - Marshall VR72P2HD Dual 7 inch Wide Screen Multiformat HD/SD Rack Mount Lcd Unit:

• High Resolution 7-inch 1.2 MegaPixel wide screen
• 100% digital processing
• Analog signals converted to 10 bit digital
• High resolution scaling of all images
• Wide viewing radius - 130° horizontal and 120° vertical provides superior visibility when the viewer is not directly in front of the screen
• 380 candelas per square meter (cd/m2) luminance produces enhanced image quality in varying light and viewing conditions
• 400:1 ratio of contrast between black and white luminance values with response rates less than 30 ms results in excellent quality for moving images
• 4:3 and 16:9 screen aspect ratios for DTV applications in HD and SD formats
• Works with all SMPTE/ITU production formats and frame rates
• Blue Screen for color adjustment

SPECIFICATIONS - MARSHALL V-R72P-2HD RACK MOUNT LCD MONITOR:

• Display (Viewing Area) 7" (6.14"H x 3.27"V) (156.0mm x 83.28mm)
• Resolution ( RGB Dots) 800H x RGB x 480V (1.2 million pixels)
• Viewing Angles 130° H x 120° V
• Dot Pitch 0.065 mm (W) x 0.175 (H)
• Contrast Ratio 400:1
• Pixel Response <30ms
• Brightness 380 cd/m²
• System NTSC/PAL auto recognition for standard definition signals

Manufacturer Homepage: www.lcdracks.com
