Marshall V-R82DP-2SDI
TFT-MegaPixel SDI Dual Screen 8.4-Inch Basic Monitor Set
Our Price $2468.90 Including 3 - 5 Day Shipping
Back to
Marshall Rack Mount LCD Monitors |
|
|

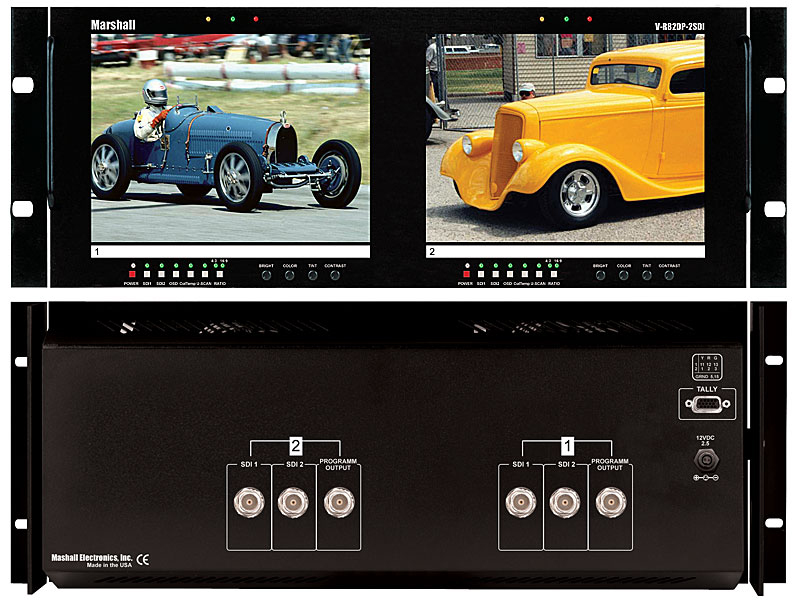

Click For Larger Image |

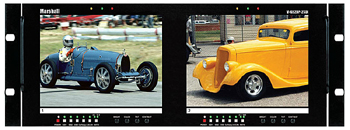

MARSHALL V-R82DP-2SDI TFT-MegaPixel SDI Dual Screen 8.4-Inch Basic Monitor Set
|
OVERVIEW - Marshall vr82dp2sdi TFT-MegaPixel SDI Dual Screen 8.4-Inch Basic Monitor Set:
Our budget model, V-R82DP-2SDI, features our award winning TFT-MegaPixelT system and is a direct replacement for 8 and 9-inch CRTs used in broadcast and professional video applications. Ready to rack mount in 4RU, this cost effective model saves valuable rack space, in addition to its low weight and power consumption when compared to similar CRT products.
Inputs are provided for 2 SDI (Serial Digital Interface), sources on each of the screens. Our Hyper Process for motion compensation is employed to provide smooth motion of interlace images. All screen formats are scaled to fit on screen in the highest resolution using our proprietary program and state of the art LSI with CRT Color Match conversion to emulate SMPTE-C phosphor of a CRT.
|
FEATURES - Marshall VR82DP2SDI TFT-MegaPixel SDI Dual Screen 8.4-Inch Basic Monitor Set:
- High Resolution 8.4-inch screen 800 x 600 Dots with 1.44 million RGB pixels
- 100% digital processing
- Hyper Process for Interlace Images
- Match Color Conversion
- 5 Year /50,000 hour backlight life
- High resolution scaling
- Wide viewing radius - 130°
- 500 cd/m2 luminance
- 500:1 contrast ratio
- Response rates less than 25 ms
- 4:3 and 16:9 screen aspect ratios
- Direct access for all adjustments
- Three color tally indicators
- On Screen Display (OSD)
- Blue "Gun" for color adjustment
- Adjustment Settings Memory
- Underscan
- Standard inputs for each screen:
- 2 SDI (ITU-BR601/SMPTE-259M)
- SDI Output of displayed signals
- Ready to Rackmount out of the box
|
SPECIFICATIONS - MARSHALL V-R82DP-2SDI TFT-MEGAPIXEL SDI DUAL SCREEN 8.4-INCH BASIC MONITOR SET:
- Display (Viewing Area): 8.4 Inch diagonal (170.4mm W x 127.8mm H)
- Resolution (Pixels): 800 Wide x 600 High (1.44 Million RGB Pixels)(262,000 colors)
- Dot Pitch: .213mm square pixel
- Brightness (in cd/m): 500 cd/m
- Contrast Ratio: 500:1
- System: NTSC/PAL auto rec
- Inputs per panel (total): 2 (4) SDI
- Dimensions: 19.12" w x 6.875" h x 1.5" d (485.7mm x 174.6mm x 38.1mm) 4RU
- Approx. Weight: 5.4 lbs (2.4 kg)
- Power Consumption: App. 36Watt (5Amp 12 VDC Class 2 power supply included)
Manufacturer Homepage: www.lcdracks.com
|
