Marshall V-R82DP-HD
Dual 8.4 inch LCD Rack Mount Panel with Multiformat Inputs
Our Price $3348.90 Including 3 - 5 Day Shipping
Back to
Marshall Rack Mount LCD Monitors |
|
|
Click For Larger Image |

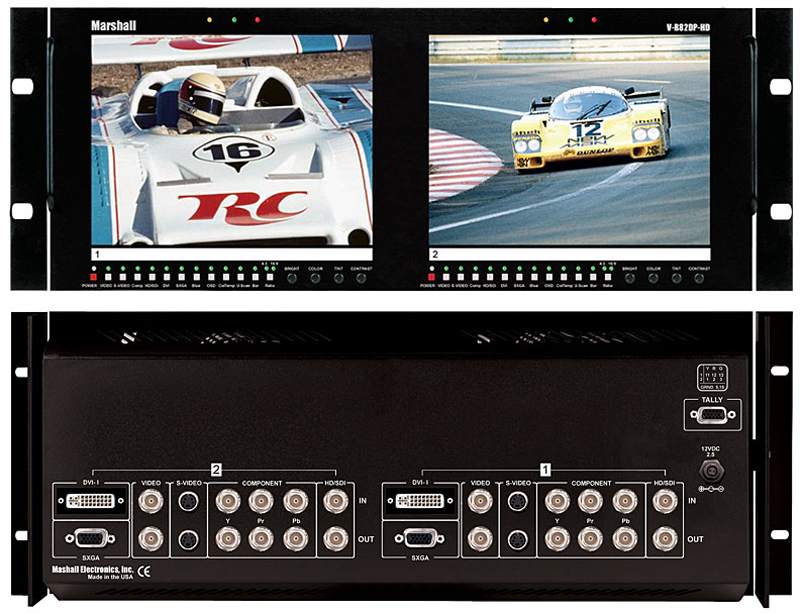

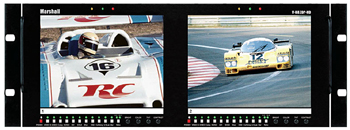

MARSHALL V-R82DP-HD Dual 8.4 inch LCD Rack Mount Panel with Multiformat Inputs
|
OVERVIEW - Marshall vr82dphd Dual 8.4 inch LCD Rack Mount Panel with Multiformat Inputs:
Our V-R82DP-HD is a direct replacement for 8 and 9-inch CRTs and is ready to rack mount in 4RU. This model saves valuable rack space; weight and power when compared to similar CRT and LCD products and includes our Award Wining Digital TFT-MegapixelT system plus Hyper Process for interlace images.
Inputs are provided for HDSDI (High Definition Serial Digital Interface), Standard Definition Component Analog, Composite, Y/C, DVI Analog or Digital from HDMI with HDCP, plus PC up to SXGA resolution. Analog signals are digitized using an advanced 10 bit process, and all screen formats are scaled to fit on screen in the highest resolution using our proprietary program and state of the art LSI with Match Color Conversion to emulate SMPTE-C phosphor of a CRT
|
FEATURES - Marshall VR82DPHD Dual 8.4 inch LCD Rack Mount Panel with Multiformat Inputs:
- Accepts virtually all HD/SD Formats
- High Resolution 8.4-inch screen 800 x 600 Dots with 1.44 million RGB pixels
- 100% digital processing
- Hyper Process for Interlace Images
- Match Color Conversion
- Adjustable Color Temperature
- 5 Year /50,000 hour backlight life
- 10 bit Analog to Digital conversion
- High resolution scaling
- Wide viewing radius - 130°
- 500 cd/m2 luminance
- 500:1 contrast ratio
- Response rates less than 25 ms
- 4:3 and 16:9 screen aspect ratios
- Direct access for all adjustments
- Three color tally indicators
- On Screen Display (OSD)
- Blue "Gun" for color adjustment
- Adjustment Settings Memory
- Underscan
- Standard inputs for each screen:
- HDSDI/SDI (ITU-BR601/SMPTE-259M,292M)
- Component analog (YCrCb) (YPrPb) for all HD and SD formats
- Composite Video auto PAL/NTSC recognition
- S-Video (Y/C)
- DVI (Analog and Digital with HDMI/HDCP)
- PC up to XGA (1024 x 768)
- Loop through of all video input signals
- Ready to Rackmount out of the box
|
SPECIFICATIONS - MARSHALL V-R82DP-HD DUAL 8.4 INCH LCD RACK MOUNT PANEL WITH MULTIFORMAT INPUTS:
|
Display (Viewing Area)
|
8.4 Inch diagonal (170.4mm W x 127.8mm H) |
|
Resolution (Pixels)
|
800 Wide x 600 High (1.44 Million RGB Pixels)(262,000 colors) |
|
Dot Pitch
|
.213mm square pixel |
|
Brightness (in cd/m)
|
500 cd/m |
|
Contrast Ratio
|
500:1 |
|
System
|
NTSC/PAL auto rec |
|
Inputs per panel (total)
|
1 (2) HDSDI,
1 (2) Composite,
1 (2) S-Video (Y/C),
1 (2) Component,
1 (2) DVI,
1 (2) PC-XGA (1024 x 768) |
|
Dimensions
|
19.12" w x 6.875" h x 1.5" d (485.7mm x 174.6mm x 38.1mm)
4RU |
|
Approx.
Weight
|
5.4 lbs (2.4 kg) |
|
Power
Consumption
|
App. 36Watt (5Amp 12 VDC Class 2 power supply included) |
Manufacturer Homepage: www.lcdracks.com
|
