Marshall V-R82DP-HDA
TFT-MegaPixel Multiformat Dual Screen 8.4-Inch Monitor Set
Our Price $2468.90 Including 3 - 5 Day Shipping
Back to
Marshall Rack Mount LCD Monitors |
|
|

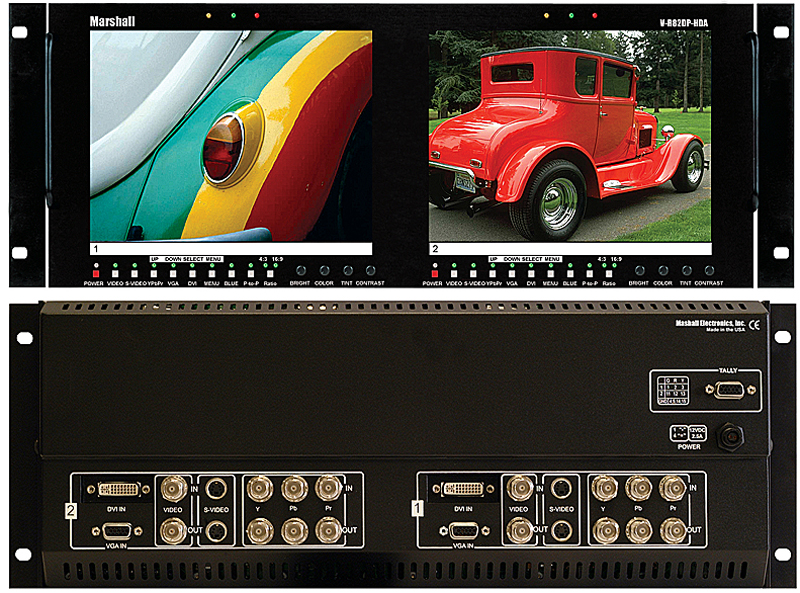

Click For Larger Image |
MARSHALL V-R82DP-HDA TFT-MegaPixel Multiformat Dual Screen 8.4-Inch Monitor Set
|
OVERVIEW - Marshall vr82dphda TFT-MegaPixel Multiformat Dual Screen 8.4-Inch Monitor Set:
Our V-R82DP-HDA is a direct replacement for 8 and 9-inch CRTs and is perfect solution in broadcast, A/V and multimedia applications. Ready to rack mount in 4RU, this model saves valuable rack space, is low weight and has low power consumption when compared to similar CRT and LCD products.
The V-R82DP-HDA features our Award Wining Digital TFT-MegapixelT system plus Hyper Process motion compensation for interlace images. Inputs are provided for HD or SD Component Analog, Composite, Y/C, DVI Analog or Digital from HDMI with HDCP, plus PC up to SXGA resolution (1280x1040).
Analog signals are digitized using an advanced 10 bit process, and all screen formats are scaled to fit on screen in the highest resolution using our proprietary program and state of the art LSI with Match Color Conversion to emulate SMPTE-C phosphor of a CRT.
|
FEATURES - Marshall VR82DPHDA TFT-MegaPixel Multiformat Dual Screen 8.4-Inch Monitor Set:
- High Resolution 8.4-inch screen 800 x 600 Dots with 1.44 million RGB pixels
- 100% digital processing
- Hyper Process for Interlace Images
- Match Color Conversion
- 5 Year /50,000 hour backlight life
- High resolution scaling
- Wide viewing radius - 130°
- 500 cd/m2 luminance
- 500:1 contrast ratio
- Response rates less than 25 ms
- 4:3 and 16:9 screen aspect ratios
- Direct access for all adjustments
- Three color tally indicators
- On Screen Display (OSD)
- Blue "Gun" for color adjustment
- Adjustment Settings Memory
- Underscan
- Standard inputs for each screen:
- Component analog (YCrCb) (YPrPb) for all HD and SD formats
- Composite Video auto PAL/NTSC recognition
- S-Video (Y/C)
- DVI (Analog and Digital with HDMI/HDCP)
- PC up to XGA (1024 x 768)
- Loop through of all video input signals
- Ready to Rackmount out of the box
|
SPECIFICATIONS - MARSHALL V-R82DP-HDA TFT-MEGAPIXEL MULTIFORMAT DUAL SCREEN 8.4-INCH MONITOR SET:
SPECIFICATIONS |
|
Display (Viewing Area)
|
8.4 Inch diagonal (170.4mm W x 127.8mm H) |
|
Resolution (Pixels)
|
800 Wide x 600 High (1.44 Million RGB Pixels)(262,000 colors) |
|
Dot Pitch
|
.213mm square pixel |
|
Brightness (in cd/m)
|
500 cd/m |
|
Contrast Ratio
|
500:1 |
|
System
|
NTSC/PAL auto rec |
|
Inputs per panel (total)
|
1 (2)
Composite,
1 (2) S-Video (Y/C),
1 (2) Component,
1 (2) DVI,
1 (2) PC-XGA (1024 x 768) |
|
Dimensions
| 19.12" w x 6.875" h x 1.65" d (485.7mm x 174.6mm x 41.3mm) 4RU |
|
Approx.
Weight
|
5.4 lbs (2.4 kg) |
|
Power
Consumption
|
App. 36Watt (5Amp 12 VDC Class 2 power supply included) |
Manufacturer Homepage: www.lcdracks.com
|
