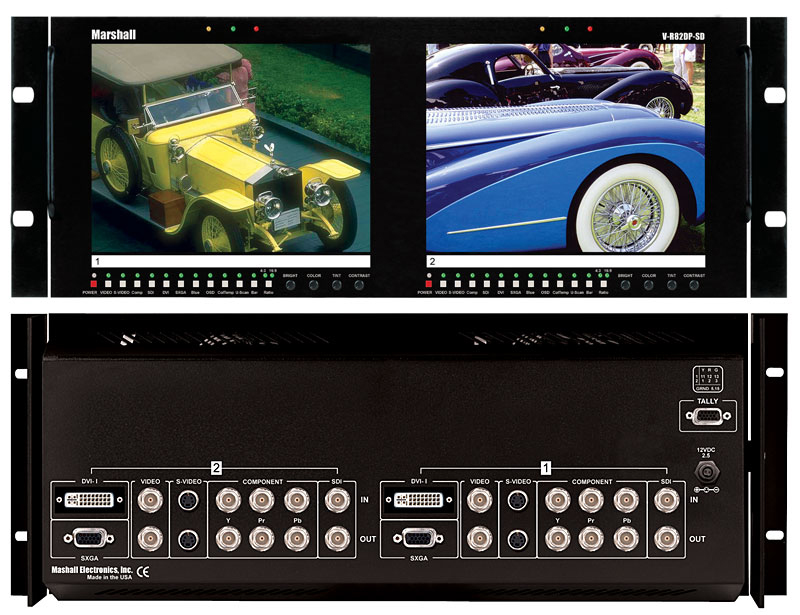

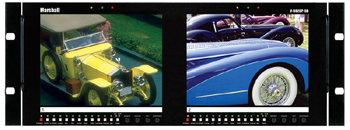

Marshall VR82DPSD Rack Mount Lcd Monitor marshall v-r82dp-sd

KEY POINTS - VR82DPSD Marshall Dual 8.4 inch LCD Rack Mount Panel all inputs with SDI:

High Resolution 8.4-inch screen 800 x 600 Dots with 1.44 million RGB pixels

100% digital processing

Hyper Process for Interlace Images

Match Color Conversion

5 Year /50,000 hour backlight life

10 bit Analog to Digital conversion

Adjustable color temperature

Wide viewing radius - 130°

500 cd/m2 luminance

500:1 contrast ratio

Response rates less than 25 ms

4:3 and 16:9 screen aspect ratios

Direct access for all adjustments

Three color tally indicators

On Screen Display (OSD)

Blue "Gun" for color adjustment

Adjustment Settings Memory

Underscan

Standard inputs for each screen:

SDI (ITU-BR601/SMPTE-259M)
Component analog (YCrCb) (YPrPb) for all HD and SD formats
Composite Video auto PAL/NTSC recognition
S-Video (Y/C)
DVI (Analog and Digital with HDMI/HDCP)
PC up to XGA (1024 x 768)
Loop through of all video input signals

Ready to Rackmount out of the box

SUMMARY - Marshall vr82dpsd Dual 8.4 inch LCD Rack Mount Panel all inputs with SDI:

Our V-R82DP-SD is a direct replacement for 8 and 9-inch CRTs used in broadcast and professional video applications. Ready to rack mount in 4RU, this model saves valuable rack space, weight and power when compared to CRT products. The V-R82DP-SD includes our Award Wining Digital TFT-MegapixelT system plus Hyper Process motion compensation for interlace images.

Match Color Conversion

DETAILED SPECS - MARSHALL V-R82DP-SD DUAL 8.4 INCH LCD RACK MOUNT PANEL ALL INPUTS WITH SDI:

SPECIFICATIONS

Display (Viewing Area)

8.4 Inch diagonal (170.4mm W x 127.8mm H)

Resolution (Pixels)

800 Wide x 600 High (1.44 Million RGB Pixels)(262,000 colors)

Dot Pitch

.213mm square pixel

Brightness (in cd/m)

500 cd/m

Contrast Ratio

500:1

System

NTSC/PAL auto rec

Inputs per panel (total)

1 (2) SDI,
1 (2) Composite,
1 (2) S-Video (Y/C),
1 (2) Component,
1 (2) DVI,
1 (2) PC-XGA (1024 x 768)

Dimensions

19.12" w x 6.875" h x 1.5" d (485.7mm x 174.6mm x 38.1mm) 4RU

Approx. Weight

5.4 lbs (2.4 kg)

Power Consumption

App. 36Watt (5Amp 12 VDC Class 2 power supply included)
