Marshall V-R82P Dual 8 inch LCD Rack Mount Panel

no longer available

Back to Marshall Rack Mount LCD Monitors

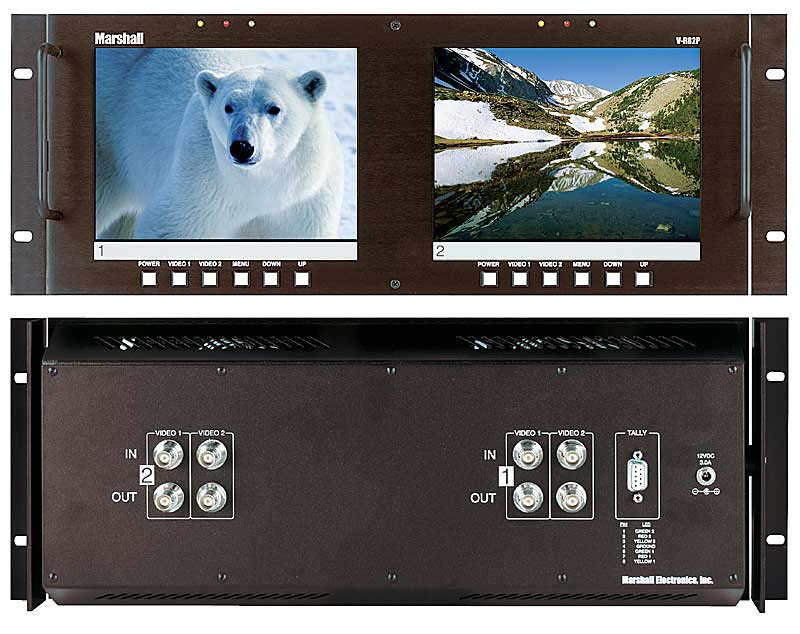

Click For Larger Image

OVERVIEW - Marshall vr82p Dual 8 inch LCD Rack Mount Panel:

The Marshall V-R82P is a rack mountable unit that has two 7.9" active matrix LCD panels. These panels have 1440 x 234 pixels making them true high-resolution screens with a brightness of 350 candle luminance. Each panel has dual inputs with active loop through feature, and auto recognition for NTSC or PAL. For added flexibility, an independent 3 color tally system is provided for each panel. Complete controls for color, tint, contrast, and brightness are provided via an on-screen menu. The unit includes power supply, manual and fits into any standard EIA 19" rack, at 4U high.

FEATURES - Marshall VR82P Dual 8 inch Rack Mount LCD Panel:

• High Resolution 1440 × 234 pixels, 336,960 total
• Ultra bright 350 candle luminance
• 2 Composite inputs per channel
• NTSC/PAL auto recognition
• Three color, self-powered tally system provided for each panel
• On screen menu controls color, tint, brightness and contrast controls
• Unique 180 degree tilt adjustment while mounted in rack
• Dry Erase Marker for EZ Identifying of screen is included

SPECIFICATIONS - MARSHALL V-R82P RACK MOUNT LCD PANEL:

• Display (Viewing Area) 7.9" (6.35" × 4.64")
• Resolution (Pixels) 1440 H × 234 V
• Dot Pitch 0.112mm × 0.504mm
• Brightness (in cd/m²) 350 cd/m²
• System NTSC/PAL auto rec
• Inputs per panel (total) 2 (4) Composite
• Dimensions 19.12"W × 6.85"H × 2.65"D
• Approx. Weight 6 lbs
• Power Consumption 12 VDC, 2.0 Amps

Manufacturer Homepage: www.lcdracks.com
