Marshall V-R82P-SDI Dual 8.4 inch LCD Rack Mount Panel with SDI Input

no longer available

Back to Marshall Rack Mount LCD Monitors

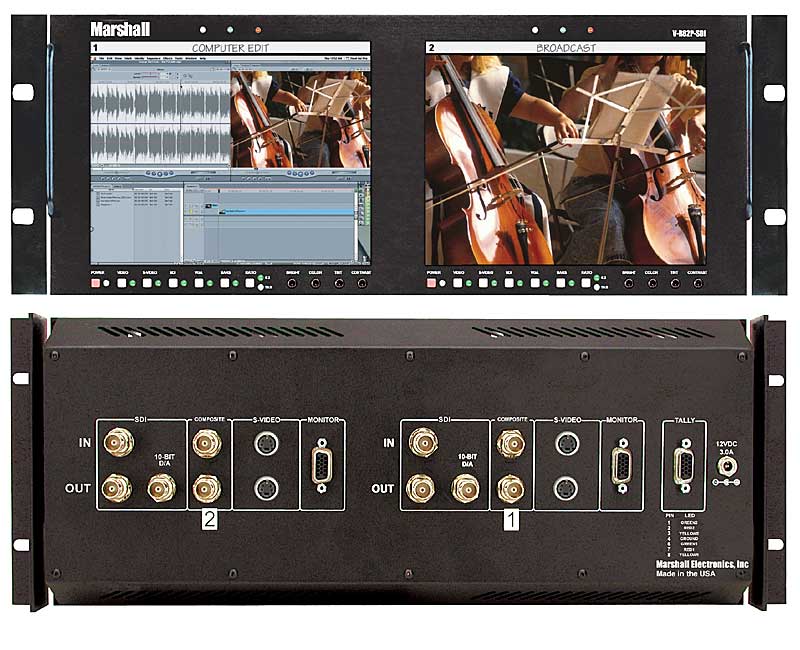

Click For Larger Image

OVERVIEW - Marshall vr82psdi Dual 8.4 inch LCD Rack Mount Panel with SDI Input:

The Marshall V-R82P-SDI is a rack mountable unit that has two 8.4" active matrix LCD panels. These panels have 800 x 600 pixels making them true high-resolution screens with a brightness of 350 candle luminance. Each panel has a composite video, SDI, S-Video and VGA input with active loop through feature, and auto recognition for NTSC or PAL. For added flexibility, an independent 3 color tally system is provided for each panel. Each of the two screens have individual front mounted selector buttons with color, tint, brightness and contrast controls. The unit includes power supply, and fits into any standard EIA 19" rack, at 4U high.

FEATURES - Marshall VR82PSDI Dual 8.4 inch Rack Mount Lcd Panel:

• High Resolution 800 × 600 pixels, 480,000 total
• Ultra bright 350 candle luminance
• Switchable 4:3 and 16:9 ratios
• 1 composite video, S-Video and SDI inputs per monitor with active loop through feature 1 VGA scalable input per panel
• SDI Active loop through has active clock recovery with automatic 75W termination
• 2 High Resolution 10-bit SDI to composite video converters, (one per panel)
• Scaler accepts following resolutions 640 × 480, 800 × 600, 1024 × 768, 1152 × 864 and 1280 × 1024
• Individual color, tint, brightness and contrast controls for each panel
• Built-in memory saves current setup when unit is powered down
• Includes power supply
• Three color, self-powered tally system provided for each panel
• Built-in Color Bar Generator
• Unique 180 degree tilt adjustment while mounted in rack
• Dry Erase Marker for EZ Identifying of screen is included

SPECIFICATIONS - MARSHALL V-R82P-SDI RACK MOUNT LCD PANEL:

• Display (Viewing Area) 8.4" (6.71" × 5.03")
• Resolution (Pixels) 800H × 600V
• Dot Pitch 0.213mm × 0.213mm
• Brightness (in cd/m²) 350 cd/m²
• System NTSC/PAL auto rec
• Inputs per panel (total) 1 (2) S-Video, 1 (2) Composite, 1 (2) SDI, 1 (2) VGA
• Dimensions 19.125"W × 6.85"H × 2.65"D
• Approx. Weight 6 lbs
• Power Consumption 12 DCV, 3.0 Amps
