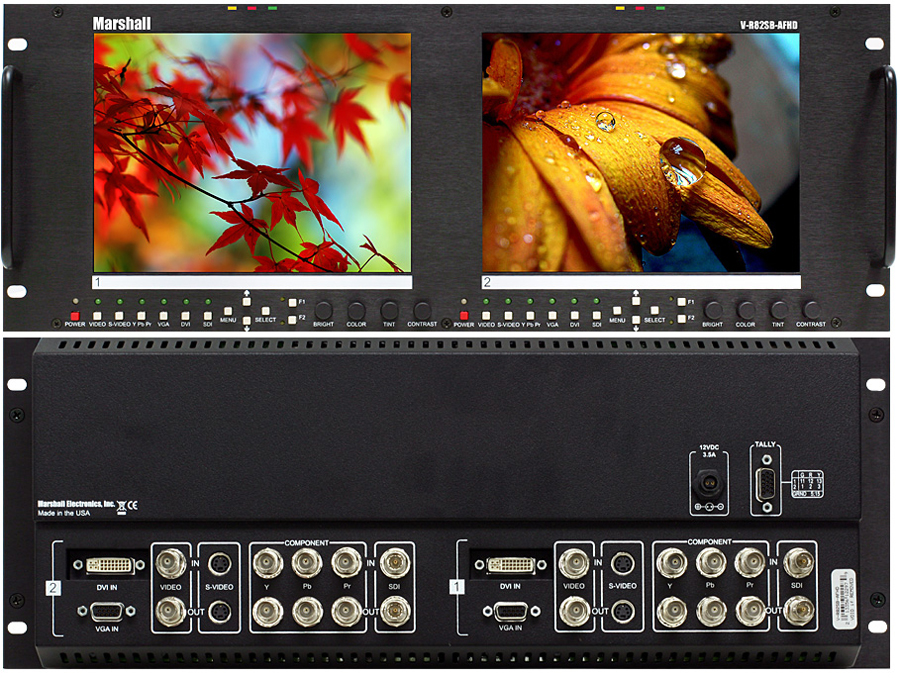

MARSHALL VR82SBAFHD Dual 8.4 Inch Outdoor HD Rack Mountable LCD Monitor
KEY POINTS - VR82SBAFHD Marshall Dual 8.4 Inch Outdoor HD Rack Mountable LCD Monitor:
Dual High Definition 8.4-inch TFT-MegaPixel screens with 800 x 600 resolution
Over 16.7 million colors and a 600:1 contrast ratio
650 candelas per square meter (cd/mē) luminance produces enhanced image quality in varying light and viewing conditions
Standard Multi-format inputs: HDSDI (all formats), SDI (ITU-R BT601 format), Component Analog HD/SD, Composite Video NTSC/PAL, S-Video (Y/C), DVI-I (all formats), SXGA (1280 x 1024) Computer Input (HD-15)
Pixel-to-Pixel native resolution scaling
Blue Gun for color adjustment / Zoom function
Direct access for all adjustments and easy-to-see three color tally indicators
Works with all SMPTE/ITU analog and serial digital production formats and frame rates
Built-in Color Bars / Adjustment Settings Memory
Calibrated Color Temperature and Gamma
Durable Metal Enclosure
SUMMARY - Marshall vr82sbafhd Dual 8.4 Inch Outdoor HD Rack Mountable LCD Monitor:
Occupying only 4 rack units of a standard 19-inch EIA equipment rack, the V-R82SB-AFHD from Marshall represents leading edge technology in LCD imaging for broadcast and professional video applications. Two high resolution Outdoor screens with completely digital signal processing provide image reproduction that exceeds all CRT displays available in a similar form factor. All SMPTE/ITU video standards and signal types are accepted and displayed on each screen of this model. Analog signals are digitized using an advanced 10-bit process on each signal path with 4x oversampling and adaptive 5-line comb filter with exacting color space conversion. All video formats are scaled to fit onscreen in the highest resolution using a state-of-the-art LSI that incorporates 4x4 pixel interpolations with precision Gamma correction to produce the best images available. Additional features include setup memory, Zoom function, 6 Frame Marker Overlays, Blue Gun, and direct access for all adjustment and selection functions.
DETAILED SPECS - MARSHALL VR82SBAFHD DUAL 8.4 INCH OUTDOOR HD RACK MOUNTABLE LCD MONITOR:
Number of Screens
(2) with Anti-glare surface treatment
Display
(Viewing Area)
8.4-Inch diagonal
(170.4mm W x 127.8mm H)
Resolution
(RGB Dots)
800 H x RGB x 600 V (16.7 Million colors)
Viewing Angles
160 Degrees H x 140 Degrees V
Dot Pitch
0.071mm (H) x 0.213mm (V)
Contrast Ratio
600:1
Brightness (in cd/mē)
650
Dimensions
(W x H x D)
18.92 x 7 x 2.02 inches
Weight
6.7 lbs
System
NTSC/PAL auto recognition for standard definition signals
Power Consumption
3.5A @ 12VDC (42 W)
Applications
-Studio Monitor Wall -
Remote/OB Van -
EFP/ENG -
Fly Packs -
Camera Shading
