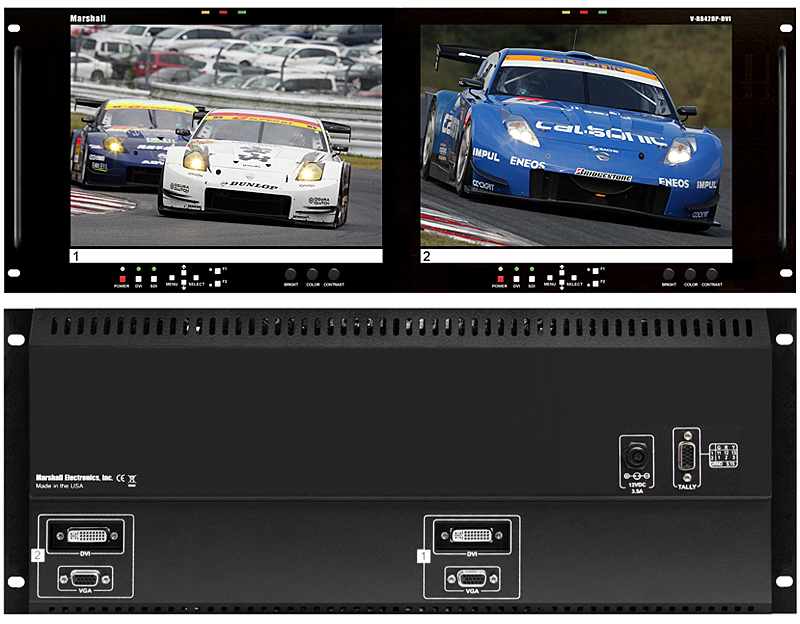

MARSHALL VR842DPDVI Dual 8.4 Inch High Resolution HD DVI Rack Mountable LCD Monitor
KEY POINTS - VR842DPDVI Marshall Dual 8.4 Inch High Resolution HD DVI Rack Mountable LCD Monitor:
High Definition Resolution 8.4-inch 2.4 MegaPixel screen with 1024 x 768 resolution
100% digital processing / High resolution scaling
Standard inputs: PC up to SXGA (1280x1024) and DVI-D
5 Year / 50,000 hour backlight life
Wide viewing radius: 170 Degrees
400 cd/mē luminance
400:1 ratio of contrast between black and white luminance values
Direct access for all adjustments
Ready to Rackmount out-of-the-box
SUMMARY - Marshall vr842dpdvi Dual 8.4 Inch High Resolution HD DVI Rack Mountable LCD Monitor:
The dual screen, 8.4-inch V-R842DP-DVI LCD Monitor from Marshall is a unique solution for Professional IT, A/V and Multimedia applications. Ready to rackmount in 4RU, the unit is low in weight, saves valuable rack space, and has low power consumption. Since it is only 1.65-inches deep, this model is perfect for use in any EIA 19-inch relay or equipment rack. The V-R842DP-DVI also features the Award Winning Digital TFT-MegaPixel system. Signals are input via a Female HD-15 connector for computer signals up to SXGA resolution (1280x1024) and DVI-D. RGB signals are digitized using advanced 10-bit processing and all accepted resolutions are scaled to fit on each screen in the highest resolution using Marshall's proprietary program and state-of-the-art LSI.
DETAILED SPECS - MARSHALL VR842DPDVI DUAL 8.4 INCH HIGH RESOLUTION HD DVI RACK MOUNTABLE LCD MONITOR:
Display (Viewing Area)
8.4-inch (6.14H x 3.27V inches)
(170.496mm x 127.872mm)
Resolution
(RGB Dots)
1024 H x RGB x768 V (2.4 million RGB pixels) (16.7 Million colors)
Dot Pitch / Pixel Pitch
0.0555 mm (W) x 0.1665 (H) / 0.1665 Square pixel
Contrast Ratio
400:1
Brightness (in cd/mē)
400
Inputs Per Panel
1 PC-SXGA (1280 x 1024) via HD-15 Female Connector and 1 DVI-D
Dimensions
(W x H x D)
19.12 x 6.875 x 1.65 inches
(485.7mm x 174.6mm x 41.3mm) 4RU
Weight
7 lbs (3.2 kg)
Power Consumption
App. 36Watt (5Amp 12 VDC Class 2 power supply included)
