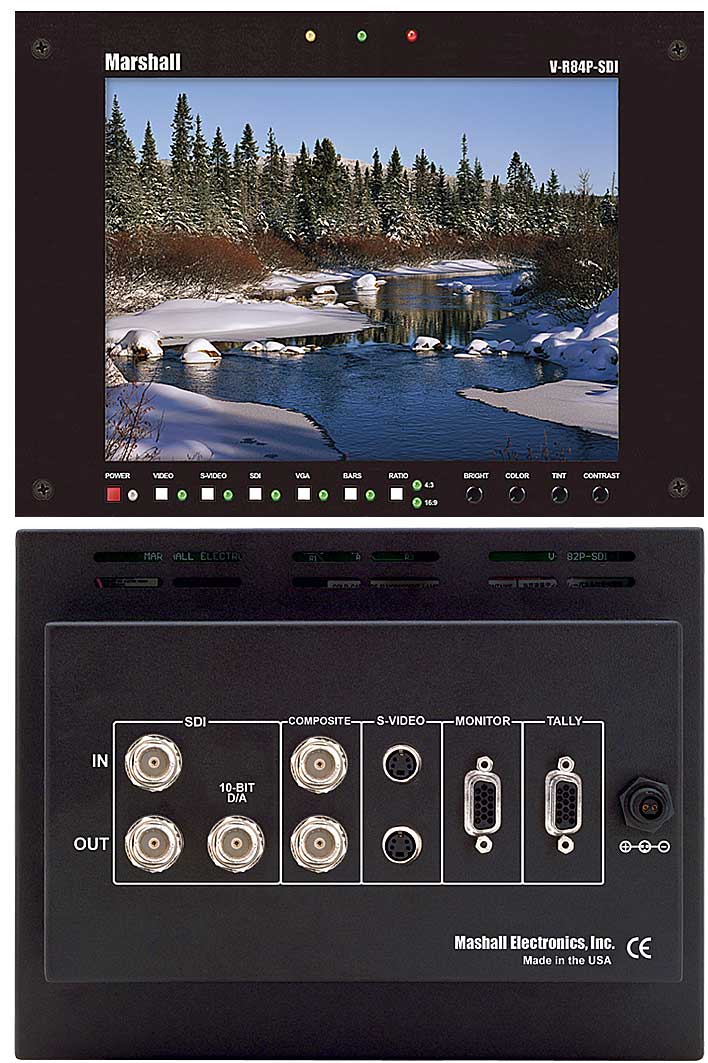

Marshall V-R84P-SDI 8.4 inch LCD Rack Mount Panel with SDI

no longer available

Back to Marshall Rack Mount LCD Monitors

Click For Larger Image

OVERVIEW - Marshall vr84psdi 8.4 inch LCD Rack Mount Panel with SDI:

The Marshall V-R84P-SDI is a stand alone monitor with 8.4" active matrix LCD panel. This panel has 800 x 600 pixels making it true high-resolution screen with a brightness of 350 candle luminance. Monitor has a composite video, SDI, S-Video and VGA input with active loop through feature, and auto recognition for NTSC or PAL. For added flexibility, an independent 3 color tally system is provided for each panel plus individual front mounted selector buttons with color, tint, brightness and contrast controls. The unit includes power supply, manual.

FEATURES - Marshall VR84PSDI 8.4 inch Rack Mount LCD Panel:

• High Resolution LCD panel, 800 x 600 pixels, 480,000 total
• Ultra bright 350 candle luminance
• Switchable 4:3 and 16:9 ratios
• 1 composite video, S-Video and SDI inputs with active loop through 1 VGA scalable input. Scaler accepts following resolutions 640 x 480, 800 x 600, 1024 x 768, 1152 x 864 and 1280 x 1024
• SDI Active loop through has active clock recovery with automatic 75 Ohm termination
• High Resolution built-in 10-bit SDI to composite video converter
• Individual color, tint, brightness and contrast controls
• Built-in memory saves current setup when unit is powered down
• Includes power supply
• Three color, self-powered tally system provided
• 1/4-20 mount on bottom built-in Color Bar Generator

SPECIFICATIONS - MARSHALL V-R84P-SDI RACK MOUNT LCD PANEL:

• Display (Viewing Area) 8.4" (6.71" × 5.03")
• Resolution (Pixels) 800 H × 600 V
• Dot Pitch 0.213 mm × 0.213 mm
• Brightness (in cd/m²) 350 cd/m²
• System NTSC/PAL auto rec
• Inputs per panel (total) 1 S-Video / 1 Composite / 1 SDI / 1 SXGA
• Dimensions 8.74"W × 6.73"H × 2.65"D
• Approx. Weight 3 lbs
• Power Consumption 12 DC, 3.0 Amps
