Marshall V-RD171-IMD-HDSDI 17 inch 1920 x 1200 Pull-Out Monitor Drawer with HDSDI / SDI input and In-Monitor Display features

Our Price $2343.99 Including Shipping

Back to Marshall Rack Mount LCD Monitors

KEY POINTS - Marshall vrd171imdhdsdi 17 inch 1920 x 1200 pull-out monitor drawer with hdsdi / sdi input and in-monitor display features:

Durable, Single RU metal enclosure with Pull-Out drawer for the screen

Drawer includes lock and key for secure transport

No need for external Under Monitor Display - "all-in-one" In-Monitor Display solution without added depth

Supports the following protocols: Image Video / NVISION / TSL / MEI

High Resolution 1920 x 1200

New unique RotoMenuTM feature for fast, direct, and easy menu navigation

High resolution scaling / high quality deinterlacing

Three-color on-screen "soft" tally indicators (Red / Green / Amber)

Three LED color tally indicators (Red / Green / Amber)

On-Screen Audio Presence Indicator

On-Screen Video Time Code

RS-422 / 485 connection with loop-through for control communication / IMD functionality

Field upgradeable firmware capability via RS-422 / 485 port

Direct access for adjustments of brightness, contrast, and color

Multiple Frame Marker Overlays with Center Mark

Pixel-to-Pixel mode

Blue Gun for color adjustment

Adjustment Settings Memory

SUMMARY - Marshall vrd171imdhdsdi 17 inch 1920 x 1200 Pull-Out Monitor Drawer with HDSDI / SDI input and In-Monitor Display features:

The Marshall V-RD171-IMD-HDSDI fits into an EIA standard 19 inch rack and occupies only 1RU of space. This innovating monitor drawer is a cost-effective "all-in-one" solution for post production houses, broadcasters, and mobile units. This fully-integrated approach eliminates the need for additional or separate Under Monitor Displays and allows UMD information and tallies to be displayed directly within a Marshall flat panel monitor, while saving precious rack space. A variety of features are readily available including on-screen Video Time Code, three-color "Soft" Tallies, and Audio Presence Indicator. The new Marshall IMD displays also introduce our new RotoMenuTM feature which allows fast, direct, and easy menu navigation. Marshall IMD monitors integrate easily with existing Tally systems and controllers, including Image Video, NVISION, TSL, and MEI (Marshall Electronics) protocols.

DETAILED SPECS - MARSHALL V-RD171-IMD-HDSDI 17 INCH 1920 X 1200 PULL-OUT MONITOR DRAWER WITH HDSDI / SDI INPUT AND IN-MONITOR DISPLAY FEATURES:

SPECIFICATIONS

Display (Viewing Area)

17" Diagonal (14.46" x 9.04") (367.2mm × 229.5mm)

Resolution (Pixels)

1920 x 1200

Viewing Angle

L/R: 140°
U/D: 120°

Pixel Pitch (mm)

0.191(H) x 0.191(V)

Brightness (in cd/m²)

400

Contrast Ratio

600:1

System

NTSC/PAL auto recognition

Input

HDSDI x 1

Loop-through output

HDSDI x 1

Dimensions

19.12"W x 1.75"H x 22"D

Approx. Weight

24 lbs

Power Consumption

5.0A @ 12VDC

APPLICATIONS

• Video assist
• Talent monitor
• Signal confidence monitor
• ENG/EFP

• Flight Pack
• Mobile weapon systems
• Video equipped aircraft
• Manufacturing Control Consoles

Manufacturer Page: www.lcdracks.com

marshall vrd171imdhdsdi lcd rack display v-rd171-imd-hdsdi

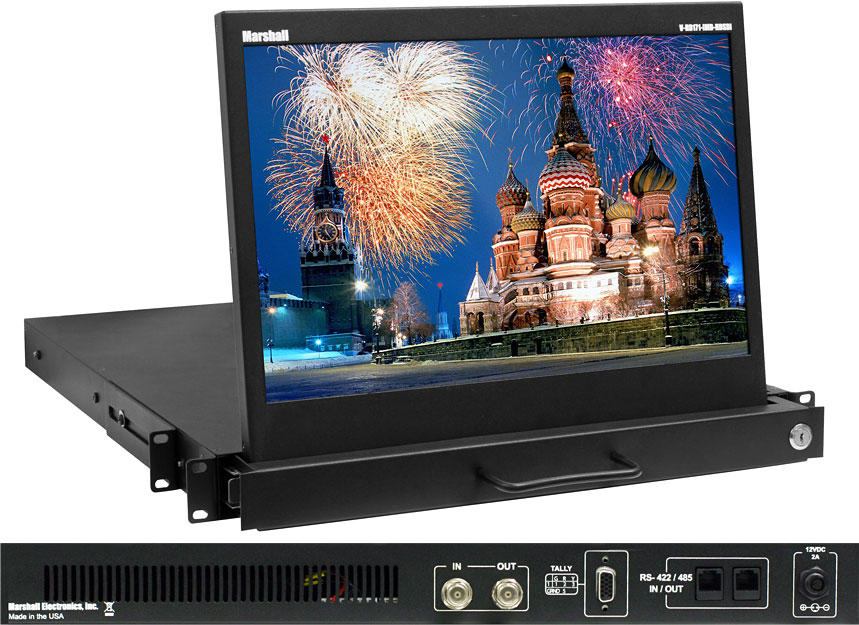

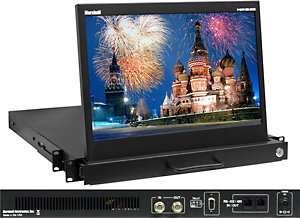

Click for Larger Image
