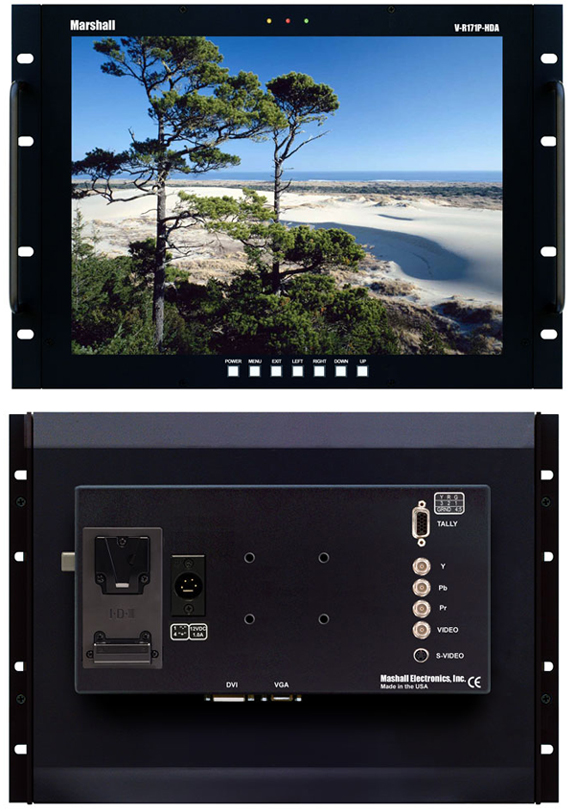

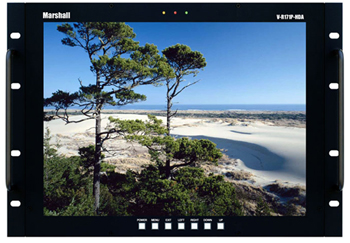

Marshall VRD171PHDA Rack Mount Lcd Monitor marshall v-rd171p

KEY POINTS - VRD171PHDA Marshall 17 inch Rack Drawer LCD Monitor with HAD Inputs:

Durable, Single RU metal enclosure with Pull Out drawer for the screen

Drawer includes lock and key for secure transport

SXGA Native Resolution 1280 ´ 1024 pixels, 3.9 million total RGB pixels produce 16.7 million colors

Bright 300 candle luminance

500:1 ratio of contrast between black and white luminance values with response rates less than 13 ms results in excellent quality for moving images displayed at any frame rate

Automatic Gamma Correction

Display Analog or DVI-Digital High Definition

4:3 and 16:9 screen aspect ratios for DTV applications in HD and SD formats

NTSC/PAL operation

Picture In Picture (PIP)

CRT style viewing radius - 170° in all directions provides superior visibility when the viewer is not directly in front of the screen

Includes universal voltage Class-2 power supply

Standard inputs: Composite Video PAL/NTSC, S-Video, Component Video, SXGA Computer, DVI-D (Digital)

DETAILED SPECS - MARSHALL V-RD171P-HDA 17 INCH RACK DRAWER LCD MONITOR WITH HAD INPUTS:

Number of Screens 1 with Antiglare surface treatment

Display (Viewing Area) 17" (13.30" × 8.75 ") (337.92mm × 270.34mm)

Resolution (RGB Dots) 1280H × RGB × 1024V 3.9 million RGB Pixels (16.7 Million colors

Viewing Angle 170°H × 170°V

Dot Pitch 0.264mm square pixel

Brightness 300 cd/m²

Contrast Ratio 500:1

System NTSC/PAL auto recognition for standard definition signals

Inputs 1 S-Video (4 Pin Mini Din), 1 Composite (BNC), 1 SXGA (15P HD-15), Component Video (3 BNC), DVI-D (Digital only), Power (4 Pin Male XLR), Tally (15 Pin HD-15)

Dimensions 19.12"W x 1.75"H x 22"D

Approx. Weight 24 lbs

Power Consumption 12 VDC from included power supply (70Watt Max)

Marshall VRD171PHDA 17 inch Rack Drawer LCD Monitor with HAD Inputs
