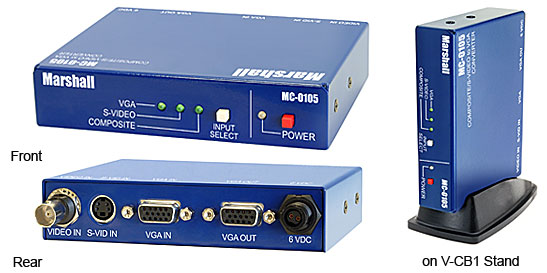

Marshall MC-0105 Composite or S-Video to VGA Converter

no longer available

Return to Marshall Video Converter Page

Click to Enlarge Image

KEY POINTS - Marshall MC0105 Composite or S-Video to VGA Converter:

• NTSC or PAL operation with automatic detection
• Illuminated power and input signal indicators
• Converts Composite Video or Y/C (S-video) to VGA ( RGBHV ) for display on projectors or data screens
• Transforms interlaced 525/625 images to Progressive Scan
• Adaptive filtering removes NTSC interlace artifacts
• 2x over sampling for true color reproduction
• VGA output processed as 4:4:4/RGB
• Automatically scales NTSC input to 640x480 RGB Pixel screen format
• Automatically scales 525 input to 768x576 RGB Pixel screen format
• Automatic Gamma correction
• Automatic color space conversion
• Seamless switching between VGA and composite or Y/C inputs

SUMMARY - Marshall mc0105 composite or svideo to vga converter:

The Marshall MC-0105 converts composite or S-Video (NTSC/PAL) to VGA. When placed in line with your monitor cable there is the capability to switch the display between video and VGA signals. An optional base holder (V-CB1) and BNC Breakout Cables (RGB-5HD15-X) are available for use in desktop applications.

DETAILED SPECS - MARSHALL MC-0105 COMPOSITE OR SVIDEO TO VGA CONVERTER:

• Dimensions 4.75"W x 3.75"D x 1.0"H
• Signal Input BNC connection of composite video - PAL or SMPTE
• Signal Output 4 BNC
• Frequency Response 5 to 300 Mhz
• K factor <1%
• Signal to Noise >70db
• Dynamic gain/phase <1% / <1°
• Cable Length 1000' max using Belden 8281 or equivalent
• Power required 6 V D.C. supplied from external supply
• Weight 0.55 lbs
