Marshall MD-0114 Converter, Video 1x4 Distribution Amplifier

no longer available

Return to Marshall Video Distribution Amplifier Page

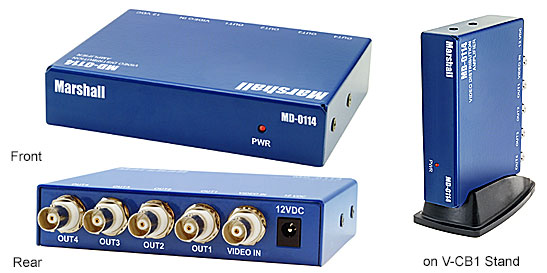

Click to Enlarge Image

KEY POINTS - Marshall MD0114 Converter, Video 1x4 Distribution Amplifier:

• Use in short cable run and desktop/multimedia applications
• Self terminating 75W BNC input
• 75W BNC outputs (4)
• Power indicator on front panel
• All connections in rear of module
• Install in rack or use on the desktop

SUMMARY - Marshall md0114 Converter, Video 1x4 Distribution Amplifier:

Marshall's MD-0114 Distribution Amplifier is a cost effective solution for a wide range of applications. This model is perfect for Desktop Video or to be used for distribution of signals in Multimedia or Monitoring applications. All Processing and Distribution modules include power supply and owners manual. An optional base holder (V-CB1) is available for use in desktop applications.

DETAILED SPECS - MARSHALL MD-0114 VIDEO DISTRIBUTION AMPLIFIER:

• Dimensions 4.75"W x 3.75"D x 1.0"H
• Signal Input BNC connection of composite video - PAL or SMPTE
• Signal Output 4 BNC
• Frequency Response 5 to 7 Mhz
• K factor <1%
• Signal to Noise >60 db
• Differential gain/phase <1% / <1°
• Cable length 600' max using Belden 8281 or equivalent
• Power required 12 V D.C. supplied from external supply
• Weight 0.55 Lbs
