Marshall OR-434 4.3 inch Fully Featured 2RU Quad Broadcast LCD Rack Mount Monitor

Our Price $4268.99 Including Shipping

Back to Marshall Orchid LCD Racks

KEY POINTS - Marshall or434 4.3 inch fully featured 2ru quad broadcast lcd rack mount monitor:

Real-Time Waveform Monitor

Real-Time Color Vectorscope

Sixteen 64-segment Tri-color Audio Meters

Tri-Color Tally Indicator

On-Screen Time Code

7 assignable GPI inputs

Adjustable Color Temperature

Optional Input Modules

Auto-Sensing Front Panel Headphone Jack

Auto-Sensing Rear Unbalanced Stereo Output

Adjustable Clipping Indicator

Precision Gamma Settings

Adjustable Color Temperature

Variety of Safety Markers

HDSDI / SDI Inputs and Outputs

Auto White Balance Calibration - Compatible with Konica Minolta CA-210 Color Analyzer

SUMMARY - Marshall or434 4.3 inch Fully Featured 2RU Quad Broadcast LCD Rack Mount Monitor:

The Marshall OR-434 Quad 4.3 inch ORCHID™ rack mount monitor has all the features that customers have asked for and more. The OR-434 is only 2RU and has 5 user-assignable function keys with a joystick menu system. The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in three different aspect ratios including Full Screen. The built-in Vectorscope displays in full color and can also be displayed in three different ratios. The Vectorscope has adjustable gain from 1x to 5x. All screens are color matched at the factory and can be auto-adjusted in the field using an optional color probe system. The Marshall OR-434 will de-embed and display up to 16 channels of audio and allow the user to monitor any two channels at once through the headphone jack or rear line output jack. The 64-segment tri-color bar graph meters have user-adjustable reference levels. The OR-434 comes standard with auto-sensing HDSDI inputs, re-clocked outputs, and an open modular slot for additional inputs in the future.

DETAILED SPECS - MARSHALL OR-434 4.3 INCH FULLY FEATURED 2RU QUAD BROADCAST LCD RACK MOUNT MONITOR:

SPECIFICATIONS
Display (Viewing Area)	4.3" x 4
Resolution	800 x 480
Aspect Ratio	16:10
Brightness (in cd/m²)	200
Contrast Ratio	400:1
Available Input Types (per screen)	HDSDI
Available # of Slots (per screen)	1
Available Audio Output (per screen)	2 Stereo (3.5mm - Front and Rear)
Power Consumption	48W (4A)
Power Supply	DC 12V 4-Pin XLR
Weight	Approx. 5.3 lbs. (6 lbs. with Power Adapter)
Dimensions	18.9"W x 3.5"H x 2.4"D

Manufacturer Page: www.lcdracks.com

marshall or434 lcd monitor display or-434

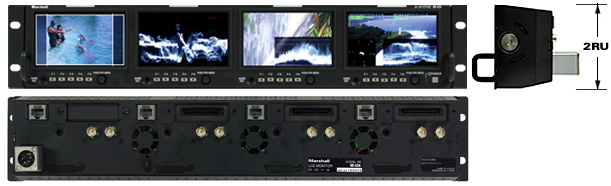

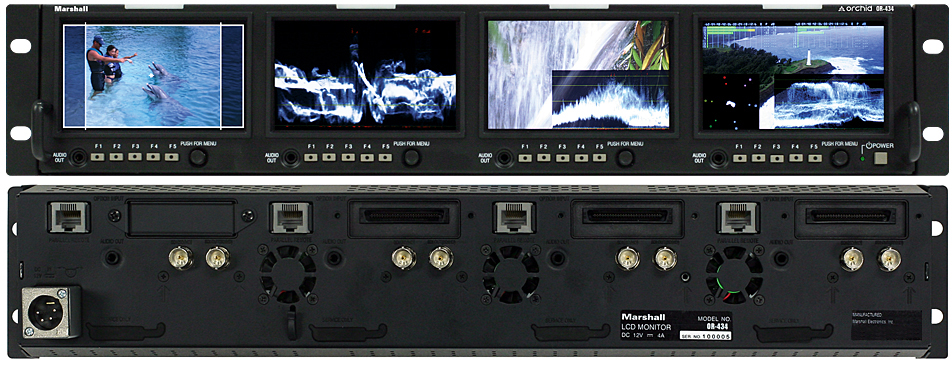

Click for Larger Image
