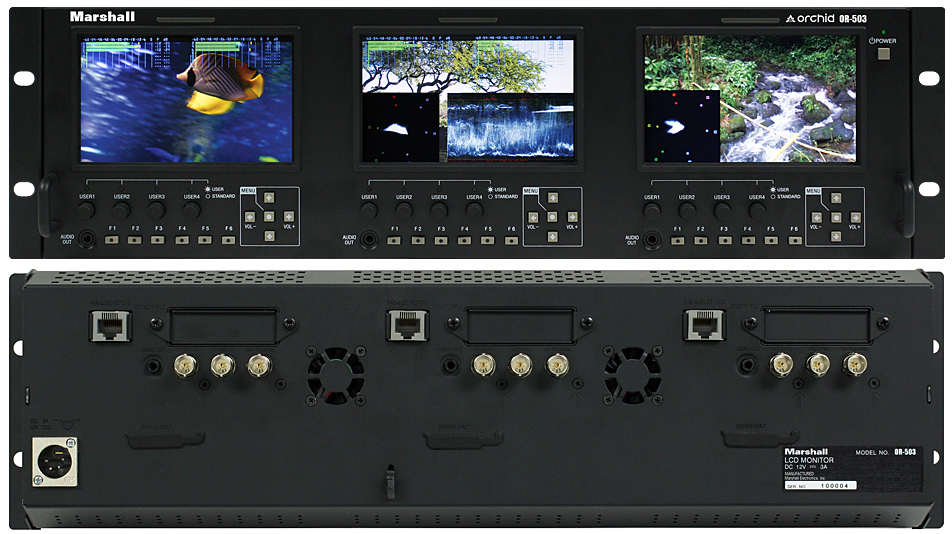

Marshall OR-503 5 inch Fully Featured 3RU Triple Broadcast LCD Rack Mount Monitor

Our Price $3773.99 Including Shipping

Back to Marshall Orchid LCD Racks

KEY POINTS - Marshall or503 5 inch fully featured 3ru triple broadcast lcd rack mount monitor:

Real-Time Waveform Monitor

Real-Time Color Vectorscope

Sixteen 64-segment Tri-color Audio Meters

Tri-Color Tally Indicator

On-Screen Time Code

7 assignable GPI inputs

Adjustable Color Temperature

Optional Input Modules

Auto-Sensing Front Panel Headphone Jack

Auto-Sensing Rear Unbalanced Stereo Output

Adjustable Clipping Indicator

Precision Gamma Settings

Adjustable Color Temperature

Variety of Safety Markers

HDSDI / SDI Inputs and Outputs

Auto White Balance Calibration - Compatible with Konica Minolta CA-210 Color Analyzer

SUMMARY - Marshall or503 5 inch Fully Featured 3RU Triple Broadcast LCD Rack Mount Monitor:

The Marshall OR-503 Triple 5 inch ORCHID™ rack mount monitor has all the features that customers have asked for and more. The OR-503 is 3RU and has 6 user-assignable function keys as well as 4 user-assignable rotary encoders. This unit also utilizes a 5 button menu system. The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in three different aspect ratios including Full Screen. The built-in Vectorscope displays in full color and can also be displayed in three different ratios. The Vectorscope has adjustable gain from 1x to 5x. All screens are color matched at the factory and can be auto-adjusted in the field using an optional color probe system. The OR-503 will de-embed and display up to 16 channels of audio and allow the user to monitor any two channels at once through the headphone jack or rear line output jack. The 64-segment tri-color bar graph meters have user-adjustable reference levels. The OR-503 comes standard with auto-sensing HDSDI inputs, re-clocked outputs, and open modular slots for additional inputs in the future.

DETAILED SPECS - MARSHALL OR-503 5 INCH FULLY FEATURED 3RU TRIPLE BROADCAST LCD RACK MOUNT MONITOR:

SPECIFICATIONS
Display (Viewing Area)	5" x 3
Resolution	800 x 480
Aspect Ratio	16:10
Brightness (in cd/m²)	300
Contrast Ratio	500:1
Available Input Types (per screen)	HDSDI x 2
Available # of Slots (per screen)	1
Available Audio Output (per screen)	2 Stereo (3.5mm - Front and Rear)
Power Consumption	36W (3A)
Power Supply	DC 12V 4-Pin XLR
Weight	Approx. 6 lbs. (6.6 lbs. with Power Adapter)
Dimensions	18.9"W x 5.2 "H x 2.4"D

Manufacturer Page: www.lcdracks.com

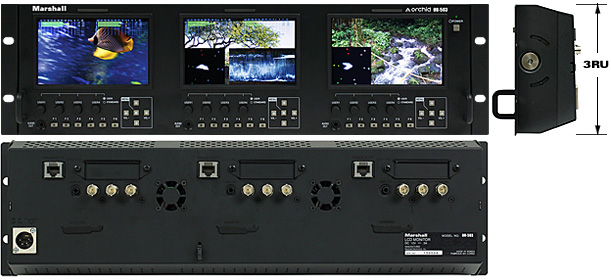

marshall or503 lcd monitor display or-503
