Marshall OR-841-HDSDI 8.4 inch Full Featured Single Field / Camera Top Monitor with HDSDI / SDI inputs only

Our Price $2783.99 Including Shipping

Back to Marshall Orchid LCD Racks

KEY POINTS - Marshall or841hdsdi 8.4 inch full featured single field / camera top monitor with hdsdi / sdi inputs only:

Real-Time Waveform Monitor

Real-Time Color Vectorscope

Auto White Balance Calibration

Sixteen 64-segment Tri-color Audio Meters

Tri-Color Tally Indicator

On-Screen Time Code

7 assignable GPI inputs

Adjustable Color Temperature

Auto-Sensing Front Panel Headphone Jack

Auto-Sensing Rear Unbalanced Stereo Output

Adjustable Clipping Indicator

Precision Gamma Settings

Adjustable Color Temperature

Variety of Safety Markers

HDSDI / SDI Inputs and Output

Supports 3 different Battery Adapters

Factory-installed Protective Screen

Adjustable / Detachable Stand with top handle

SUMMARY - Marshall or841hdsdi 8.4 inch Full Featured Single Field / Camera Top Monitor with HDSDI / SDI inputs only:

The Marshall OR-841-HDSDI 8.4 inch ORCHID™ rack mountable / portable field monitor has all the features that customers have asked for and more. The OR-841-HDSDI is 4RU and has 9 user-assignable function keys as well as a rotary menu system. The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in three different aspect ratios including Full Screen. The built-in Vectorscope displays in full color and can also be displayed in three different ratios. The Vectorscope has adjustable gain from 1x to 5x. The OR-841-HDSDI will also de-embed and display up to 16 channels of audio and allow the user to monitor any two channels at once through the headphone jack or rear line output jack. Also includes built-in front panel speaker and rear panel stereo input for audio monitoring. The 64-segment tri-color bar graph meters have user-adjustable reference levels. The OR-841-HDSDI comes standard with auto-sensing HDSDI inputs and re-clocked output. This unit can be used in a rack, on a desktop, in the field, or mounted to a camera.

DETAILED SPECS - MARSHALL OR-841-HDSDI 8.4 INCH FULL FEATURED SINGLE FIELD / CAMERA TOP MONITOR WITH HDSDI / SDI INPUTS ONLY:

SPECIFICATIONS
Display (Viewing Area)	8.4"
Resolution	1024 x 768
Aspect Ratio	4:3
Brightness (in cd/m²)	400
Contrast Ratio	500:1
Available Input Types	HDSDI x 2
Available Audio Output (per screen)	2 Stereo (3.5mm - Front and Rear)
Power Consumption	18W (1.5A)
Power Supply	DC 12V 4-Pin XLR
Weight	Approx. 4 lbs. (4.6 lbs. with Power Adapter)
Dimensions	8.6"W x 8.2 "H x 1.7"D
Available Battery Adapter Configurations	"AB" - (Anton/Bauer) / "VM" - (V-Mount) / "SB" - (Sony B series)

Manufacturer Page: www.lcdracks.com

marshall or841hdsdi lcd monitor display or-841-hdsdi

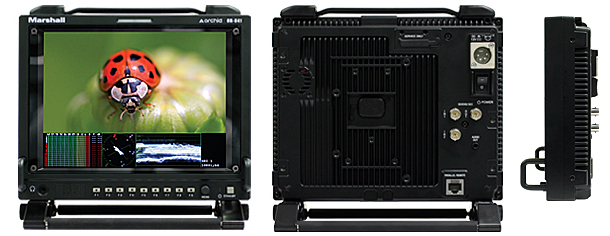

Click for Larger Image
