pioneer htp-725dv 6 channel
digital surround sound system with progressive scan dvd
Pioneer

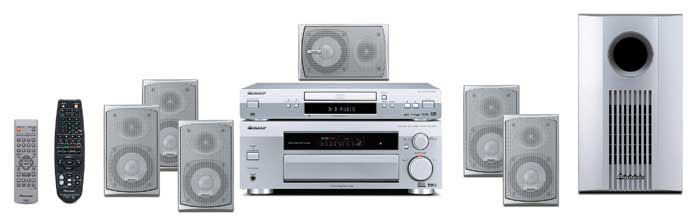

HTP-725DV digital home entertainment system overview
This cutting edge home theater
system provides everything a music and movie enthusiast needs to
create the ultimate multi-channel entertainment environment. It
takes advantage of the emerging DVD-Audio technology, offering
consumers access to discs created in this new format. The DVD player
plays DVD-Video, DVD-Audio, CD, CD-R/RW and MP3 discs. It offers
Pioneer's top-of-the-line PureCinema™ progressive scan circuit
with 2:3 pull down.
PIONEER HTP725DV 6.1 Dolby Digital DTS
Surround Sound System features
DV-656A DVD-A & Progressive
Scan DVD Player
DVD-Audio Playback
MP-3 Compatible
Progressive Scan with 2/3
Pull-Down
Advanced GUI w/ Set-up Navigator
Twin-Wave Laser Pick-up
192kHz/24-Bit DAC
10-Bit / 27Mhz Video DAC w/Vitter-Bi
error correction
6 Piece 2-Way Satellite
Loudspeakers
3/4 inch Piezo tweeter
3 Inch Midrange Woofer
High Frequency Wave Guide
Integrated Low Diffraction
Baffle
Freq. Response: 150 - 20KHz
Sensitivity: 85 dB @ 1m/2.83V ms
Maximum output: 102 dB SPL
Amp requirements: 15-100 Watts
100 Watt Powered Subwoofer
8 Inch Woofer
Bass Reflex Enclosure
Low standby power consumption
(less than 1W)
Transformer-less dynamic power
supply
Bass Level Control
VSX-D811S Digital A/V Receiver
Power: 100 Watts 6 @ 8 Ohm
Dolby Digital EX
Dolby Pro-Logic II
DTS-ES Discrete & DTS-NEO:6
Virtual Surround Back
6 Channel Stereo
6.1 Expanded Theater
Midnight Mode
96/24 DAC
4 Audio (inc Tuner) & 4 A/V
Inputs
1 Audio, 1 A/V & 1 Video
Outputs
5 Digital Inputs (2 coax.,2
opt., Front Opt.)
1 Digital Output
S-Video (4 in/2 out)
Component Video (2 In / 1 Out)
Front AV Input w/S-Video &
Opt Digital In
7.1 Ch. Inputs/Pre-Out 5.1 (+ 2)
Large Banana Speaker Terminals -
All
Smart Remote
Quick Set-Up Room Tuning
Tuner Editing with Station
Naming
pioneer htp-725dv digital surround sound
home theater package specifications
Audio
Output Wattage:
100 x 6 watts
6
or 6.1 Channel Satellite-Speaker System (Dolby Digital EX
Surround):
Yes
DTS
(Digital Theater System) Surround Decoding:
Yes
Dolby
Digital Decoding:
Yes
Preset
Sound Fields:
Yes
Dolby
Pro Logic Decoding:
Yes
Dolby
Digital Ready:
--
Playable
Formats (Read Only):
CD-R; CD-RW; Audio
CD's; MP3; DVD
DVD
Player:
Yes
CDs
Supported:
1
DVDs
Supported:
1
Progressive
Scan Output:
Info Unavailable
Component
Video Inputs:
2
Component
Video Outputs:
1
S-Video
Inputs:
4 S-Video Inputs
S-Video
Outputs:
2
Digital
Audio Output:
Yes
Non-Categorized
Outputs:
1 Audio, 1 A/V
& 1 Video; Pre-Out 5.1 (+ 2)
Non-Categorized
Inputs:
7.1 Ch.;Front AV
w/S-Video & Opt Digital In; 4 Audio (inc Tuner) & 4
A/V; 5 Digital (2 coax.,2 opt
