Mitsubishi x390u xga 2200 Ansi Lumen LCD Video Projector
Product
Description - mitsubishi x390u lcd video projector
Superior performance, functionality and connectivity ensure that the LVP-X390U
has the versatility to meet your presentation needs. Packaged in the well-designed
portable model are 2200 ANSI lumen brightness, SXGA resolution compatibility and
original image reproduction technologies Natural Color Matrix. Also incorporated
are handy presentation features like 2-Live Picture-in-Picture, Digital-Expanded
Zoom and Digital Keystone Correction (with one-button remote controller adjustment)
as well as numerous functions that keep projector operation during a presentation
simple and easy.
Features
of the Mitsubishi X-390U LCD projector:

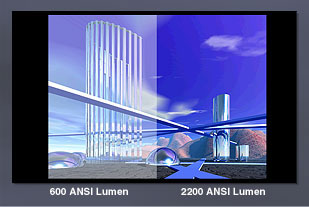

Use the 2200 ANSI lumen power of the X390U to give brilliant, clear image
reproduction in large meeting rooms or lecture halls. Click
for Picture.
Incorporating the latest data and image processing technologies, projectors
with SXGA resolution (1,280 x 1,024) projection compatibility provide
the reproduction of high-definition images in bright, true-to-life color.
Click for Picture.

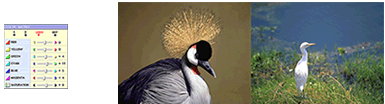

Natural Color Matrix is an original technology developed by Mitsubishi
Electric for use in the lineup of LVP projectors. The special algorithm
created gives the polysilicon panel display technology used in the company's
projectors color spectrums equivalent to that of CRTs. The six basic colorations
(RGB and YMC) can be adjusted separately, enabling vivid reproduction
of even the most subtle colors such as pastels and flesh tones Click
for Picture.
2-Live Picture-in-Picture enables the presentation of images from two
separate sources such as DVD and computer at the same time, effectively
doubling visual information and presentation impact. Using this feature,
a smaller image is inlaid in a corner of the main screen. Either still
or moving images, or a combination of both can be projected simultaneously.
Click for Picture.
Sometimes it's not possible to set up the projector perpendicular to the
screen. This can cause distortion to the image projected. Digital Keystone
Correction readjusts trapezoidal and jagged screen images that result
from oblique image projection to give an undistorted picture. Click
for Picture.
This feature allows you to choose a section of the main screen image and
magnify it. As the data of the selected section is magnified via digital
signal processing, details of the enlarged image remain true to the original.
Click for Picture.

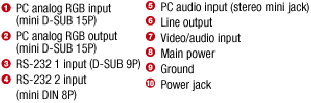

Ports are provided for multiple data sources including computer, video
and RS-232C serial port connections. (picture below)
A universal serial bus (USB) port is provided for connecting a USB mouse.
This feature adds greater convenience and ease for projector operation.

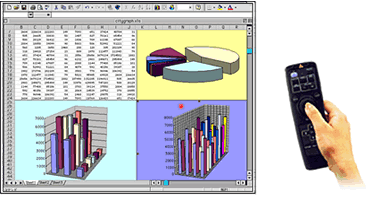

A laser pointer is featured in the handheld remote control unit, allowing
you to quickly and easily pinpoint or highlight specific parts of an image
on screen. Click for Picture.

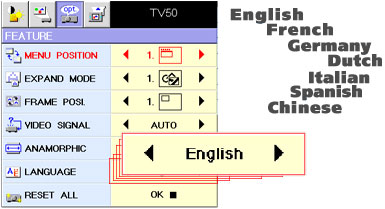

Every LVP Series projector is equipped with an on-screen operations menu
that is available in multiple languages. Simply choose the one that best
fits your needs. Click for
Picture.
Product Specifications - mitsubishi x390
lcd video projector
Display
technology
1.3" Polysilicon
panel x 3
Output
terminals
RGB : Mini D-sub 15pin x 1
Audio : stereo mini jack x
1 (3.5mm)
Resolution
1024 x 768 (Total 2,359,296
pixels), 540 video lines
Communication
terminals
RS-232C x 1 (Direct command
is available DIN 8pin)
Brightness
2200 ANSI lumens
USB terminal for Mouse x 1
Colors
16,770,000 colors
Wired remote terminal x 1 (stereo
mini jack 3.5mm)
NTSC, NTSC 4.43, PAL (including
PAL-M, N), SECAM, PAL-60
Power
supply
AC100 ~ 240V ±10%,
50/60Hz
DVD, HDTV (720p/1080i)
