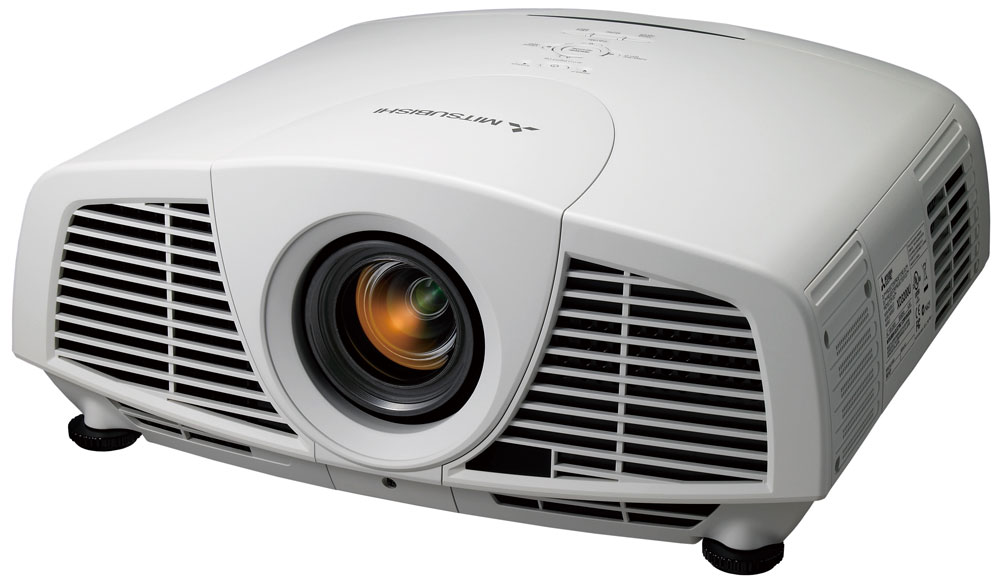

OVERVIEW - Mitsubishi xd3200u XGA DLP Fixed Installation Video Projector with 4500 ANSI Lumens:
The Mitsubishi XD3200U XGA projector is an installation projector that introduces a new lamp drive and color wheel systems that reduce operating costs and extend the life of your presentation projector—helping you stretch your budget dollars. This DLP projector shines at 4500 lumens and has a 2500:1 contrast to display bright and sharp images in large auditoriums, lecture halls or other venues where ambient light may be present.
FEATURES - Mitsubishi xd3200u xga dlp fixed installation video projector with 4500 ansi lumens:
Simple Lens Changes
Easy to remove and install optional lenses.
Optional Lenses
Variety of lenses to meet your application needs.
Motorized Lens Shift
Easily adjustable horizontal or vertical lens shift provides flexibility for installing and displaying image. Motorized focus for accurate image adjustment.
Security Features
Compatible Kensington lock slot; Password lockout capability which protects the projector from unauthorized use.
Filter-Free
No filter required, resistant to dust and dirt, no clogged filters. Reduced maintenance fees.
Digital Inputs
DVI-D and HDMI inputs for true digital connections from both PC or video sources.
Brilliant Color™
Allows for more vivid, rich colors while increasing mid-tones and superior black levels.
Color Enhancer™
Allows the user to control the BC technology to meet the most demanding color preferences. Mitsubishi Exclusive.
High Brightness
Able to project images in large venue or less controlled lighting environments.
Cable Cover
Clean look. Hide those straggling cables and cords.
RJ45 LAN Management Control
Provides flexible asset management and projector control via network administration.
Ultra Quiet Noise Level
Operates at a hushed 26dba (low mode)
SPECIFICATIONS - MITSUBISHI XD3200U XGA DLP FIXED INSTALLATION VIDEO PROJECTOR WITH 4500 ANSI LUMENS:
Display
Imaging Technology
0.7", 1-Chip DMD, 12 deg. LVDS, Dark Chip 3™ with DDP3020
RGB: Mini D-sub 15pin x 1, 5 BNC x 1, DVI-D (with HDCP) x 1, HDMI x 1
Audio: Stereo mini jack (ø 3.5mm) x 2
Video: RCA x 1 or BNC x 1, S-VIDEO x 1 or BNC (Y, C) x 1
Audio: RCA (LR) x 2
Computer Monitor Loop-Out
RGB: Mini D-sub 15pin x 1, Audio: Stereo mini jack (ø 3.5mm) x 1, DC OUT 5V 1.5A (Max)
RS-232 Communication Support
RS-232C (D-sub 9pin) x 1 (Direct command is available)
Audio Speaker
10W Mono
Audio Out
Variable
USB Mouse Support
USB (for mouse) x 1
Lamp
Estimated Lamp Life Rating
4000 hours (low mode)
Usage Replacement Lamp
Replacement Lamp Bulb (VLT-XD3200LP)
Noise Level
Decibels
33dBA (standard mode)
26dBA (low mode)
Physical
Weight
22.7 lbs.
Dimensions (W x H x D)
17.7" x 7.4" x 14.7"
Power Consumption
430W/4.5A
Power Requirements
AC 100-240V, 50/60 Hz
Service and Support
3-Years Limited Parts and Labor Warranty, 3-Years Express Replacement Assistance (ERA), 90-Days lamp warranty, 3-year or 10,000-hour on the TI-DLP® DMD Chip (Main imaging device)
Included Accessories
AC Power Cable, RGB cable, RS-232C cable, Terminal Cover, Remote Unit (incl. Battery), User Manual CD, Safety Manual
