Mitsubishi XD500U 2200 ANSI Lumens Portable DLP Video Projector

Item Currently Unavailable

MITSUBISHI XD500U 2200 ANSI Lumens Portable DLP Video Projector
Accessories
Ceiling Mount (PMD-.5)	72.49
Spare Lamp (VLT-XD500LP)	264.78
2 Year Warranty Extension	Price: ~~124.99~~ You Save 25% 93.74
4 Year Warranty Extension	Price: ~~214.99~~ You Save 25% 161.24

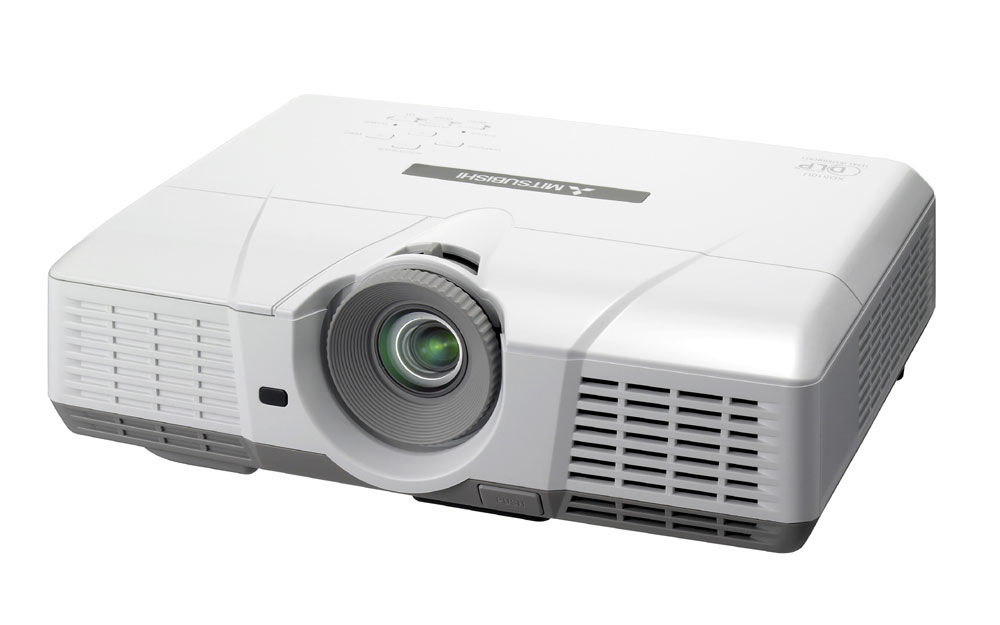

Click to Enlarge Image

KEY POINTS - XD500U Mitsubishi 2200 ANSI Lumens Portable DLP Video Projector:

Native 1024 x 768 XGA resolution
2200 ANSI lumens brightness
2000:1 contrast ratio
6 segment color wheel
RS-232 support

SUMMARY - Mitsubishi xd500u 2200 ANSI Lumens Portable DLP Video Projector:

The Mitsubishi XD500U portable DLP projector sets a new standard in richer color and long-life performance. Formerly available only in high-end projectors, the XD500U projector brings you BrilliantColor performance by incorporating the latest TI DDP2230 chip set. The XD500U is ultra bright at 2200 ANSI lumens and with a 2000:1 contrast ratio, you can use it as a classroom or conference room projector, or in other spaces with lots of ambient light.

DETAILED SPECS - MITSUBISHI XD500U PORTABLE DLP PROJECTOR:

Display
Imaging Technology	0.55" 1-Chip DMD, 12 Degree LVDS, DDP2230
Brightness/Lumens	2200 ANSI Lumens
Native Resolution	1024 x768
Maximum Resolution	1280 x 1024
Viewable Size	40 - 300" Diagonal
Contrast Ratio	2000 : 1 (on/off)
Color Wheel	6seg. Color Wheel (R/G/B/W/Y/C)

Lens
Lens Throw Ratio	1.8 - 2.1
Zoom & Focus Adjustment	Manual Focus & Zoom Lens (Zoom Ratio 1.2:1)

Compatibility
PC, MAC Compatibility	Yes

Operation
Scanning Frequency	[H] 15 - 80 kHz, [V] 50 - 85 Hz, [Dot clock max.110 MHz

Interface
NTSC, PAL, SECAM	NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60, Component Video ; 480i/p(525i/p), 576i/p(625i/p), 720p(750p), 1080i(1125i 60Hz), 1080i(1125i 50Hz), 1080i(1250i 50Hz)
Computer/Video Input Support	RGB : mini D-sub15pin x 2, Video : RCA x 1 + S-video x 1
Computer Monitor Loop-Out	Yes
RS-232 Communication Support	RS232C; D-sub 9pin x 1
Audio Speaker/Audio Out	2 W Mono
USB Mouse Support	USB terminal for Page Up/Down

Lamp
Lamp Life	3000 hours (low mode)
Usage Replacement Lamp	Replacement Lamp Bulb (VLT-XD500LP)

Physical
Weight	6.5 lbs.
Dimensions (W x H x D)	13.1 x 4.0 x 9.8"
Power Consumption	330W/3.3A
Power Requirements	AC 100 - 240 V, 50/60HZ

Service and Support

3-Years Limited Parts and Labor Warranty, 3-Years Express Replacement Assistance (ERA), 1 year lamp warranty

Included Accessories

Soft carrying bag, Remote control (With 2 batteries), Power cable x1, VGA(D-sub) cable x1, Composite cable, User-Manual (CD-ROM), Quick Guide/Safety Manual, Lens Cap

Manufacturer Link: www.mitsubishi-presentations.com
