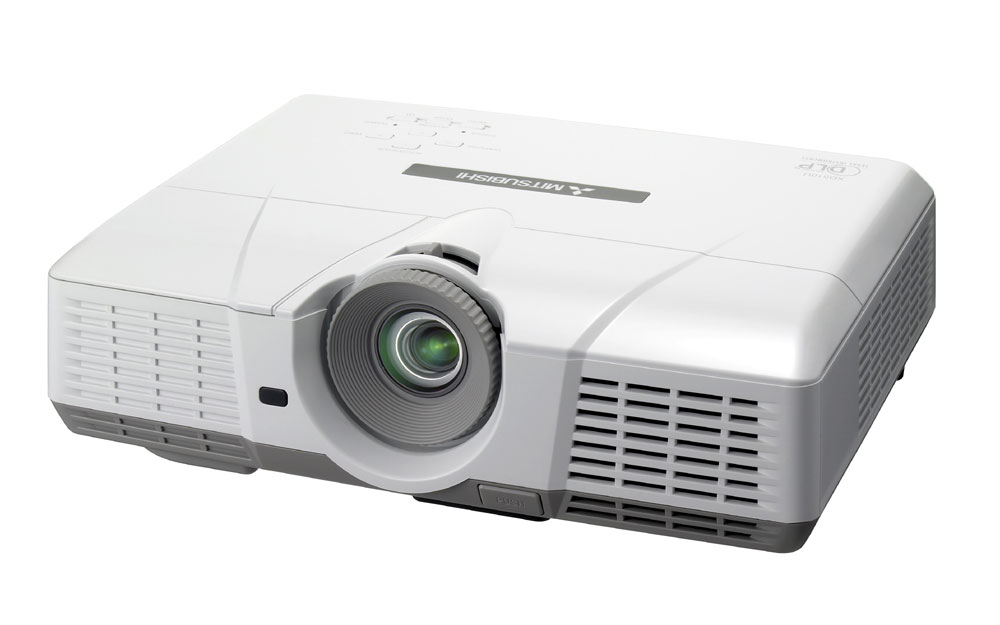

Mitsubishi XD520U
3000 ANSI Lumens Portable DLP Video Projector
Our Price $1055.36 Including 3 - 5 Day Shipping
Back to
Mitsubishi Projector Page |
|
|
Click for Larger Image |
FEATURES - XD520U Mitsubishi 3000 ANSI Lumens Portable DLP Video Projector:
- Native 1024 x 768 XGA resolution
- 3000 ANSI lumens brightness
- 2000:1 contrast ratio
- 6 segment colour wheel
- RS-232 support
|
OVERVIEW - Mitsubishi xd520u 3000 ANSI Lumens Portable DLP Video Projector:
The Mitsubishi XD520U portable DLP projector is engineered with technology that produces rich colours and high brightness. It includes the latest Texas Instruments DDP2230 chip set that gives your presentations BrilliantColor performance. The XD520U produces a bright 3000 ANSI lumens image with an amazing 2000:1 contrast ratio making it ideal for video projector presentations in classrooms, conference rooms, or other spaces with lots of ambient light. Adding the new TI chip set and our six-segment colour wheel enables the Mitsubishi XD520U projector to produce a wider colour palette by blending cyan and yellow segments in addition to the standard red, green, white and blue. Plus the addition of a variable illumination technique makes selected colours more vivid by automatically adjusting the lamp power while maintaining the overall brightness.
|
SPECIFICATIONS - MITSUBISHI XD520U PORTABLE DLP PROJECTOR:
| Display |
| Imaging Technology |
0.55" 1-Chip DMD, 12 Degree LVDS, DDP 2230 |
| Brightness/Lumens |
3000 ANSI Lumens |
| Native Resolution |
1024 x768 |
| Maximum Resolution |
1280 x 1024 |
| Viewable Size |
40-300” Diagonal |
| Contrast Ratio |
2000 : 1 (on/off) |
| Colour Wheel |
6seg. Colour Wheel (R/G/B/W/Y/C) |
| Lens |
| Lens Throw Ratio |
1.6 - 1.96 |
| Zoom & Focus Adjustment |
Manual Focus & Zoom Lens (Zoom Ratio 1.2:1) |
| Compatibility |
| PC, MAC Compatibility |
Yes |
| Operation |
| Scanning Frequency |
[H] 15 - 80 kHz, [V] 50 - 85 Hz, Dot clock max.110 MHz |
| Interface |
| NTSC, PAL, SECAM |
NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60, Component Video ; 480i/p(525i/p), 576i/p(625i/p), 720p(750p), 1080i(1125i 60Hz), 1080i(1125i 50Hz) |
| Computer/Video Input Support |
RGB ; mini D-sub 15pin x 2; PC Audio; Stereo mini jack (ø3.5mm) x 1; Video ; RCA x 1 + S-VIDEO x 1, Video Audio ; RCA jack (L/R) x 1 |
| Computer Monitor Loop-Out |
Yes |
| RS-232 Communication Support |
RS232C; D-sub 9pin x 1 |
| Audio Speaker/Audio Out |
2 W Mono |
| USB Mouse Support |
USB terminal for Page Up/Down |
| Lamp |
| Lamp Life |
3000 hours (low mode) |
| Usage Replacement Lamp |
Replacement Lamp Bulb (VLT-XD520LP) |
| Physical |
| Weight |
7 lbs. |
| Dimensions (W x H x D) |
13.1" x 4.0" x 9.8" |
| Power Consumption |
330W/3.3A |
| Power Requirements |
AC 100 - 240 V, 50/60HZ |
| Service and Support |
| 3-Years Limited Parts and Labor Warranty, 3-Years Express Replacement Assistance (ERA), 90-Days lamp warranty |
| Included Accessories |
| Soft carrying bag, Remote control (With 2 batteries), Power cable x1, VGA (D-sub) cable x1, Composite cable, User-Manual (CD-ROM), Quick Guide/Safety Manual, Lens Cap |
Manufacturer Page: www.mitsubishi-presentations.com
|
