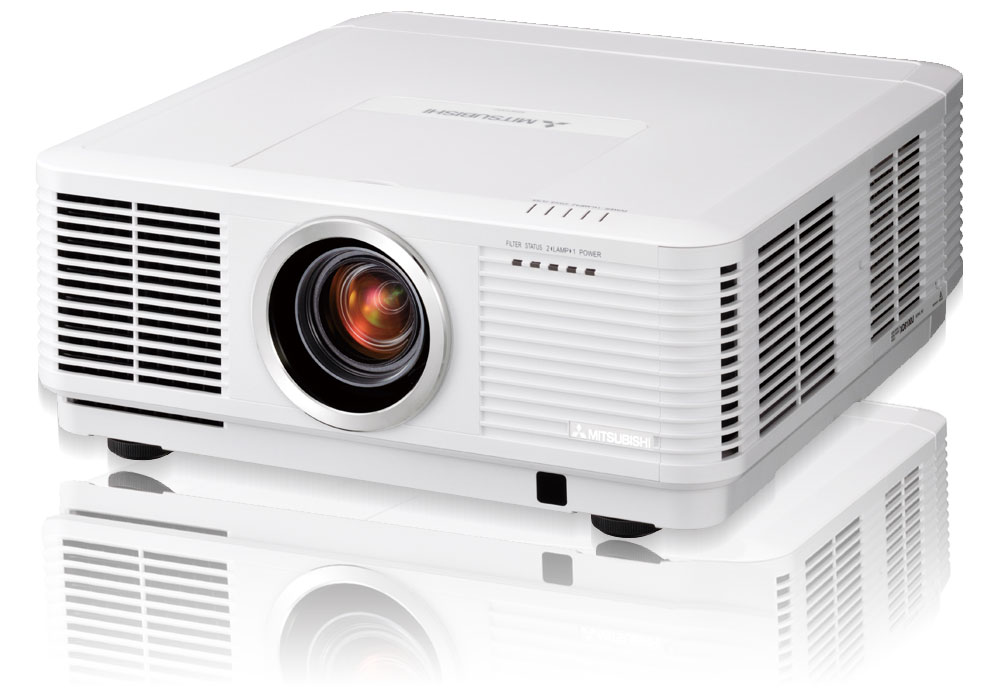

KEY POINTS - Mitsubishi xd8100u dlp large venue video projector:
Continuous non-stop 24/7 operability with dual lamp and lamp relay modes
Automated and reusable self-cleaning filter for a lower total cost of ownership
Ingenious heat pipe cooling technology that delivers projection cooling, energy savings and quietness as well
Super Resolution technology that delivers ultra-sharp detail projection
Built-in support for Crestron RoomView and AMX Device Discovery for remote management
Edge blending for both side-by-side as well as top-bottom projection
Supports geometric projection on curved surfaces as well as 360 degree projection
Closed Caption support
Estimated lamp life of up to 4000hrs (low mode)
Consumes less than 1W of power consumption for increased energy savings (low mode)
Natural Color Matrix support independent controlled color adjustments with effecting other colors
Side-access lamp design for easy and convenient lamp access
Delivers a bright 7000 lumens image
Accepts 5 optional lenses, ranging from a 0.8 rear projection fixed short throw lens all the way up to our new 9.0 UZ lens
SUMMARY - Mitsubishi xd8100u DLP Large Venue Video Projector:
The new JVC XD8100U XGA has raised the bar for digital projectors. The xd8100u's dual-lamp gives you superior performance and reliability, with brightness, super resolution and continuous-use capability. If you’re looking for a reliable, quality solution for presenting in large, bright rooms or auditoriums, the XD8100U data projector is the answer.
DETAILED SPECS - MITSUBISHI XD8100U DLP LARGE VENUE VIDEO PROJECTOR:
Display
Imaging Technology
0.7" 1-Chip DMD, 12deg.LVDS, Dark Chip 3™ with DDP3020
PC: 5 BNC x 1, Mini D-Sub 15pin x 1, DVI-D(with HDCP) x 1 Video: BNC x 1, S-VIDEO (4pin) x 1, HDMI x 1
12V Trigger
n/a
Computer Monitor Loop-Out
n/a
RS-232 Communication Support
RS-232C (IN): D-Sub 9pin(male) x 1
RS-232C (OUT): D-Sub 9pin(male) x 1
Audio Speaker
n/a
Audio Out
n/a
USB Mouse Support
n/a
Lamp
Estimated Lamp Life Rating
4000 hours (low mode)
Usage Replacement Lamp
Replacement Lamp Bulb (VLT-XD8000LP)
Noise Level
Decibels
36dBA (standard mode)
28dBA (low mode)
Physical
Weight
35.3 lbs.
Dimensions (W x H x D)
19.3" x 7.9" x 16.6"
Power Consumption
860W / 8.7A
Power Requirements
AC 100 - 240 V, 50 / 60 Hz
Service and Support
3-Years Limited Parts and Labor Warranty
3-Years Express Replacement Assistance (ERA), 90-Days lamp warranty
3-year or 10,000-hour on the TI-DLP® DMD Chip (Main imaging device)
24/7 Operation Warranty:
1-Year Limited Parts and Labor Warranty
1-Year Express Replacement Assistance (ERA)
90 days or 300hrs lamp warranty (whichever comes first)
