Mitsubishi XL5900LU LCD Video Projector mitsubishi xl5900u

Display Technology

1.3" polysilicon LCD panel x 3 with micro-lens array

Resolution

XGA 1024 x 768 native, SXGA 1280 x 1024 max., 600 viewable video lines

Brightness

3900 ANSI Lumens

Contrast Ratio

600:1

Lens throw ratio

1.8 ~ 2.1 (Not applicable to XL5900LU)

Zoom/Focus

Power zoom, focus and lens shift (Not applicable to XL5900LU)

Aspect Ratio

(4:3 aspect ratio) 60" ~ 300" (Not applicable to XL5900LU)

Computer Compatibility

VGA ~ SXGA 640 x 480 ~ 1024 x 768, compressed 1280 x 1024 True: 1024 x 768, Sync on green available

Video Compatibility

NTSC/NTSC 4.43/PAL (including PAL-M, N)/SECAM/PAL-60/DVD (component) HDTV input ready (525p, 720p, 1080i)

Input Terminals

RGB: mini D-sub 15 pin x 1, Video: RCA/BNC + S video x 1, 5 BNC RGB Audio: RCA x 1

Output Terminals

RGB: mini D-sub 15 pin x 1

Lamp

270 W SHP

Audio Speaker

5 W Mono

Scanning Rates

Horizontal: 15 - 100 kHz, Vertical: 50 – 120 Hz, Dot clock: 170 MHz

Remote Control

Full function wireless remote with mouse and laser pointer

Power Consumption

380 W

Dimensions

14.6" x 6.9" x 17.5"

Weight

19.9 lbs. (9 kg)

Power Supply

AC 100 ~ 240V / +10%, 50/60 Hz

Safety Approvals

CSA C22.2, UL60950, FCC Class-B

Warranty

Three-year parts and labor warranty and 90 day warranty on lamp (both warranties available in U.S. and Canada). Also includes a three-year Express Replacement Assistance program that guarantees free replacement projector shipped overnight for next day delivery when and where available

Accessories

Standard: AC power cable; D-sub RGB cable; RS-232C cable; AV cable; USB cable; remote control with battery; mouse adapter; lens cap; user and quick reference guide

Optional: Spare lamp (Part No. VLT-XL5950LP); ceiling mount bracket (Part No. XL5950CM); wheeled carrying case (Part No. XL5950-ATAC); ProjectorView Networking System; lenses (rear, short, long, tele)

Special features

ColorView Natural Color Matrix; sRGB color compliance; zoom and focus lens; Picture-In-Picture; 3D CineView; ProjectorView Networking System; horizontal and vertical lens shift; dual serial port; Hide-The-Cables connector panel cover, anti-theft alarm with motion sensor

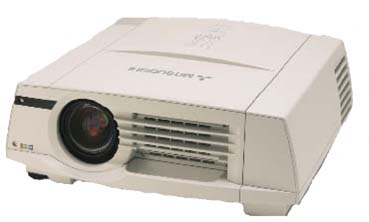

Mitsubishi XL5900U/LU XGA 3900 ANSI Lumens LCD Video Projector
