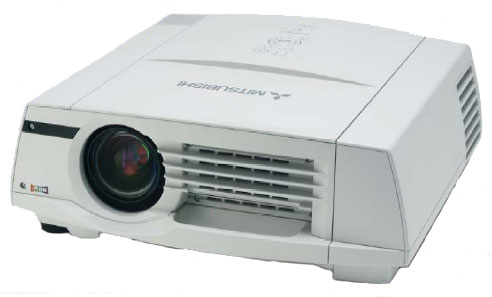

Mitsubishi XL5980U/LU 5500 ANSI Lumens Large Venue LCD Video Projector

Return to Mitsubishi Video Projectors Page

KEY POINTS - XL5980U Mitsubishi 5500 ANSI Lumens LCD Video Projector:

• Native 1024 x 768 resolution
• 5500 ANSI Lumens brightness
• 600:1 contrast ratio
• Optional lenses available to meet your application needs

SUMMARY - Mitsubishi xl5980u 5500 ANSI Lumens LCD Video Projector:

Filling your large venue with vivid images is the Mitsubishi XL5980U/LU LCD multimedia projector, featuring our most innovative color technology. It's made for big venues, including a super bright 5500 ANSI lumens, a sharp 600:1 contrast ratio. Large spaces are a specialty for this projector, such as auditoriums or churches, large conference rooms or in lecture halls and other spaces with ambient light. Or place it in your biggest trade show booths for eye-catching displays.

The projector also provides motorized horizontal and vertical lens shift, offering extreme flexibility for most installations. Once the projector is in place, the picture can be readjusted optically or digitally, regardless of the screen used, without taking the projector out of its mount. A cable cover streamlines the look of your installation as well.

DETAILED SPECS - MITSUBISHI XL5980U LARGE VENUE LCD PROJECTOR:

• Display Technology 1.3" polysilicon TFT panel x 3 (with micro lens)

• Resolution 1024 x 768 (Total 2,359,296), 600 Video Lines, 1280 x 1024 Compressed

• Brightness 5500 ANSI Lumens

• Contrast Ratio 600:1

• Zoom/Focus Power focus & zoom (zoom ratio 1.3:1)

• Projection Lens F=1.8-2.1, f=51-64mm

• Throw Ratio 1.8 ~ 2.1 (with standard lens)

• Off Set Axis 19:1 default; 1:1 (on axis) lens shift

• Picture Size 60 - 300 (Diagonal) inch

• Source Lamp 270W SHP lamp (lamp low mode: 220W); Shut down time: 1500h/2000h (at lamp low mode)

• PC Compatibility Resolution 640 x 400(expand) – 1024 x 768(real) – 1600 x 1200(compressed); Sync on green available

• Video Compatibility NTSC/NTSC 4.43/PAL (including PAL-M, N)/SECAM/PAL-60, Component Video; 480i/p(525i/p), 576i/p(625i/p), 720p(750p), 1080i(1125i 60Hz), 1080i(1125i 50Hz), 1080i(1250 50Hz), SCART (RGB+1V sync)

• Input Terminals RGB: 5BNC x1, Mini D-sub 15 pin x1

• Video: RCA x1 or BNC x1, (2) S-Video (4-pin) x1 or S-Video Y/C (BNC jack)

• Audio: Stereo mini jack ([1]3.5mm) x1 (for PC) RCA jack (L/R) x1 (for video)

• Output Terminals RGB: Mini D-sub 15 pin x1

• Audio: Stereo mini jack ([1] 3.5mm) x1 (variable out)

• Communication Terminal USB (for mouse) x1, RS-232C (8pin) x2, Wired remote (in/out) x2 ([1]3.5mm Stereo mini jack)

• Scanning Rates [H] 15-100kHz, [V] 50-120Hz

• Audio Speakers 5 W Mono

• Hand Remote Unit Laser pointer, wired connectivity, mouse cursor control (serial & USB)

• Power Consumption 3.8A/380 W

• Dimensions 17.4 x 6.9 x 17.1 inches WxHxD (including detachable terminal cover)

• Weight 19.9 lbs. (9 kg) (including detachable terminal cover)

• Power Requirements AC 100 ~ 240V / +10%, 50/60 Hz

• Fan Noise 35dBA (low mode 30dBA)

• Supplied Accessories AC Power cable, AV cable (RCA pin, 3 wires), RGB cable (Mini D-sub 15pin), RS-232C cable (8pin, D-sub 9pin), remote control (with batteries), terminal cover (including detachable anti-theft alarm), safety pin for anti-theft alarm, anti-theft alarm batteries, anti-theft stickers, user manual (cd-rom), safety manual, filter

• Optional Accessories Lamp (VLT-XL5950LP), Ceiling Mount (XL5950CM), Hard shell rolling case (XL5950-ATAC), Short Throw Zoom Ratio 1.3-1.6 lens (OL-X500SZ), Short Throw Fix on AXIS 0.8 lens (OL-X500FR), Long Throw Zoom Ratio 2.4-3.3 lens (OL-X500LZ), Long Throw Zoom Ratio 3.4-5.2 lens (OL-X500TZ), Optional remote (R-SC1)

• Warranty 3-years parts and labor, 3-years Express Replacement Assistance (ERA), 90-day lamp warranty

• Outstanding Features • Advanced Natural Color Matrix (RGB-TINT) • Advance Line Doubler (3D CineView) • Digital Keystone (Vertical) • Digital Expand Zoom with Picture-in-Picture mode • 2 Live Source Picture-in-Picture • Selectable Gamma correction • Horizontal & Vertical lens shift • Detachable terminal connector cover • Programmable splash screen • sRGB mode ready • 10 language OSD • Anti-theft alarm with motion sensor

Manufacturer Link: www.mitsubishi-presentations.com
