NEC LCD1850x MultiSync LCD Flat Panel Monitor nec

NEC MultiSync LCD1850x

18 inch 1280 x 1024 @ 60 Hz LCD Computer Monitor

no longer available

nec multisync lcd1850x lcd flat panel monitor

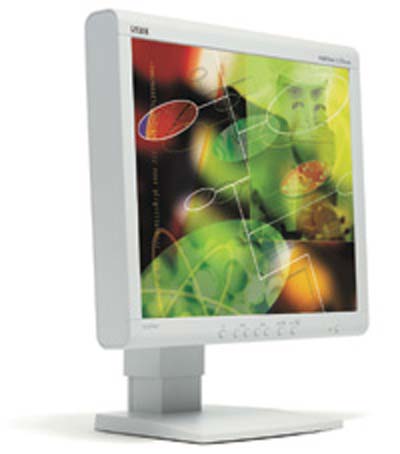

NEC MultiSync LCD1850x 18" LCD Monitor

OVERVIEW - nec lcd1850x lcd screen

The 18.1” NEC MultiSync LCD1850X brings you into the next generation of LCD monitor technology with its space-saving thin-bezel design. This model adds comfort to your visual experience with enhancing features such as Ambix(TM) technology for both analog and digital connectivity as well as a host of other high-end benefits.
This product is integration-friendly (touch and protective glass).

Back to Top

FEATURES - NEC LCD1850x Lcd monitor

Screen 18.1" (18.1" viewable image size)
Display Type Analog TFT/Active matrix LCD/XtraView+ 170° viewing
Native Resolution 1280 x 1024
Horizontal Frequency 31.0 kHz to 82.0 kHz
Orientation Portrait / Landscape viewing; Removable base (100mm x 100mm mounting hole)

Back to Top

SPECIFICATIONS - Nec LCD1850X Flat Panel Monitor

LCD Module:	18.1-inch (18.1" viewable image size), active matrix, thin film transistor (TFT), liquid crystal display (LCD),0.28 mm dot pitch, XtraView+ technology, RGB vertical stripe color filter arrangement, 240 cd/m2 white luminance typical, 300:1 contrast ratio - typical
MultiSync LCD1850X Features:	Ultra-Thin Frame (bezel), Xtraveiw+ Technology, No touch auto-adjust, OmniColor, sRBG color setting, Ambix support for analog and digital connections, 3rd-Party Touch Screen and Protective Glass integration, Digital Smoothing, Digital Control, Color Control (4 mode + sRGB, OSM Plug and Play (VESA DDC 1/2B), VESA DPMS Power Management, User (OSM) controls, Pivot Enabled for portrait / landscape viewing, Optional MultiSync sound bar (attachable in either portrait and landscape mode)
Sync:	Separate sync: TTL level (Positive/Negative) Composite sync: TTL level (Positive/Negative) Sync on Green: Video 0.3 Vp-p Negative (0.7Vp-p postive)
Display Colors:	16.7 Million (Dependent upon display card used)
Viewing Angle:	Left/Right: 85° Up: 85° Down: 85°
Synchronization Range (Automatically):	Horizontal: 31.0 kHz to 82.0 kHz Vertical: 55.0 Hz to 85.0 Hz
Resolutions Supported:	720 x 400* @ 70 Hz 640 x 480 @ 60 Hz to 85 Hz 800 x 600* @ 56 Hz to 85 Hz 832 x 624* @ 75 Hz 1024 x 768 @ 60 Hz to 85 Hz 1280 x 1024 @ 60 Hz to 76 Hz NOTE: Some systems may not support all modes listed.
Active Display Area:	Horizontal: 14.1 inches / 359 mm Vertical: 11.3 inches / 287 mm (Dependent upon signal timing used)
Input:	Ambix (VGA 15pin & DVI-I)
Power Consumption:	ON: 65 W Power Savings Mode: 3 W
Voltage Rating:	Universal 100 (110-240V) 50-60Hz Internal
Current Rating:	0.8A @ 100 - 120V / 0.4A @ 220 - 240V
Signal Cable:	15-pin mini D-SUB to 15-pin mini D-SUB (Supplied)
Dimensions:	Net (with stand): 15.7 in (W) x 17.5 in (H) x 8.6 in (D) 398 mm (W) x 452 mm (H) x 218 mm (D) Net (without stand): 15.7 in (W) x 13.7 in (H) x 2.9 in (D) 398 mm (W) x 349 mm (H) x 74.4 mm (D) Gross: 21.1 in. (W) x 21.6 in. (H) x 12.3 in. (D) 535 mm (W) x 548 mm (H) x 312 mm (D)
Weight:	Net (with stand): 18.7 lbs. / 8.5 kg
VESA Hole Configuration Spec.	100 x 100 mm
Height Adjustment:	2.8 in. / 70mm
Operating Temperature:	+41° F to +95° F / +5° C to +35° C
Operating Humidity Range:	30% to 80%
Operating Altitude:	0 to 10,000 Feet
Storage Temperature:	+14° F to +140° F / -10° C to +60° C
Storage Humidity Range:	10% to 85%
Storage Altitude:	0 to 45,000 Feet
Accessories:	User's Manual, (1) VGA 15-pin D-Sub cable, (1)DVI-D to DVI-I cable, (1) Power cord, (1) CD-ROM, with Liquid View (tm) software, and Portrait software.
General
Limited Warranty:	3-Year Parts and Labor, 3-Year backlight
Power Management:	IPM™ (Intelligent Power Manager) System, EPA Energy Star®, meets NUTEK based on 2 power saving modes
User Controls:	Power, Brightness, Contrast, Vertical and Horizontal Position, Phase, Color Control
Regulatory Approvals:	UL/C-UL or CSA; TUV/GS; ENERGY STAR; TCO '99; CE; FCC CLASS B/CANADIAN DOC; TUV/ERGONOMIE; MPRII; Ctick

Back to Top

Download Product Specs: LCD1850X
Manufacturer HomePage: www.necmitsubishi.com
