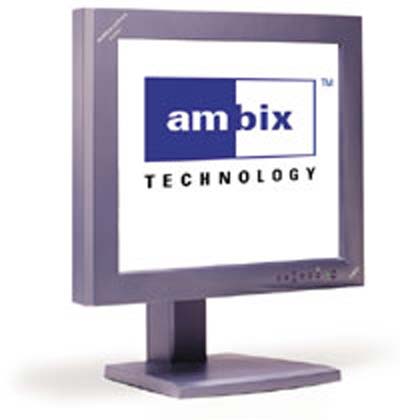

NEC LCD2010x MultiSync LCD display Flat Panel Monitor nec

LCD Module:

20.1-inch (20.1" viewable image size),
active matrix, thin film transistor (TFT),
liquid crystal display (LCD), 0.31 mm dot
pitch, 250 cd/m² white luminance typical,
250:1 contrast ratio - typical

Input Video Signal:

ANALOG: 0.7 Vp-p/75 Ohms Positive
DIGITAL: TMDS™

Sync:

Separate sync:    TTL Level
Horizontal sync:  Positive/Negative
Vertical sync:    Positive/Negative
Composite sync:   TTL level, Positive/Negative
Sync on Green:    0.3 Vp-p Negative 0.7Vp-p Positive

Display Colors:

16,777,216 Colors

(Dependent upon display card used)

Viewing Angle:

Left/Right:  +/- 85°
Up:              85°
Down:            85°

Synchronization Range (Automatic):

Horizontal: 31.5 kHz to 80.0 kHz
Vertical: 56.0 Hz to 85.0 Hz

Resolutions Supported:

Landscape:
720 x  400* @ 70 Hz
640 x  480  @ 60 Hz to 85 Hz
800 x  600* @ 56 Hz to 85 Hz
832 x  624* @ 75 Hz
1024 x  768* @ 60 Hz to 85 Hz
1152 x  870* @ 66 Hz
1280 x 1024  @ 60 Hz to 75 Hz

Digital:
720 x  400* @ 70 Hz
640 x  480  @ 60 Hz to 85 Hz
800 x  600* @ 56 Hz to 85 Hz
832 x  624* @ 75 Hz
1024 x  768* @ 60 Hz to 85 Hz
1152 x  870* @ 66 Hz
1280 x 1024  @ 60 Hz to 75 Hz
*Due to the interpolation necessary for
operation of LCD panel resolutions at
full screen, it is recommended that LCD
monitors utilize the full resolution
capability of the panel and are operated
at their optimal or maximum resolution
when text or fine lines are being viewed.

NOTE:  Some systems may not support
       all modes listed.

Recommended Resolution:

Landscape: 1280 x 1024 @ 60 Hz (analog and digital)
Portrait: 1024 x 1280 @ 60 Hz

Active Display Area:

Landscape:
Horizontal: 15.7 inches / 399 mm
Vertical: 12.6 inches / 320 mm

Power Supply:

AC 100 - 240 V @ 50/60 Hz

Current Rating:

0.7A @ 100 - 120V / 0.3A @ 220 - 240V

Signal Cable:

Signal Cables supplied in box:
1.   DVI-A to 15-pin mini D-SUB Video Signal Cable
2.   DVI-D to DVI-D Cable

Dimensions:

Net (with stand):
19.6 in. (W) x 19.7 in. (H) x 9.7 in. (D)
498 mm (W) x 501 mm (H) x 246 mm (D)

Net Portrait (with stand):
16.5 in. (W) x 21.3 in. (H) x 9.7 in. (D)
418 mm (W) x 541 mm (H) x 246 mm (D)

Net (without stand):
19.6 in. (W) x 16.5 in. (H) x 4.0 in. (D)
498 mm (W) x 418 mm (H) x 101 mm (D)

Height Adjustment: 80 mm

Gross:
24.5 in. (W) x 24.9 in. (H) x 13.3 in. (D)
622 mm (W) x 633 mm (H) x 339 mm (D)

Weight:

Net (with stand):    24.3 lbs. / 11.0 kg
Net (without stand):    16.1 lbs. / 7.3 kg
Gross:  31.3 lbs. / 14.2 kg

Operating Temperature:

5°C to 35°C / 41°F to 95°F

Operating Humidity:

30% to 80%

Operating Altitude:

3,048 m / 10,000 Feet

Storage Temperature:

-10°C to +60°C/14°F to 140°F

Storage Humidity:

10% to 85%

Storage Altitude:

13,716 m / 45,000 Feet

General

Limited Warranty:

3 Years Parts and Labor, including Backlight

Power Management:

IPM™ (Intelligent Power Manager) System,
EPA Energy Star®, meets NUTEK based on 2
power saving modes

User Controls:

Power, Brightness, Contrast, Auto Adjust, Vertical and
Horizontal Position, Image Adjust, AccuColor® Control
System, Language, OSM™ Position, OSM Turn Off, OSM
Lock Out, Video Detect, DVI Select, Factory Preset,
Resolution Notifier, Display Mode, Monitor Info
(OSM Warning: No Signal, Resolution Notifier, Out of
Range, Check Cable)

Regulatory Approvals:

UL/C-UL, TUV/GS, FCC Class B, TUV/ErGONOMIE,
Ctick, MPR-II, EPA Energy Star, TCO '99, TAIWAN EMC,
COREAN EMC/SAFETY

NEC MultiSync LCD2010x 20 inch 1280 x 1024 60 Hz LCD Computer Monitor

no longer available
