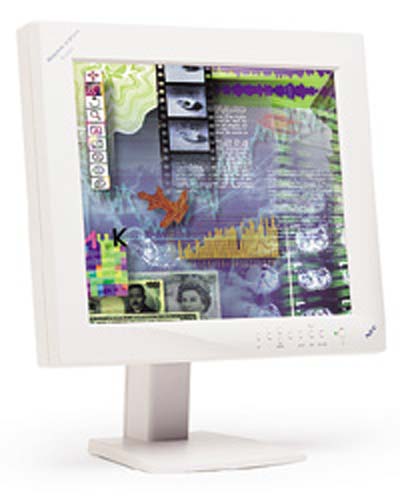

NEC LCD2110 MultiSync LCD Monitor nec lcd2110 flat screen

LCD Module:

21.3-inch (21.3" viewable image size),
active matrix, thin film transistor
(TFT), liquid crystal display (LCD),
0.27 mm dot pitch, XtraView® technology,
RGB vertical stripe color filter
arrangement, 200 cd/m2 white luminance
typical, 300:1 contrast ratio - typical

Input Video Signal:

ANALOG 0.7 Vp-p / 75 Ohms Positive

Sync:

Separate sync:    TTL level Positive/Negative
Composite sync:   TTL level, Positive/Negative
Sync on Green:    Video 0.3 Vp-p Negative 0.7Vp-p positive

Display Colors:

Analog Input: Unlimited Colors

(Dependent upon display card used)

Synchronization Range (Automatically):

Horizontal: 24.0 kHz to 82.0 kHz
Vertical: 56.0 Hz to 76.0 Hz

Resolutions Supported:

Landscape:
720 x  400  @ 70 Hz
640 x  480  @ 60 Hz to 76 Hz
800 x  600* @ 56 Hz to 76 Hz
832 x  624* @ 75 Hz
1024 x  768* @ 60 Hz to 76 Hz
1280 x  960  @ 60 Hz to 76 Hz
1280 x 1024  @ 60 Hz to 76 Hz
1600 x 1200  @ 60 Hz

Portrait:
480 x  640  @ 60 Hz to 76 Hz
600 x  800* @ 56 Hz to 76 Hz
624 x  832* @ 75 Hz
768 x 1024* @ 60 Hz to 76 Hz
960 x 1280  @ 60 Hz to 76 Hz
1024 x 1280  @ 60 Hz to 76 Hz
1200 x 1600  @ 60 Hz

*Due to the interpolation necessary for
operation of LCD panel resolutions at
full screen, it is recommended that LCD
monitors utilize the full resolution
capability of the panel and are operated
at their optimal or maximum resolution
when text or fine lines are being viewed.

NOTE:  Some systems may not support all modes listed.

Recommended Resolution:

Landscape: 1600 x 1200 @ 60 Hz
Portrait: 1200 x 1600 @ 60 Hz

Dimensions:

Net Landscape (with stand):
19.6 in (W) x 19.7 in (H) x 9.7 in (D)
498  mm (W) x 501  mm (H) x 246  mm (D)

Net Landscape (without stand):
19.6 in (W) x 16.5 in (H) x 4.0 in (D)
498  mm (W) x 418  mm (H) x 101  mm (D)

Net Portrait (with stand):
16.5 in (W) x 21.3 in (H) x 9.7 in (D)
418  mm (W) x 541  mm (H) x 246  mm (D)

Height Adjustment:  3.1 in / 80 mm

Gross:
24.5 in (W) x 24.9 in (H) x 13.3 in (D)
622 mm  (W) x 633  mm (H) x 339  mm (D)

Active Display Area:

Landscape:
   Horizontal:  17.0 inches / 432 mm
   Vertical:    12.8 inches / 324 mm
   Diagonal:    21.3 inches / 540 mm

(Dependent upon signal timing used)

Power Supply:

AC 100-120V / 220-240V worldwide input @ 50/60 Hz

Current Rating:

0.9A @ 100 - 120V / 0.5A @ 220 - 240V

Signal Cable:

15-pin mini D-SUB male to 5-branched BNC male

Viewing angle:

Left/Right:  +/- 85°
Up:              85°
Down:            85°

Weight:

Net (with stand):       23.1 lb / 10.5 kg
Net (without stand):    15.7 lb / 7.1 kg
Gross:  32.0 lb / 14.5 kg

Operating Temperature:

+41° F to +95° F / +5° C to +35° C

Operating Humidity Range:

30% to 80%

Operating Altitude:

0 to 10,000 Feet

Storage Temperature:

+14° F to +140° F / -10° C to +60° C

Storage Humidity Range:

10% to 85%

Storage Altitude:

0 to 45,000 Feet

General

Limited Warranty:

3-Year Parts and Labor, 3-Year backlight

Power Management:

VESA DPMS, EPA Energy Star

User Controls:

Power, Brightness, Contrast, Vertical
and Horizontal Position, Auto Adjust,
Image Adjust, AccuColor® Control System,
OSM™ Lock Out, OSM Horizontal Position,
All Reset, Horizontal Size, Fine

Regulatory Approvals:

UL/C-UL or CSA, TUV/GS, CE, FCC Rules Part 15
Class B, Canadian DOC, TUV/ERGONOMIE, MPRII, TCO '99,
Ctick, VCCI Class B

Plug and Play:

VESA DDC1, DDC2B
