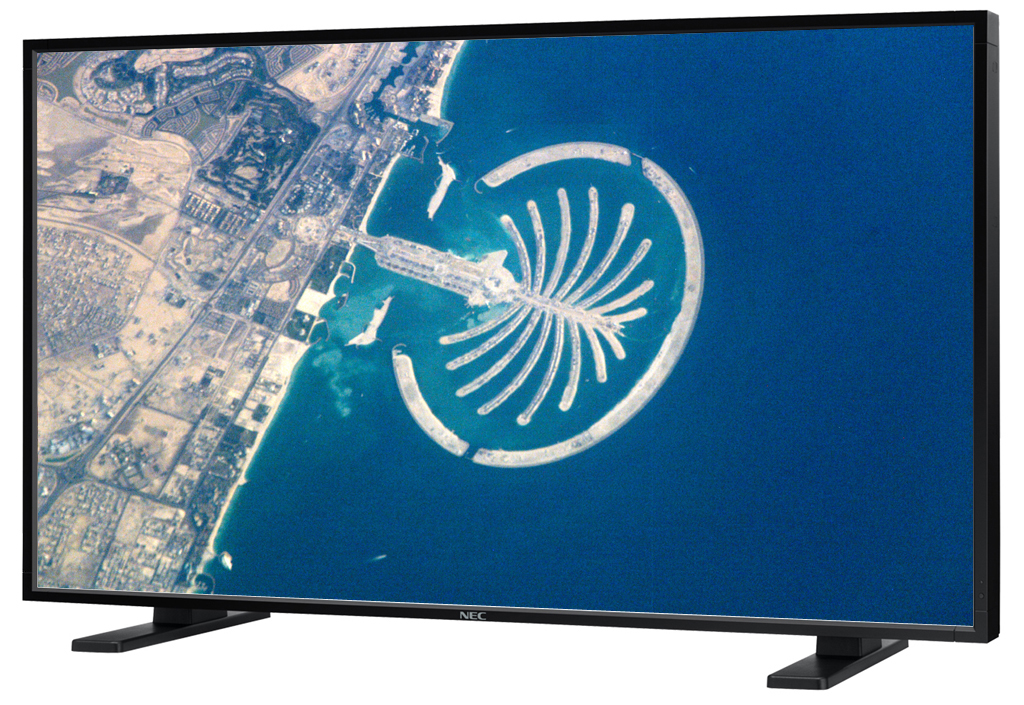

Click For Larger Image
(shown with included tabletop feet)
OVERVIEW - Nec lcd40202av 40 inch Professional LCD
Monitor with Ultra-Slim Bezel:
Make your digital content roar with the 40" NEC MultiSync LCD4020 LCD Monitor. Its massive screen envelops your visual experience with crisp detail vivid
colors and amazing brightness and contrast. The NEC professional LCD model boasts the Digital Signage Technology Suite (DSTS), over 20 advanced features
that enhance display management and improved screen performance.
FEATURES - Nec LCD40202AV 40 inch Professional LCD
Monitor with Ultra-Slim Bezel:
Contrast Ratio (typ.) 1200:1
Response Time (typ.) [ms] 8 (tr + tf;
grey-to-grey)
Native Resolution 1366 x 768
Brightness (typ.) [cd/m2]
500
SPECIFICATIONS - NEC LCD4020-2-AV 40 INCH LCD
MONITOR:
Panel Technology S-PVA LCD
Active Screen Area (W x H) [mm] 885.2 x 497.6
Screen Size [inch/cm] 40 / 101.6
Pixel Pitch [mm] 0.648 x 0.648
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Response Time (typ.) [ms] 8 (grey-to-grey), 16 (6 white / black; 10 black / white), 8 (tr - tf)
Colours [Mio.] 16.77
Horizontal Frequency [kHz] 31.5 - 91.1 (analog and digital)
Vertical Frequency [Hz] 50.0 - 85.0
Optimum Resolution 1360 x 768 at 60 Hz
Native Resolution 1366 x 768 at 60 Hz
Supported Resolutions 1920 x 1080; 1680 x 1050; 1600 x 1200; 1440 x 1050; 1366 x 768; 1280 x 1024; 1280 x 768; 1024 x 768; 832 x 624; 800 x 600; 720 x 400; 640 x 480
Video Input Analog: 1 x D-sub 15 pin; 5 x BNC, Component, Composite (via BNC and Cinch); 1 x S-Video; Digital: 1 x DVI-D (with HDCP); 1 x HDMI
Video Output Analog: 5 x BNC, Composite (via BNC)
Audio Input 2 x Cinch; 1 x Head-jack 3.5 mm
Audio Output 1 x Cinch
Option Slot CAT 5 receiver; HD-SDI board; Single board computer; DVI daisy chain board
Plug & Play VESA DDC2Bi
Safety and Ergonomics CE; TÜV GS; C-tick; FCC Class B; UL/C-UL or CSA; CCC; PSB; VCCI; RoHS
Power Consumption on Mode [W] 170 (at 500 cd/m2) (typ.); 300 (max.)
Power Management VESA DPMS
Power Supply 100-120 V/220-240 V; 3.0 A/1.2 A; internal power supply
Ambient Temperature (operating) [°C] +5 to +40 (influence on the max. brightness)
Ambient Humidity (operating) [%] 20 to 80
VESA Mounting [mm] 600 x 200 (FDMI); 16 holes / 100 mm spacing
Dimensions (W x H x D) [mm] With stand: 919.7 x 566.7 x 330.0
Without stand: 919.7 x 532.2 x 140.0
Bezel Width [mm] 15.5 (left and right); 15.5 (top and bottom)
Weight [kg] With stand: 31.1; Without stand: 29.4
Benefits AutoBright; CableComp (digital 30m, analog 100m); Colour Temperature Mode; DICOM Profile; NaViSet and NaViSet Administrator compatible; OmniColor: sRGB and 6-Axis-Colour-Control; Overheating Protection; Picture-in-Picture Mode; Picture-over-Picture Mode; PIN Code Protection; Power-Off Timer; Power-On Delay; SCART Support; Scheduler Function (with RTC); Selectable ID; TileMatrix (5 x 5); Touch Panel ready
Supported TV Standards (no tuner) NTSC; PAL; SECAM
Video Modes (no tuner) 480i; 480p; 576i; 576p; 2 x720p (50 and 60 Hz); 2 x 1080i (50 and 60 Hz); 2 x 1080p (50 and 60 Hz)
Audio Functions Optional Speakers (15 W + 15 W)
Remote Control RS-232C (9-pin D-sub) Input and Output; D-sub 15 and DVI-D (DDC/CI); Remote Control IR
Colour Versions Black Front Bezel, Black Back Cabinet
Shipping Content Display; Stand; Power Cable; Signal Cable VGA - VGA; Remote Control (IR); CD-ROM (User Guides/Manuals); Conclusion Cover
