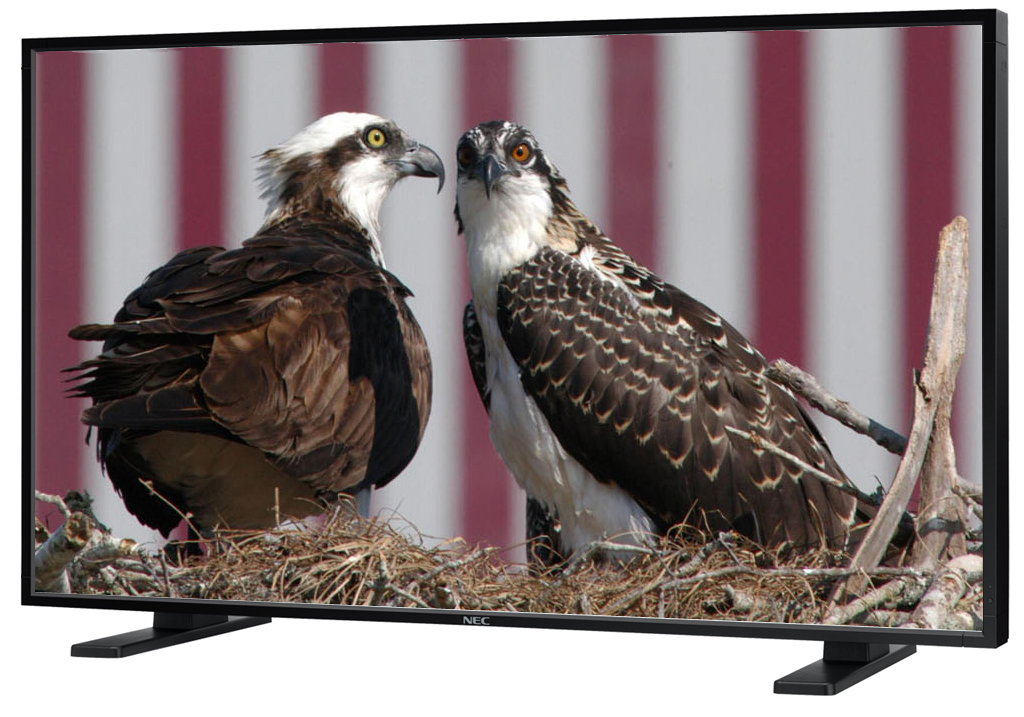

NEC LCD46202AV 46 inch Professional LCD Monitor with Ultra-Slim Bezel

Item Currently Unavailable

Return to NEC LCD Main

KEY POINTS - LCD46202AV Nec 46 inch Professional LCD Monitor with Ultra-Slim Bezel:

• Contrast Ratio (typ.) 1200:1
• Response Time (typ.) [ms] 8 (grey-to-grey), 16 (6 white / black; 10 black / white), 8 (tr - tf)
• Brightness (typ.) [cd/m²] 500 (at 5°C - 40°C - factory setting); 650 (at 5°C - 20°C); 700 (at 5°C - 8°C)
• Native Resolution 1366 x 768 at 60 Hz

SUMMARY - Nec lcd46202av 46 inch Professional LCD Monitor with Ultra-Slim Bezel:

Make your digital content roar with the 46" NEC MultiSync LCD4620 LCD Monitor. Its massive screen envelops your visual experience with crisp detail vivid colors and amazing brightness and contrast. The NEC professional LCD model boasts the Digital Signage Technology Suite (DSTS), over 20 advanced features that enhance display management and improved screen performance.


DETAILED SPECS - NEC LCD4620-2-AV 46 INCH LCD MONITOR:

• Panel Technology S-PVA LCD
• Active Screen Area (W x H) [mm] 1018.4 x 572.5
• Screen Size [inch/cm] 46 / 117
• Pixel Pitch [mm] 0.7455 x 0.7455
• Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
• Screen Aspect Ratio 16:9
• Contrast Ratio (typ.) 1200:1
• Brightness (typ.) [cd/m²] 500 (at 5°C - 40°C - factory setting); 650 (at 5°C - 20°C); 700 (at 5°C - 8°C)
• Response Time (typ.) [ms] 8 (grey-to-grey), 16 (6 white / black; 10 black / white), 8 (tr - tf)
• Colours [Mio.] 16.77
• Horizontal Frequency [kHz] 31.5 - 91.1 (analog and digital)
• Vertical Frequency [Hz] 50.0 - 85.0
• Optimum Resolution 1360 x 768 at 60 Hz
• Native Resolution 1366 x 768 at 60 Hz
• Supported Resolutions 1920 x 1080; 1680 x 1050; 1600 x 1200; 1440 x 1050; 1366 x 768; 1280 x 1024; 1280 x 768; 1024 x 768; 832 x 624; 800 x 600; 720 x 400; 640 x 480
• Video Input Analog: 1 x D-sub 15 pin; 5 x BNC, Component, Composite (via BNC and Cinch); 1 x S-Video; Digital: 1 x DVI-D (with HDCP); 1 x HDMI
• Video Output Analog: 5 x BNC, Composite (via BNC)
• Audio Input 2 x Cinch; 1 x Head-jack 3.5 mm
• Audio Output 1 x Cinch
• Option Slot CAT 5 receiver; HD-SDI board; Single board computer; DVI daisy chain board
• Plug & Play VESA DDC2Bi
• Safety and Ergonomics CE; TÜV GS; C-tick; FCC Class B; UL/C-UL or CSA; CCC; PSB; VCCI; RoHS
• Power Consumption on Mode [W] 200 (at 500 cd/m2) (typ.); 340 (max.)
• Power Management VESA DPMS
• Power Supply 100-120 V/220-240 V; 3.0 A/1.2 A; internal power supply
• Ambient Temperature (operating) [°C] +5 to +40 (influence on the max. brightness)
• Ambient Humidity (operating) [%] 20 to 80
• VESA Mounting [mm] 600 x 200 (FDMI); 16 holes / 100 mm spacing
• Dimensions (W x H x D) [mm] With stand: 1055.4 x 643.1 x 351.0
• Without stand: 1055.4 x 608.6 x 140.0
• Bezel Width [mm] 16.5 (left and right); 16.5 (top and bottom)
• Weight [kg] With stand: 37.9; Without stand: 36.1
• Benefits AutoBright; CableComp (digital 30m, analog 100m); Colour Temperature Mode; DICOM Profile; NaViSet and NaViSet Administrator compatible; OmniColor: sRGB and 6-Axis-Colour-Control; Overheating Protection with controllable Fans incl. 3rd Fan for optimized Portrait Use; Picture-in-Picture Mode; Picture-over-Picture Mode; PIN Code Protection; Power-Off Timer; Power-On Delay; SCART Support; Scheduler Function (with RTC); Selectable ID; TileMatrix (5 x 5); Touch Panel ready
• Supported TV Standards (no tuner) NTSC; PAL; SECAM
• Video Modes (no tuner) 480i; 480p; 576i; 576p; 2 x720p (50 and 60 Hz); 2 x 1080i (50 and 60 Hz); 2 x 1080p (50 and 60 Hz)
• Audio Functions Optional Speakers (15 W + 15 W)
• Remote Control RS-232C (9-pin D-sub) Input and Output; D-sub 15 and DVI-D (DDC/CI); Remote Control IR
• Color Versions Black Front Bezel, Black Back Cabinet
• Shipping Content Display; Stand; Power Cable; Signal Cable VGA - VGA; Remote Control (IR); CD-ROM (User Guides/Manuals); Conclusion Cover
• Warranty 3 years warranty incl. backlight

Manufacturer Link: www.necdisplay.com
