Nec V321 32 inch Professional LCD Display Monitor for digital signage applications

Our Price $687.41 Including Shipping

KEY POINTS - Nec v321 32 inch professional lcd display monitor for digital signage applications:

Commercial-grade design extends the display's use for various applications

Wide range of inputs, including DVI, VGA, shared 5-BNC, S-Video and HDMI

TileMatrix allows you to create video walls up to 5x5

High brightness (450 cd/m2 brightness) and contrast ratio (3000:1) help create eye-catching images and crisp, easy-to-read text

Text ticker creates a dedicated portion of the screen for applications such as news updates and emergency warnings

Protective-glass and touch-panel-ready design provides opportunities for module protection and interactivity

Landscape and portrait orientations allow for flexible content placement, maximizing audience awareness

SUMMARY - Nec v321 32 inch Professional LCD Display Monitor for digital signage applications:

Go digital with your messaging using the 32 inch NEC V321, an entry-grade, large-screen LCD display that provides a cost-conscious solution for digital signage applications. This model features a public display-grade panel that protects against permanent image retention, and a full selection of inputs, which allows you to connect to a wide range of peripheral devices. The high-performance panel and an abundance of advanced technologies that promote extended use, along with an adaptable cabinet design, make the NEC V321 ideal for retail and restaurant markets, as well as indoor venues, training facilities and corporate boardrooms.

DETAILED SPECS - NEC V321 32 INCH PROFESSIONAL LCD DISPLAY MONITOR FOR DIGITAL SIGNAGE APPLICATIONS:

Display

Viewable Image Size	32"

Pixel Pitch	0.51mm

Pixels Per Inch	50

Brightness	450 cd/m2

Contrast Ratio	3000:1

Viewing Angle	178º Vert., 178º Hor. (89U/89D/89L/89R) @ CR>10

Response Time	8 ms (gray to gray)

Synchronization Range

Horizontal	31.5-91.1 KHz (Analog) / 31.5-91.1 KHz (Digital)

Vertical	50-85 Hz Analog/Digital

Input Signal

Video	ANALOG RGB 0.7 Vp-p/75 Ohms; Separate sync: TTL Level; (Positive/Negative)

Sync	Separate: TTL Level (Pos/Neg)

Input Connectors	HDMI, DVI-D, Analog 15-pin D-sub, 5 BNC (RGB/HV, DVD/HD or Composite Video), BNC Composite Video, S-Video

Native Resolution	1366 x 768

Power Consumption

On	75W

Power Savings Mode	<1W

Dimensions (WxHxD)

Net (with stand)	31.1 x 21.14 x 9.68 / 789 x 537 x 246mm

Net (without stand)	31.1 x 18.8 x 5.2 in. / 789 x 476.3 x 133mm

Net Weight (with stand)	34.4 lbs / 15.6kg

Net Weight (without stand)	31.5 lbs. / 14.3 kg

VESA Hole Configuration Specifications	200 x 200mm (4 hole)

Environmental Conditions

Operating Temperature	5-40º C / 41-104º F

Operating Humidity	20-80%

Operating Altitude	0-3000m

Storage Temperature	-20-60º C / -4-140º F

Storage Humidity	10-90%

Storage Altitude	12,000m / 39,370 ft.

Warranty	3 years parts and labor, including backlight

Additional Features	Standard bezel, sealed panel design, Ethernet Control and Communication, TileMatrix (5x5), TileComp, programmable lookup tables, Plug and Play (DDC/CI, DDC2B), PIP/POP/side-by side picture, 6-axis color adjustment, 10-bit gamma, multi-level programmable zoom, scheduler (w/ RTC), sharpness/softness, off-timer (countdown), screen saver, vacation switch, AutoBright (signal input), Windows Vista-certified, portrait-capable, touch- and protective screen-ready, color temperature adjustment (2600-10,000K)

Manufacturer Page: www.necdisplay.com

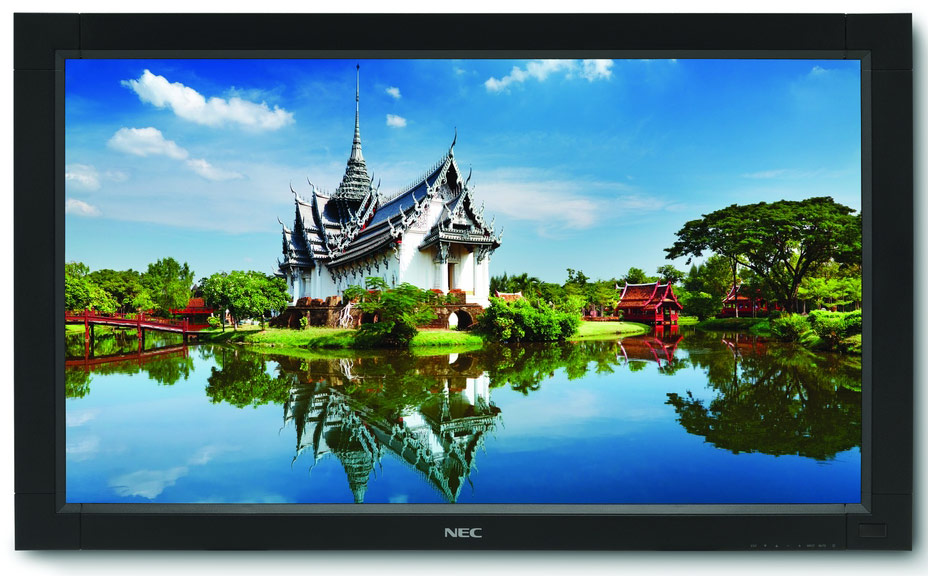

nec v321 digital signage display monitor v321

Click for Larger Image

NEC V321 32 inch Professional LCD Display Monitor for digital signage applications
Accessories
2 Year Warranty Extension	Price: ~~124.99~~ You Save 25% 93.74
4 Year Warranty Extension	Price: ~~214.99~~ You Save 25% 161.24
