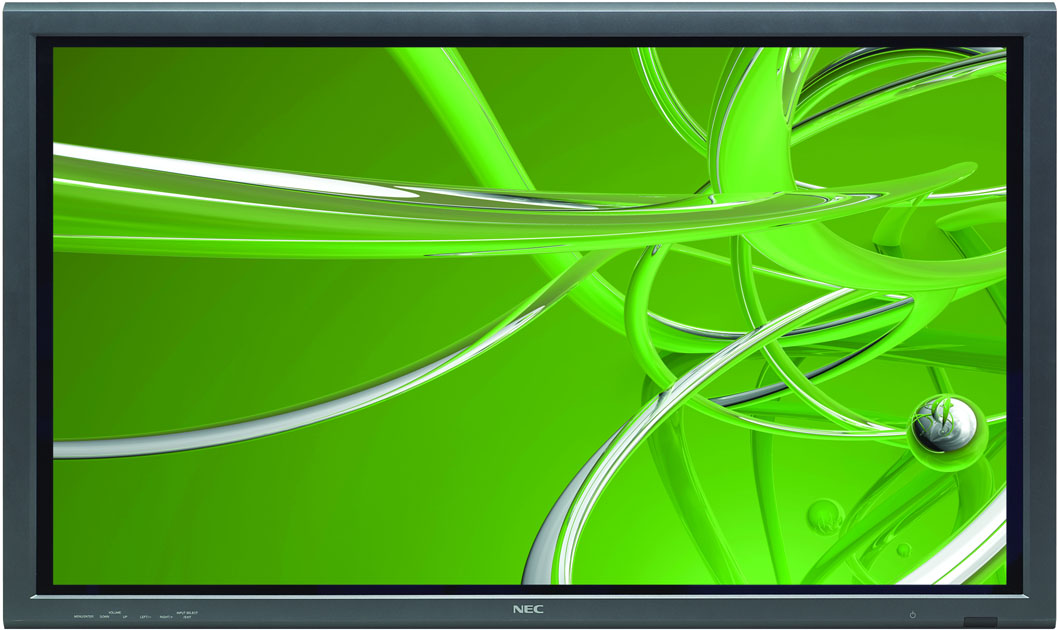

KEY POINTS - PX42XM5 Nec 42 inch HDTV Plasma Tv Screen:
1024x768 XGA Resolution
Contrast Ratio: 3000:1*
Brightness: 1500*
Long life > 60,000 hours
Comprehensive input panel
Highest number of built-in screensavers
Accurate color reproduction
* Estimated Contrast Ratio and Brightness based on
previous models.
SUMMARY - Nec px42xm5 42 inch HDTV Plasma Tv Screen:
Enhanced contrast, brightness and sharpness allow the 42XM5 to display the clearest images ever. From graphs, presentations and the internet to videos, dvds and HD, the 42XM5 becomes an integral part of your conference room.
DETAILED SPECS - NEC PX-42XM5 42 INCH HDTV PLASMA TV SCREEN:
Key Points
XGA resolution (1024x768) Long life > 60,000 hours Comprehensive input panel Accurate color reproduction
Unique Features
Low Power Consumption Highest number of built-in screensavers AMX Cafe Duet
Plasma Module
Screen Size (Diagonal)
42"
Screen Aspect Ratio
16 to 9
Active Screen Area (WxH)
36.3 x 20.3 in, 922 x 515 mm
Native Resolution XGA
1024 x 768
Pixel Pitch
.900/.671 mm
Color Processing
1.07 billion colors, 1024 levels
Viewing Angle
160 degrees
Filter Type
Anti-reflective
Signal Compatibility/Connectivity
Scan Rate
Horizontal
15.5 to 110.0 kHz auto, step scan
Vertical
50 to120 Hz auto, step scan
Supported Video Standards
PAL, SECAM, 3.58/4.43 NTSC, ATSC li>SD/HD Video Signal Compatibility 480i, 480p, 525i, 525p, 540p, 625i, 625p, 720p, 1035i, 1080i,1080p
15-pin mini D-sub (common use with RGB out, selectable)
RGB 2 (analog)
5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr input, selectable)
RGB 3 (digital)
24-pin DVI-D HDCP (EIA/CEA-861-A) compatible
Video 1
Composite BNC x 1 (common use with Video out, selectable)
Video 2
Composite RCA x 2
Video 3
S-Video 4-Pin DIN
HD Video 1
1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr)
HD Video 2
1 set BNC Component (Y,Pb,Pr/Y,Cb,Cr) (common use with 5BNC Y/Pb/Pr
Audio
3 sets RCA stereo + external speaker jacks
Audio
Internal amplifier, 8W x 2 output power
External
Control RS232, IR(IR loop through)
RGB Loop-out
Yes
Video Loop-out
Yes
Electrical
Power Requirements
120-240V 50/60 Hz
Power Consumption
285W Typical
Standby Power
0.9W
Dimensions (WxHxD)
40.2 x 24.0 x 3.9 in, 1022 x 610 x 98mm
Net Weight
66.1 lbs., 30.0 kg
Regulations
FCC Class B, UL60950, CSA-E 60950, Argentine UL, NOM
Fan Noise
22dB
Environmental
Operating Temperature
32 - 104 degrees F (0 - 40 degrees C)
Operating Humidity
20 - 80%
Operating Altitude
0 - 6160 feet (0 - 1880m)
Storage Temperature
14 - 122 degrees F (-10 - 50 degrees C)
Storage Humidity
10 - 90%
Storage Altitude
0 to 9510 feet (0 - 2900m)
Warranty
1 Years Parts & Labor/1 year plasma module
Additional Features
Split Screen / Picture-in-Picture
Yes
Advanced AccuBlend Ensures detailed images when non-native resolution sources are connected to the projector.
Phosphor Protection 7 modes
A comprehensive set of built-in modes
protects your screen from image retention.
Enhanced Mass Area
Superior Sampling Eliminates jagged lines, removes color separation and smooths diagonal lines for crystal clear and defines sharp images
Advanced AccuCrimson Filter
technology Produces vivid accurate colors by eliminating unwanted internal neon light emission
Color Tune Technology
Adjust individual colors without affecting white balance.
Closed captioning
Yes
Matrix Capability
2X2, 3X3, 4X4, 5x5, 1X5, 5X1
In the Box
AC Power Cord, User Manual, Remote Control, Batteries, Cable Clamps
Bonded Color Filter Technology that improves color, bright room contrast and sharpness while reducing the multiple image reflections possible with traditional filter technologies.
