Model Number

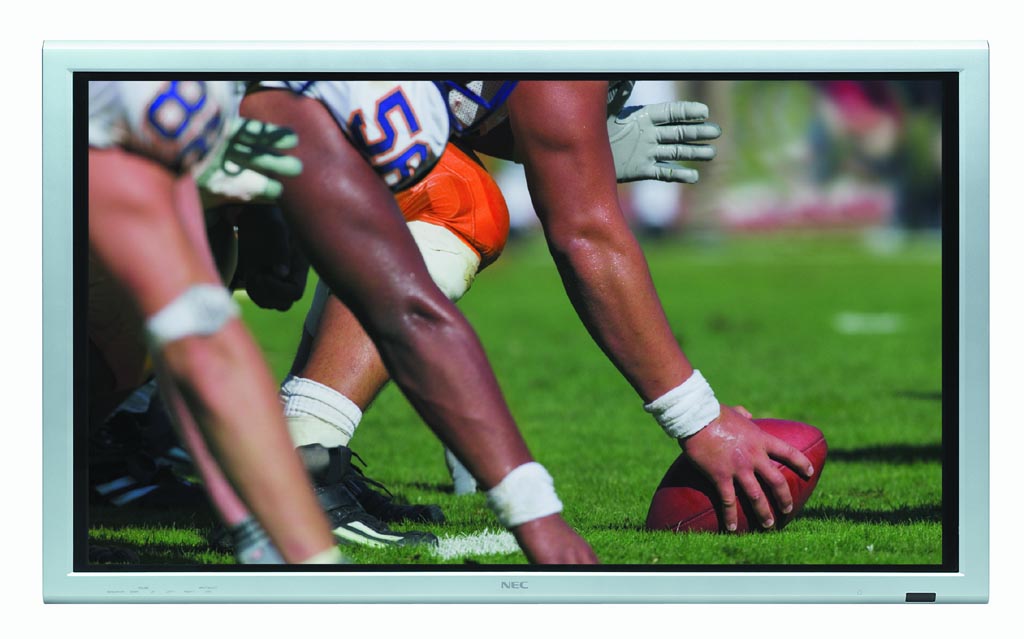

PX-50XR4A

Diagonal Screen Size

50"

Active Screen Area

43.5 in x 24.5 in, 1106 mm x 622 mm

Native Pixel Resolution

1365 x 768

No Data Available

No Data Available

Enhanced Split Screen

Yes

PIP

Yes

Screen Aspect Ratio

16 to 9

Pixel Pitch

0.81mm x 0.81mm

Capsulated Color Filter

Yes

Accucrimson

Yes

Color Processing

68.7 billion colors, 4096 levels

Viewing Angle

160 degrees

Horizontal Frequency Range

15.5 to 110.0 kHz auto, step scan

Vertical Frequency Range

50 to120 Hz auto, step scan

PC Signal Compatibility

VGA 640x480 @ 60,72,75,85,100, 120 Hz
SVGA 800x600 @ 56, 60, 72,75,85,100,120 Hz
XGA 1024x768 @ 60,70,75, 85, 100 Hz
SXGA 1280x1024 @ 60, 75, 85, 100 Hz
UXGA 1600x1200 @ 60, 65, 70, 75, 85 Hz
WideVGA 848x480, 852 x 480 @ 60 Hz
WideXGA 1360 x 765 @60 Hz, 1280 x 768 @ 60Hz

Macintosh Compatibility

640x480, 832x624, 1024x768, 1152x870

Video Signal Compatibility

PAL, SECAM, 3.58/4.43 NTSC

HD Video Signal Compatibility

480p 480i, 525p, 525i, 540p, 625p, 625i, 720p,1035i, 1080i

Input Terminals

RGB 1 (analog): 15-pin mini D-sub (common use with RGB out, selectable)
RGB 2 (analog): 5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr input, selectable)
RGB 3 (digital): 24-pin DVI-D HDCP (EIA/CEA-861-A) compatible
Video 1: Composite BNC x 1 (common use with Video out, selectable)
Video 2: Composite RCA x 1
Video 3: S-Video 4-Pin DIN
HD Video 1: 1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr)
HD Video 2: 1 set BNC Component (Y,Pb,Pr/Y,Cb,Cr) (common use with 5BNC Y/Pb/Pr input, selectable)
Audio: 3 sets RCA stereo + external speaker jacks

Audio

Internal amplifier, 9W x 2 output power

External Controls

9-pin mini D-Sub, RS232

Power Requirements

120V 50/60 Hz

Power Consumption

425W Typical, 7.6 Amp Maximum

Standby Power

0.9W

Dimensions (WxHxD)
w/o base

48.1x29.0x3.8", 1222x736x96mm

Weight without tabletop stand

96.4 lbs., 43.8 kg

Environmental Considerations

Operating Temperature: 32 - 104 degrees F (0 - 40 degrees C)
Operating Humidity: 20 - 80%
Operating Altitude: 0 - 9180 feet (0 - 2800m)
Storage Temperature: 14 - 122 degrees F (-10 - 50 degrees C)
Storage Humidity: 10 - 90%
Storage Altitude: 0 to 9840 feet (0 - 3000m)

Warranty

3 Years Parts & Labor/1 year plasma module

Regulatory

FCC Classs B, UL6500, CSA60065

Included Accessories

AC Power Cord, User Manual, Remote Control, Batteries, Cable Clamps, HDMI to DVI adaptor
