FEATURES - NEC Plasmasync 42MP4 42 inch;xga;flat
panel hdtv plasma tv
XGA Native resolution
3:2 Pulldown
Progressive Scanning
Accublend scan conversion
DVI Input
Phosphor
burn protection
OVERVIEW

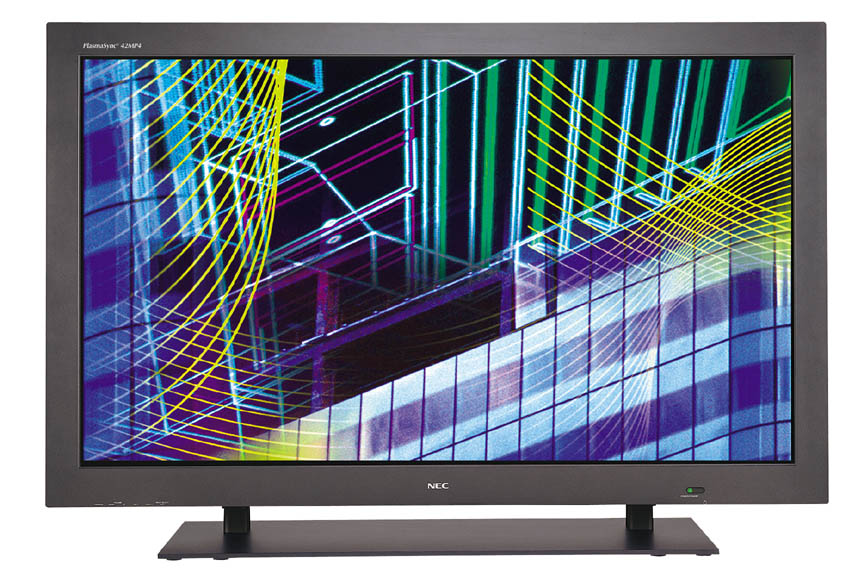

- nec plasmasync 42mp4 hdtv flat panel plasma tv
Superior
Image Quality
The 42MP4 flat panel monitor adds XGA native resolution to NEC's outstanding image
quality to give you the definitive tool for conveying ideas with
power and clarity. The monitor's XGA resolution panel provides a
sharp, crisp display of high-resolution text and graphics and its
progressive scan driving method displays stable, flicker free images.
Advanced AccuBlend scan conversion provides high quality scaling
for non-native RGB signals and sophisticated video signal processing
including motion-compensated 3D scan conversion and 3/2 pull down
processing delivers smooth, true to life video. Realistic color reproduction
is ensured with NEC's patented Capsulated Color Filter Technology
and further enhanced with AccuCrimson filter technology which produces
the purest red color display possible in a plasma monitor.
Broad
Signal and Source Compatibility
The 42MP4 flat panel plasma monitor lets you connect to and display signals from virtually
any input source. It is compatible with standard computer graphics
resolutions from VGA to UXGA as well as 848 x 480 and 1365 x 768 16:9
resolution standards. The flat panel monitor is also compatible with conventional
video formats including composite, S-Video and component Y/Pb/Pr
for home theater applications.
It also supports all major HDTV standards including 480p, 1080i
and 720p. This is complemented by a comprehensive input panel with
connections for up to 8 different sources including a 29-pin DVI
digital input connector and three assignable audio inputs.
Enhanced
Presentation Effectiveness
With the 42MP4, NEC also includes features that help you deliver
your message. Digital Zoom allows you to select any point on the
screen and magnify it to emphasize a point or highlight information.
Information an be enlarged up to 3 times in 64 smooth digital steps
and you can pan through the entire screen at any selected magnification
level. The 42MP4 is also remarkably quiet so you do not have to
compete with fan noise to make yourself heard in a meeting.
SPECIFICATIONS
- Nec PlasmaSync 42MP4 42 INCH PLASMA MONITOR
Model
Number PX-42XM1A
Diagonal Screen Size 42 inch
Screen Aspect Ratio 16 to 9
Active Screen Area 921mm x 518 mm
Native Pixel Resolution 1024 vertical dots x 768 horizontal rows
Pixel Pitch 0.897mm width x 0.657mm height
Capsulated Color Filter Yes
Output color 256 RGB levels, 16.7 million colors
Viewing Angle 160 degrees
Horizontal Frequency Range 15.5 to 93.8 kHz auto, step scan
Vertical Frequency Range 50 to120 Hz auto, step scan"
PC Signal Compatibility
VGA
640 x 480 @ 60,72,75,85,100, 120 Hz
SVGA
800 x 600 @ 56, 60, 72,75,85,100,120 Hz
XGA
1024 x 768 @ 60,70,75, 85, 100 Hz
SXGA
1280 x 1024 @ 60, 75, 85 Hz
UXGA
1600 x 1200 @ 60, 70, 75 Hz
WideVGA
848 x 480, 852 x 480 @ 60Hz
WideXGA
1360 x 765 @60Hz
Macintosh
Compatibility 640 x 480, 832 x 624, 1024 x 768, 1152 x 870
Video
Signal Compatibility 3.58 / 4.43 NTSC, PAL, SECAM
HD Video Signal Compatibility 480p 480i, 525p, 525i, 540p, 625p,
625i, 720p,1035i, 1080i
Input Terminals
RGB
1 (analog) 15-pin mini D-sub
RGB
2 (analog) 5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr input,
selectable)
RGB
3 (digital) 29-pin DVI (digital only)
Video
1 Composite RCA x 1
Video
2 S-Video 4-Pin DIN
Video
3 Composite BNC x 1 (common use with 5BNC G input, selectable)
HD
Video 1 1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr)
HD
Video 2 1 set BNC Component (Y,Pb,Pr/Y,Cb,Cr)(common use with
5BNC Y/Pb/Pr input, selectable)
Audio
3 sets RCA stereo + external speaker jacks
Audio
Internal amplifier, 7W x 2 output power
External Control 9-pin mini D-Sub, RS232
Plug & Play DDC1, DDC2B (RGB3 is DDC2B only)
Power Requirements 120V 50/60 Hz
Power Consumption 380 W Typical, 5.0 Amp Maximum
Dimensions
(WxHxD) –without base 1048 x 648 x 89mm, 41.3 x 25.5 x 3.5 inches
