| NEC PlasmaSync 42VP4D 42
inch Plasma TV Flat Panel display with anti reflective screen
No Longer Available
Click Here For 42VP5
Back to NEC Plasma Main

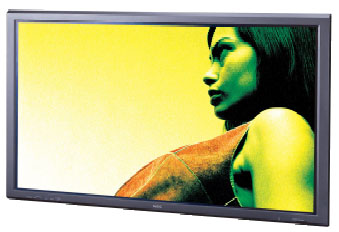

Click For Larger Image |
|
|
NEC PlasmaSync
42VP4D 42 inch Plasma Flat Panel Public
Display |
|
OVERVIEW - Nec
PlasmaSync 42vp4d Flat Panel Plasma TV Public Display:
Like a classic painting it follows
you at every angle, drawing you in, compelling you to look. The new
42 inch PlasmaSync Public Display Series gets you involved. Ideal
for digital signage, advertising, point-of-purchase, merchandising
and kiosks, the 42VP4D can be used in a variety of public display
environments including transportation terminals, retail, banking,
hospitality, tradeshows and more. An anti-glare filter on the 42VP4D
keeps images vibrant and contrast high for areas with a lot of
direct light. A sleek new design with cable management system,
programmable timer and portrait capability makes it ideal for any
public environment. No matter how you look at it the new 42 inch
Public Display Series gives you a clear advantage every time!
|
|
SPECIFICATIONS - Nec plasmasync 42vp4d public display plasma
screen
|
Model Number |
PX-42VP4DA
|
|
Diagonal Screen Size |
42 inch
|
|
Vertical Frequency Range |
50 to120 Hz auto, step scan
|
|
Screen Aspect Ratio |
16:9
|
|
Active Screen Area |
921mm x 518 mm
|
|
Native Pixel Resolution |
853 vertical dots x 480
horizontal rows
|
|
Pixel Pitch |
1.08 mm square
|
|
Output Color |
256 RGB levels, 16.7 million
colors
|
|
Viewing Angle |
160 degrees
|
|
Weight without tabletop stand |
28.5 kg, 62.8 lbs
|
|
Included Accessories |
AC Power Cord, User Manual,
Remote Control, Batteries, Cable Clamps
|
|
Optional Accessories |
Tabletop Stand PX-ST1U
Attachable Speakers PX-42SP1U
Fixed Wall Mount FWMK
Tilt Wall Mount TWMK
Ceiling Mount CMK
Fixed Wall Mount for PC FWMKPC
Tilit Wall Mount for PC TWMKPC
Ceiling Mount for PC CMKPC
|
|
Horizontal Frequency Range |
15.5 to 110.0 kHz auto, step
scan
|
|
PC Signal Compatibility |
VGA 640x480 @ 60,72,75,85,100,
120 Hz
SVGA 800x600 @ 56, 60, 72,75,85,100,120 Hz
XGA 1024x768 @ 60,70,75, 85, 100 Hz
SXGA 1280x1024 @ 60, 75, 85, 100 Hz
UXGA 1600x1200 @ 60, 65, 70, 75, 85 Hz
WideVGA 848x480, 852 x 480 @ 60 Hz
WideXGA 1360 x 765 @60 Hz
|
|
Macintosh Compatibility |
640x480, 832x624, 1024x768,
1152x870
|
|
Input Terminals |
RGB 1 (analog) 15-pin mini D-sub
(common use with RGB out, selectable)
RGB 2 (analog) 5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr
input, selectable)
RGB 3 (digital) 29-pin DVI (digital only)
Video 1 Composite BNC x 1 (common use with video out,
selectable)
Video 2 Composite RCA x 1
Video 3 S-Video 4-Pin DIN
HD Video 1 1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr)
HD Video 2 1 set BNC Component (Y,Pb,Pr/Y,Cb,Cr)
(common use with 5BNC Y/Pb/Pr input,selectable)
Audio 3 sets RCA stereo + external speaker jacks
|
|
Audio |
Internal amplifier, 8W x 2
output power
|
|
OSM |
Picture - Contrast, brightness,
sharpness, color, tint, color temperature, white
balance, picture mode, noise reduction, gamma, low tone and
color tune
Audio - bass, treble, balance and audio input
Image Adjust - aspect ratio mode, vertical position,
horizontal position,
vertical height, horizontal width, fine picture, picture
adjust, auto picture
|
|
External Controls |
9-pin mini D-Sub, RS232
|
|
User Controls |
Direct Access Power on/off,
input selection, volume up/down, OSM access, (Control
Lock Switch located on input panel)
Remote Control Power on/off, input select, volume, mute, wide,
display, off-timer, OSM
control, cursor, pointer, zoom, auto, select
|
|
Power Requirements |
100V / 240V 50/60 Hz
|
|
Power Consumption |
275 W Typical, 3.7 Amp Maximum
|
|
Plug and Play |
DDC1, DDC2B (RGB3 is DDC2B only)
|
|
Dimensions (WxHxD) w/o base |
40.1 x 24.0 x 3.5 inches, 1018 x
610 x 89mm
|
|
Warranty |
1 Year Parts & Labor Standard
|
|
Environmental Considerations |
Operating Temperature 32 - 104
degrees F (0 - 40 degrees C)
Operating Humidity 20 - 80%
Operating Altitude 0 - 9180 feet (0 - 2800m)
Storage Temperature 14 - 122 degrees F (-10 - 50 degrees C)
Storage Humidity 10 - 90%
Storage Altitude 0 to 9840 feet (0 - 3000m)
|
|
Regulatory |
FCC Class A, UL1950, CSA950
|
|
HD Video Signal Compatibility |
480p 480i, 525p, 525i, 540p,
625p, 625i, 720p,1035i, 1080i
|
|
Capsulated Color Filter |
AG - Anti-glare (PX-42VP4DA)
|
|
Programmable Timer |
7 Day Programmable Timer |
|
|
Download Product Specs:
NEC42VP4D.pdf
Download Installation Guide:
NEC42VP4D_installguide.pdf
