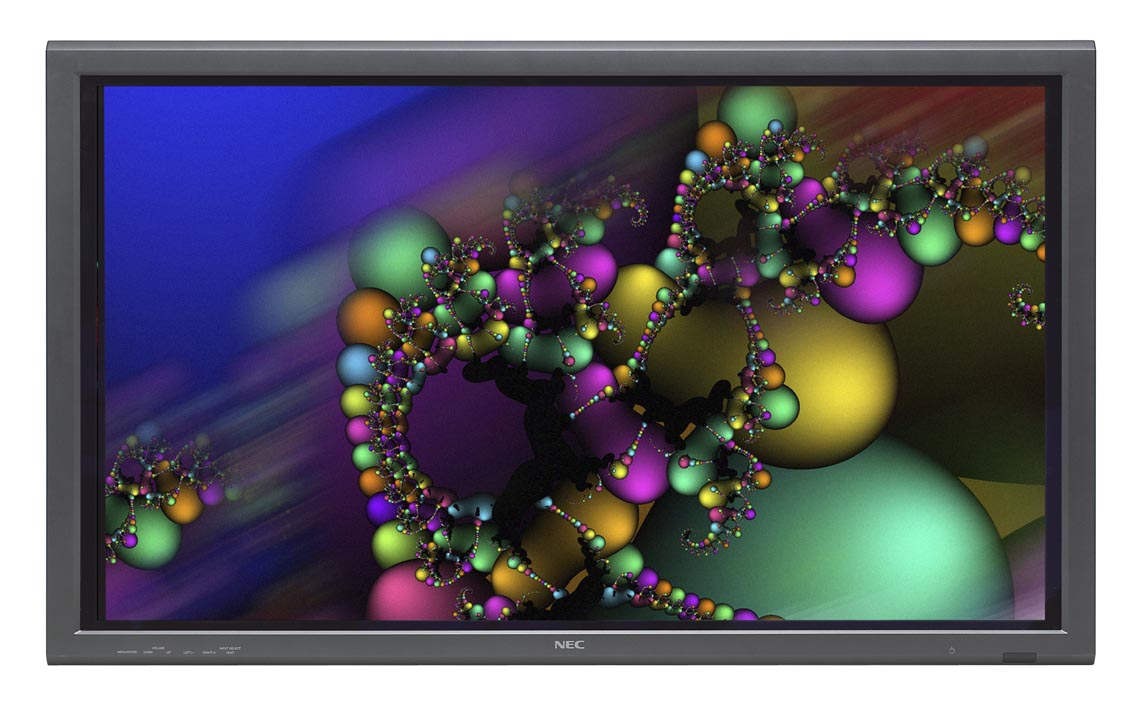

Model Number

PX-42XM3A

Diagonal Screen Size

42"

Screen Aspect Ratio

16 to 9

Active Screen Area

36.3 in x 20.4 in, 921mm x 518 mm

Native Pixel Resolution

1024 x 768

No Data Available

No Data Available

Pixel Pitch

0.897mm x 0.675mm

Capsulated Color Filter

Yes

Accucrimson

Yes

Front Filter Type

AR - Anti reflection

Color Processing

68.7 billion colors (4096 steps)

Viewing Angle

160 degrees

Horizontal Frequency Range

15.5 to 110.0 kHz auto, step scan

Vertical Frequency Range

50 to120 Hz auto, step scan

PC Signal Compatibility

VGA: 640x480 @ 60,72,75,85,100, 120 Hz
SVGA: 800x600 @ 56, 60, 72,75,85,100,120 Hz
XGA: 1024x768 @ 60,70,75, 85, 100 Hz
SXGA: 1280x1024 @ 60, 75, 85, 100 Hz
UXGA: 1600x1200 @ 60, 65, 70, 75, 85 Hz
WideVGA: 848x480, 852 x 480 @ 60 Hz
WideXGA: 1360 x 765 @60 Hz, 1280 x 768 @ 60Hz

Macintosh Compatibility

640x480, 832x624, 1024x768, 1152x870

Video Signal Compatibility

PAL, SECAM, 3.58/4.43 NTSC

HD Video Signal Compatibility

480p 480i, 525p, 525i, 540p, 625p, 625i, 720p,1035i, 1080i

Input Terminals

RGB 1 (analog): 15-pin mini D-sub (common use with RGB out, selectable)
RGB 2 (analog): 5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr input, selectable)
RGB 3 (digital): 24-pin DVI-D HDCP (EIA/CEA-861-A) compatible
Video 1: Composite BNC x 1 (common use with Video out, selectable)
Video 2: Composite RCA x 1
Video 3: S-Video 4-Pin DIN
HD Video 1: 1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr)
HD Video 2: 1 set BNC Component (Y,Pb,Pr/Y,Cb,Cr) (common use with
5BNC Y/Pb/Pr input, selectable)
Audio: 3 sets RCA stereo + external speaker jacks

Output Terminals

RGB (analog): 15 PIN mini D-sub (common use with RGB1, selectable)
Video: Composite BNC (common use with Video1, selectable)

Audio

Internal amplifier, 8W x 2 output power

External Controls

9-pin mini D-Sub, RS232

User Controls

Direct Access: Power on/off, input selection, volume up/down, OSM access (Control lock switch located on input panel)
Remote Control: Power on/off, input select, volume, mute, wide, display, off-timer, OSM control, cursor, pointer, zoom, auto, select
OSM: Picture - Contrast, brightness, sharpness, color, tint, color temperature, white balance, picture mode, noise reduction, gamma, low tone and color tune Audio - bass, treble, balance and audio input
Image Adjust - aspect ratio mode, vertical position, horizontal position,
vertical height, horizontal width, fine picture, picture adjust, auto picture

DVI Setup

Option 1: OSM on/off, BNC Input, D-sub Input, RGB select, HD select, Input Skip, All Reset
Option 2: Pwr. Management, Cinema Mode, Long Life Mode, Gray Level, Closed Captioning
Option 3: Timer, Pwr. On mode, Control Lock, IR Remote, Loop Out, ID Number Video Wall Advanced OSM, Language, Color System, Source Information

Plug and Play

DDC1, DDC2B (RGB3 is DDC2B only)

Power Requirements

120V 50/60 Hz

Power Consumption

300W Typical, 5.2 Amp Maximum

Standby Power

0.80W

Dimensions (WxHxD)
w/o base

40.1" x 20.4" x 3.5", 1018 x 610 x 89mm

Weight

65.0 lbs., 29.5 kg (without tabletop stand)

Environmental Considerations

Operating Temperature: 32 - 104 degrees F (0 - 40 degrees C)
Operating Humidity: 20 - 80%
Operating Altitude: 0 - 9180 feet (0 - 2800m)
Storage Temperature: 14 - 122 degrees F (-10 - 50 degrees C)
Storage Humidity: 10 - 90%
Storage Altitude: 0 to 9840 feet (0 - 3000m)

Warranty

1 Year Parts & Labor Standard

Regulatory

FCC Class A, UL1950, CSA950

Included Accessories

AC Power Cord, User Manual, Remote Control, Batteries, Cable Clamps
