NEC
PlasmaSync 50PD2 50 INCH Flat Panel Plasma Display
OVERVIEW - nec 50mp2 50 inch hdtv plasma tv flat panel monitor

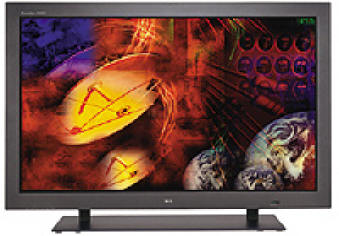

The NEC Plasma 50MP2 flat panel monitor
is NEC's next generation of 50 inch XGA plasma display optimized for
multimedia presentations requiring superior image quality, broad
signal and source compatibility and built-in stereo audio.
A 1200:1 contrast ratio, 1365 x 768
WideXGA resolution, Advanced AccuBlend Technology and a 3-2 pull down
converter ensure the best possible brightness, contrast, color and
image quality from any source. Realistic color reproduction via NEC's
exclusive Capsulated Color Filter Technology is now enhanced by
AccuCrimson, a filtration technology that produces the purest shade of
red yet possible in a plasma display. In addition, a comprehensive
input panel includes connections for up to eight different sources
including three assignable audio inputs and a 29-pin DVI input.
NEC's AccuShield Phosphor Protection
System, an Inverse RGB, Pixel Orbiter and Brightness Limiter modes and
a Programmable Pixel Refreshment mode help alleviate the possibility
of phosphor burn and prolong the life of the plasma display. The 50MP2
also includes an internal 7-Watt stereo audio amplifier, external
speaker jacks and optional external speakers that can attach to the
sides of the monitor.
The
NEC Plasma PlasmaSync 50MP2 is NEC’s 50 inch XGA plasma monitor optimized
for professional multimedia applications. The monitor has been designed
specifically to deliver the main requirements for multimedia presentation
with high-resolution support, broad compatibility with computer, standard
video and HDTV signals and true multimedia support with built-in stereo
audio and the ability to connect virtually any type of computer, video
or audio source.
The
NEC Plasma 50MP2 flat panel hdtv plasma includes a number of improvements and new capabilities
that enhance its suitability to multimedia presentation applications:
Quality Improvements
Enhancements to the image quality performance in the 50MP2 Plasma
TV are in
the areas of contrast and color accuracy.
Contrast
Ratio – improved to 900:1 (from 600:1) a 50% increase over
the 50MP1.
AccuCrimson
- Color realism is enhanced with AccuCrimson, which allows
the monitor to produce more pure and realistic shades of red.
Plasma monitors typically produce reds that are heavily shaded
to orange. AccuCrimson suppresses the orange wavelengths in the
light emitted by the panel’s red phosphors to produce the purest
shade of red possible. In conjunction with Capsulated Color Filter
this provides extremely realistic color rendering.
More
efficient power usage
Typical power consumption has been reduced by 25% to 480 Watts.
AccuShield modes
Pixel
Refresh - A new operating mode has been added to the AccuShield
phosphor protection system to provide additional means to extend
the usable life of the display. Pixel Refresh is a white bar that
scrolls horizontally across the screen. Pixel Refresh includes
a timer and can be programmed to operate at specific times and
durations. The white bar activates phosphors to interrupt the
process of phosphor burn without interfering with the legibility
of on-screen content.
Display
of Inverse RGB and White Screen modes can now be controlled with
a built-in timer that allows the user to set the frequency and
duration of their display.
Presentation
tools
Split
Screen - The functionality and options for using the split
screen mode have been expanded.
Size and resolution of side-by-side windows has been made equal.
The combination of displaying 2 signals that can be displayed
simultaneously is increased to 8. The positions of the displayed
signals can be switched between right and left side of screen.
Sub picture size in Picture-in-Picture can be selected as one
of four different sizes.
Digital
Zoom - The Digital Zoom function has been enhanced to 64 steps
vs. 26 in the NEC PLASMA HDTV 50MP2 zoom. This provides smoother transitions in
the enlargement and reduction of the image within the vertical/horizontal
magnification range
Specifications
- NEC 50mp2 Plasma Flat Panel Display Monitor
RGB 1 (analog)15-pin mini D-sub
RGB 2 (analog)5 BNC (RGB/HV)
(common use with 5BNC Y/Pb/Pr input,
selectable)
RGB 3 (digital)29-pin DVI (digital only)
Video 1-Composite RCA x 1
Video 2-Composite BNC x 1
Video 3-S-Video 4-Pin DIN
HD Video 1-1 set RCA Component (Y,Pb,Pr,Y,Cb,Cr)
HD Video 2-1 set BNC Component (Y,Pb,Pr,Y,Cb,Cr)
(common use with 5BNC RGB/HV input,
selectable)
Audio-3 sets RCA stereo + external speaker jacks
Audio
Internal amplifier, 7W x 2 output power9-pin
mini D-Sub, RS232
External
Control
9-pin mini D-Sub, RS232
User
Controls
Panel-Direct Access: Power on/off, input
selection, OSM access, (Control Lock
Switch Located on input panel)
Remote-Power on/off, input
select, volume, mute, wide, display,
off-timer,OSM control, cursor,
pointer, multi screen, zoom, auto,
select
OSM-Contrast, brightness, sharpness,
color, tint, color temperature, white
balance, picture mode, noise reduction,
bass, treble, balance, vertical position,
horizontal position, vertical height,
horizontal width, fine picture, picture
adjust, auto picture, power management,
cinema mode, RGB select, BNC select,
HD select, audio input, OSM adjstment,
gray level, PLE, reset, frequency,
language, color system
Plug
& Play
DDC1, DDC2B (RGB3 is DDC2B only)
Power
Requirements
120V 50/60 Hz
Power
Consumption
480 W Typical, 5.4 Amp Maximum
Dimensions
(WxHxD) - w/o base
1240 x 766 x 107mm, 48.8 x 30.2 x 4.2 inches
Weight
(without tabletop stand)
44.0 kg, 97.9 lbs. (without tabletop stand)
Environmental
Considerations
Operating Temperature-32 - 95 degrees F
Operating Humidity-20 - 80%
Operating Altitude-0 - 6230 feet
Storage Temperature-14 - 122 degrees F
Storage Humidity-10 - 90%
Storage Altitude-0 to 9840 feet
Warranty
1 Year Parts & Labor Standard
Regulatory
FCC Classs A, UL1950, CSA950
Included
Accessories
AC Power Cord, User Manual, Remote Control,
Remote Control Cable, 15-pin RGB Cable, Batteries
