NEC PlasmaSync 61XM2
61 inch HDTV Plasma TV Flat Panel Display
No Longer Available
Back
to NEC Plasma Main

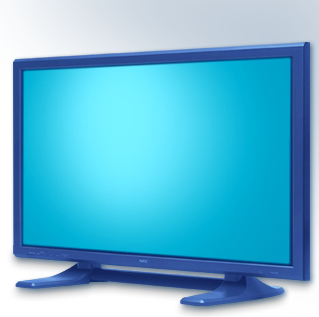

Click For Larger Image
|
|
|
NEC PlasmaSync 61XM2 61 inch HDTV Plasma Tv |
|
OVERVIEW - nec plasma 61XM2 61 inch hdtv plasma tv monitor
With an enormous 61" screen, the 61XM2 provides a previously
unheard of plasma monitor size while maintaining an exceptional
picture quality of 16:9 XGA native resolution.
Assisting the 61XM2’s 1365x768 WideXGA native resolution are
Advanced AccuBlend Technology and NEC's exclusive Capsulated Color
Filter Technology, producing superior color saturation, contrast,
depth, picture quality and the purest shade of red yet possible in a
plasma display. And for computer sources, a scan converter with an
Optimum Conversion process for signals up to UXGA is included. In
addition, a 3-2 pull down converter and a motion-compensated 3D scan
converter deliver smooth, lifelike displays of video content while
Advanced Mass Area Sampling straightens diagonal lines and
reproduces curved lines more smoothly
|
SPECIFICATIONS - NEC Plasma 61XM2 HDTV Plasma TV Flat
Panel Monitor
|
Model Number |
PX-61XM2 |
|
Vertical Frequency Range |
50
to120 Hz auto, step scan |
|
Screen Aspect Ratio |
16
to 9 |
|
Active Screen Area |
53.2 in x 29.9 in1351 mm x 760 mm |
|
Native Pixel Resolution |
1365 x 768 |
|
Pixel Pitch |
0.99mm x 0.99mm |
|
Output Color |
256 RGB levels, 16.7 million colors |
|
Viewing Angle |
160 degrees |
|
Weight without tabletop stand |
61.0 kg, 134.2 lbs. |
|
Included Accessories |
AC
Power Cord, User Manual, Remote Control, Batteries, Cable
Clamps |
|
Horizontal Frequency Range |
15.5 to 110.0 kHz auto, step scan |
|
PC Signal Compatibility |
VGA 640x480 @ 60,72,75,85,100, 120 Hz
SVGA 800x600 @ 56, 60, 72,75,85,100,120 Hz
XGA 1024x768 @ 60,70,75, 85, 100 Hz
SXGA 1280x1024 @ 60, 75, 85, 100 Hz
UXGA 1600x1200 @ 60, 65, 70, 75, 85 Hz
WideVGA 848x480, 852 x 480 @ 60 Hz
WideXGA 1360 x 765 @60 Hz, 1280 x 768 @ 60Hz |
|
Macintosh Compatibility |
640x480, 832x624, 1024x768, 1152x870 |
|
Input Terminals |
RGB 1 (analog) 15-pin mini D-sub (common use with RGB out,
selectable)
RGB 2 (analog) 5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr
input, selectable)
RGB 3 (digital) 25-pin DVI (digital only)
Video 1 Composite BNC x 1 (common use with Video out,
selectable)
Video 2 Composite RCA x 1
Video 3 S-Video 4-Pin DIN
HD Video 1 1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr)
HD Video 2 1 set BNC Component (Y,Pb,Pr/Y,Cb,Cr) (common
use with
5BNC Y/Pb/Pr input,selectable) |
|
Audio |
Internal amplifier, 9W x 2 output power |
|
External Controls |
9-pin mini D-Sub, RS232 |
|
User Controls |
Direct Access Power on/off, input selection, volume
up/down, OSM access
Remote Control Power on/off, input select, volume, mute,
wide, display, off-timer, OSM
control, cursor, pointer, zoom, auto, select
OSM Picture - Contrast, brightness, sharpness, color,
tint, color temperature, white
balance, picture mode, noise reduction, gamma, low tone
and color tune
Audio - bass, treble, balance and audio input
Image Adjust - aspect ratio mode, vertical position,
horizontal position,
vertical height, horizontal width, fine picture, picture
adjust, auto picture
Option 1 OSM on/off, BNC Input, D-sub Input, RGB select,
HD select, Input Skip, All Reset
Option 2 Pwr. Management, Cinema Mode, Long Life Mode,
Gray Level
Option 3 Timer, Pwr. On mode, Control Lock, IR Remote,
Loop Out, ID Number Video Wall
Advanced OSM, Language, Color System, Source Information |
|
Power Requirements |
120V 50/60 Hz |
|
Power Consumption |
540W Typical, 6.7 Amp Maximum |
|
Plug and Play |
DDC1, DDC2B (RGB3 is DDC2B only) |
|
Dimensions (WxHxD) w/o base |
1470 x 880 x 119 mm, 57.9 x 34.6 x 4.7 inches |
|
Warranty |
1
Year Parts & Labor Standard |
|
Environmental Considerations |
Operating Temperature 32 - 104 degrees F (0 - 40 degrees
C)
Operating Humidity 20 - 80%
Operating Altitude 0 - 9180 feet (0 - 2800m)
Storage Temperature 14 - 122 degrees F (-10 - 50 degrees
C)
Storage Humidity 10 - 90%
Storage Altitude 0 to 9840 feet (0 - 3000m) |
|
Regulatory |
FCC Class A, UL1950, CSA950 |
|
HD Video Signal Compatibility |
480p 480i, 525p, 525i, 540p, 625p, 625i, 720p,1035i, 1080i |
|
Capsulated Color Filter |
Yes |
|
Video Signal Compatibility |
PAL, SECAM, 3.58/4.43 NTSC |
|
Accucrimson |
Yes |
|
Front Filter Type |
AR
- Anti reflection |
|
Standby Power |
0.9W |
|
Manufacturer
Homepage: www.necvisualsystems.com |
|
