NEC PlasmaSync 84VP4 84 inch HDTV Plasma tv Video Wall Display
No Longer Available
Replaced by
NEC 84VP5
|
|
NEC PlasmaSync 84vp4 84 inch Plasma
Video Wall |
|

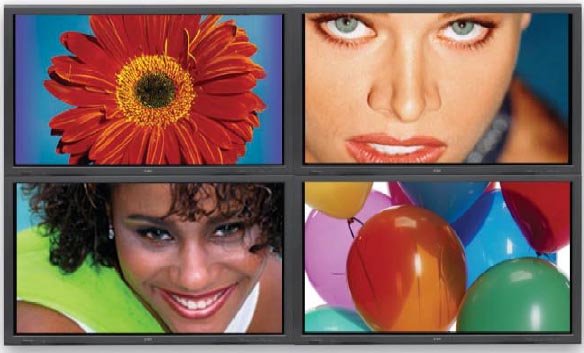

OVERVIEW - nec plasma 84VP4 84 inch plasma Video Wall
NEC has bundled four 42VP4’s and the required wall
mount for a huge video wall with a display area of nearly 3000 square inches! That is
a lot of viewing power. Add impact by running one source over the
entire 84” display to capture your audience’s attention. Or, supply
critical meeting room schedules from your internal database, flight
information from a second source all while world and local news
stories are running. With the 84VP4’s sophisticated timer/source
programmability feature, the ability to control and customize your
presentation is endless. With broad source compatibility from video
to HD to RGB and the signal loop-out capability, sources can easily
be looped from one monitor to the next for a customized
presentation. The 84VP4 has an outstanding image quality of
1706x960 native resolution and a viewing angle up to 160°. You can
be sure the message is seen and understood. An Auto ID feature
allows for easy matrix setup and the added sophisticated video
signal processing delivers super bright images, pure reds and
saturated colors. A sleek new design with an ingenious cable
management system makes it the perfect choice for hotel lobbies,
retail environments, tradeshow exhibits and large venue
applications. |
SPECIFICATIONS - NEC Plasma 84VP4 HDTV Plasma Video Wall
|
Model Number |
PX-84VP4 |
|
Diagonal Screen Size |
84" |
|
Screen Aspect Ratio |
16:9 |
|
Active Screen Area |
1842 mm x 1036 mm |
|
Native Pixel Resolution |
1706 vertical dots x 960 horizontal rows |
|
Pixel Pitch |
1.08 mm square |
|
Capsulated Color Filter |
Yes |
|
Front Filter Type AR |
Anti-reflective or AG - Anti-glare |
|
Output color |
256 RGB levels, 16.7 million colors |
|
Viewing Angle |
160
degrees |
|
Horizontal Frequency Range |
15.5 to 110.0 kHz auto, step scan |
|
Vertical Frequency Range |
50 to120 Hz auto, step scan |
|
PC Signal Compatibility |
VGA 640x480 @ 60,72,75,85,100, 120 Hz
SVGA 800x600 @ 56, 60, 72,75,85,100,120 Hz
XGA 1024x768 @ 60,70,75, 85, 100 Hz
SXGA 1280x1024 @ 60, 75, 85, 100 Hz
UXGA 1600x1200 @ 60, 65, 70, 75, 85 Hz
WideVGA 848x480, 852 x 480 @ 60 Hz
WideXGA 1360 x 765 @60 Hz |
|
Macintosh Compatibility |
640x480, 832x624, 1024x768, 1152x870 |
|
Video Signal Compatibility |
PAL, SECAM, 3.58/4.43 NTSC |
|
HD Video Signal Compatibility |
480p,
480i, 525p, 525i, 540p, 625p, 625i, 720p,1035i, 1080i |
|
Input Terminals |
RGB 1 (analog) 15-pin mini D-sub
RGB 2 (analog) 5 BNC (RGB/HV) (common use with 5BNC Y/Pb/Pr
input, selectable)
RGB 3 (digital) 29-pin DVI (digital only)
Video 1 Composite RCA x 1
Video 2 Composite BNC x 1
Video 3 S-Video 4-Pin DIN
HD Video 1 1 set RCA Component (Y,Pb,Pr/Y,Cb,Cr)
HD Video 2 1 set BNC Component |
|
Audio |
3
sets RCA stereo + external speaker jacks |
|
Audio |
Internal
amplifier, 8W x 2 output power |
|
External Control |
9-pin mini D-Sub, RS232 |
|
User Controls |
Direct Access Power on/off, input selection, volume
up/down, OSM access,
Remote Control Power on/off, input select, volume, mute,
wide, display, off-timer,
OSM control, cursor, pointer, zoom, auto, select
OSM Picture - Contrast, brightness, sharpness, color,
tint, color temperature, white balance, picture mode,
noise reduction, gamma, low tone and color tune
Audio bass, treble, balance and audio input
mage Adjust aspect ratio mode, vertical position,
horizontal position, vertical height,
horizontal width, fine picture, picture adjust, auto
Option 1 OSM on/off, BNC Input, D-sub Input, RGB select,
HD select, Input Skip, All Reset
Option 2 Power Management, Cinema Mode, Long Life Mode
Option 3 Timer, Pwr. On mode, Control Lock, IR Remote,
Loop Out, ID Number, Video Wall, Advanced OSM, Language,
Color System, Source |
|
Information |
|
Plug & Play |
DDC1, DDC2B (RGB3 is DDC2B only) |
|
Dimensions |
(WxHxD)
80.2 x 48.0 x 3.5 inches, 2036 x 1220 x 89mm (without
base) |
|
Weight |
114.0 kg, 251.2 lbs. |
|
Warranty |
1
Year Parts & Labor Standard |
|
Included Accessories |
AC Power Cord, User Manual, Remote Control, Batteries,
Cable Clamps |
|
Manufacturer Homepage:
www.necvisualsystems.com |
|
